Boe NV140FHM-N49 Matte LED Display FHD Laptop Panel For Lenovo Fru 5D10M42868 1920*1080P IPS
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140FHM-N49 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV140FHM-N49 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.31(W)×173.99(H) Mm |
| Outline (mm): | 315.9×197.57×3 (H×V×D) | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Work Mode: | ADS, Normally Black, Transmissive |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | NV140FHM-N49 LED Display Panel,Matte LED Display FHD Laptop Panel,5D10M42868 LED Display Panel |
||
Product Description

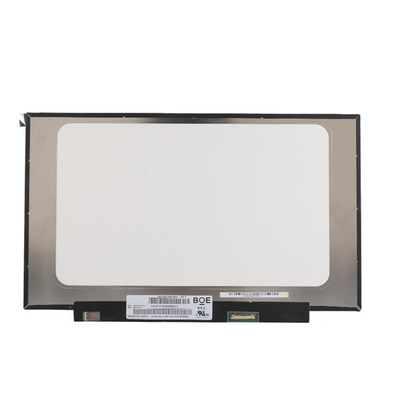

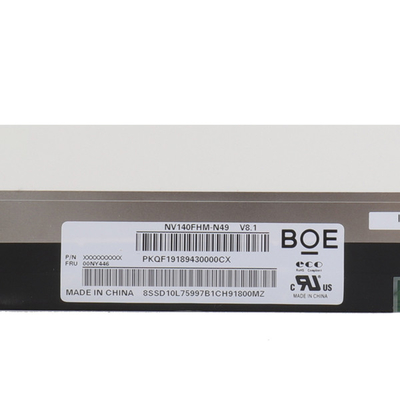

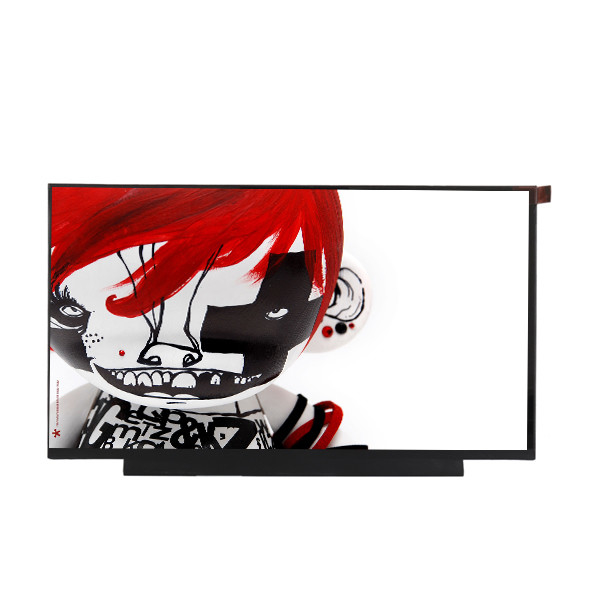

For Boe NV140FHM-N49 For Lenovo fru 5D10M42868 Matte LED Display FHD 1920*1080P IPS 14.0 inch Laptop Panel
NV140FHM-N49 Product details :
| BOE LCD SCREEN NV140FHM-N49 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV140FHM-N49 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 315.9 × 197.57 × 3 (H×V×D) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 9S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| For Boe NV140FHM-N49 For Lenovo fru 5D10M42868 Matte LED Display FHD 1920*1080P IPS 14.0 inch Laptop Panel | |
NV140FHM-N49 Payment and Tax:
1.Alipay is perferred and safety.
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
3.The order will be cancelled beyond 7 business days on unpaid station.
NV140FHM-N49 Shippment & Packing:
NV140FHM-N49 Delivery:
We can send out the items within 7 working days after payment confirmation.
The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
NV140FHM-N49 About guarantee:
1: The product is damaged during the warranty period, we can replace it for free or get a full refund. For some high-value products, the buyer needs to return the package to us.
2: Please do not raise disputes at will and give us negative feedback. Otherwise, you will lose the warranty. If the product has any problems, we will try our best to solve the problem and provide good after-sales service. Please keep in touch with us.
NV140FHM-N49 FAQ:
Q: Can you give me a discount if I need a large quantity of NV140FHM-N49 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NV140FHM-N49 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can I pay my order of NV140FHM-N49 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
