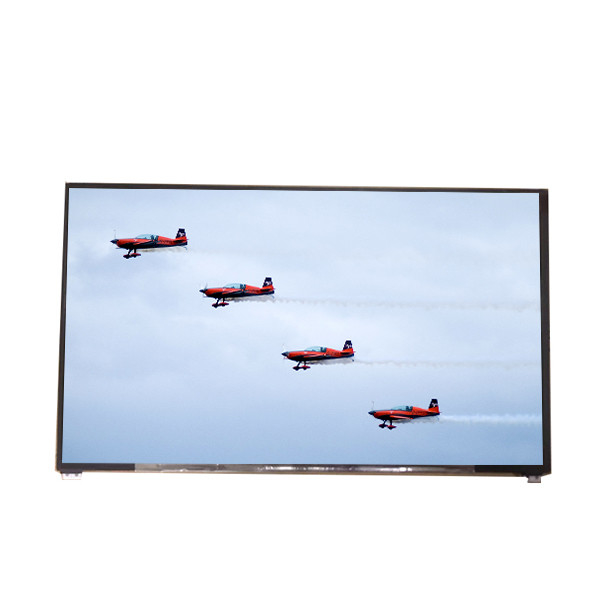

NV140FHM-N47 Laptop Matrix LCD LED Screen Panel 14.0 Inch 1920*1080 For Dell Latitude 7480
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140FHM-N47 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV140FHM-N47 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.31(W)×173.99(H) Mm |
| Outline Dim.: | 320.4(H)×194.65(V) ×5.25(D) Mm | Treatment: | Antiglare, Hard Coating (3H) |
| Response Time: | 30 (Typ.)(Tr+Td) | Operating Mode: | HADS, Normally Black, Transmissive |
| Form Style: | Slim (PCBA Bent, T≤3.0mm) | Designed For: | Laptop |
| High Light: | Dell Latitude Laptop Matrix LCD Panel,NV140FHM-N47 Laptop LED Screen Panel,14.0Inch Laptop LED Screen Panel 1920*1080 |
||
Product Description
NV140FHM-N47 14.0 inch 1920*1080 Laptop LCD LED Screen Replacement Panel For Dell latitude 7480 laptop matrix
NV140FHM-N47 Product details :
| BOE LCD SCREEN NV140FHM-N47 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV140FHM-N47 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 320.4 × 194.65 × 5.25 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Color Depth | 262K 72% NTSC |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NV140FHM-N47 14.0 inch 1920*1080 Laptop LCD LED Screen Replacement Panel For Dell latitude 7480 laptop matrix | |
NV140FHM-N47 NOTE:
Before you ordered , in case of any mistake & trouble in our business , please mail us as below information for double confirming to win this deal together.
•1-->LCD model name in your hand now ,such as : NV140FHM-N47
•2-->Your laptop name ,such as : DV3000 ......
•3-->Send above information to our mail and we will response you within 24 hours for quick and right deal ,thanks !
NV140FHM-N47 Shippment & Packing
NV140FHM-N47 About transportation:
1: The recipient must be the company's full name or full name.
2: If the product ordered is very expensive, you need to get the packaging quickly. It is recommended to use DHL or EMS for transportation.
3: If you choose DHL shipping. Some DHL remote addresses require an additional remote address service fee, approximately $ 35. In some countries, aircraft cannot carry spare batteries. Some motherboards do not have a BIOS battery. You can use the original BIOS battery. I hope you can understand.
4: If a customs clearance fee is incurred, the buyer bears it.
5: After receiving the package, please check the package in time. If the packaging is damaged, save the video evidence. We can ask the logistics company to make up.
NV140FHM-N47 Return:
1.Customer has 7 days to inspect/install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
2.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
NV140FHM-N47 FAQ:
Q: If I place order now,when will you ship the goods of NV140FHM-N47 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Do you accept sample orders of NV140FHM-N47 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NV140FHM-N47 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NV140FHM-N47 ?
A: we will give you tracking number then you can trace your order from website.
