BOE 14.0 Inch EDP Display Screen NV140FHM-N31 1920*1080 For Laptop Replacement
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV140FHM-N31 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV140FHM-N31 | Diagonal Size: | 14.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.31(W)×173.99(H) Mm |
| Outline Size: | 320.4(W)×205.1(H)×3(D) Mm | Response Time: | 30 (Typ.)(Tr+Td) |
| Operating Mode: | ADS, Normally Black, Transmissive | Support Color: | 262K 45% NTSC |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| Highlight: | EDP Display Screen For Laptop Replacement,NV140FHM-N31 EDP Display Screen,BOE 14.0 Inch EDP Display Screen |
||
Product Description

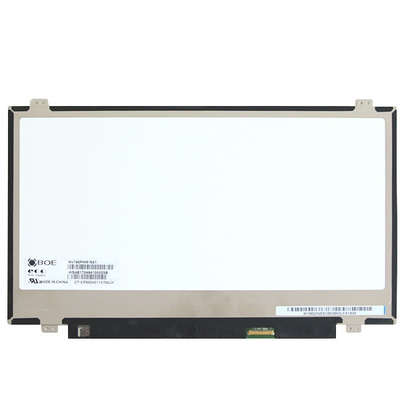

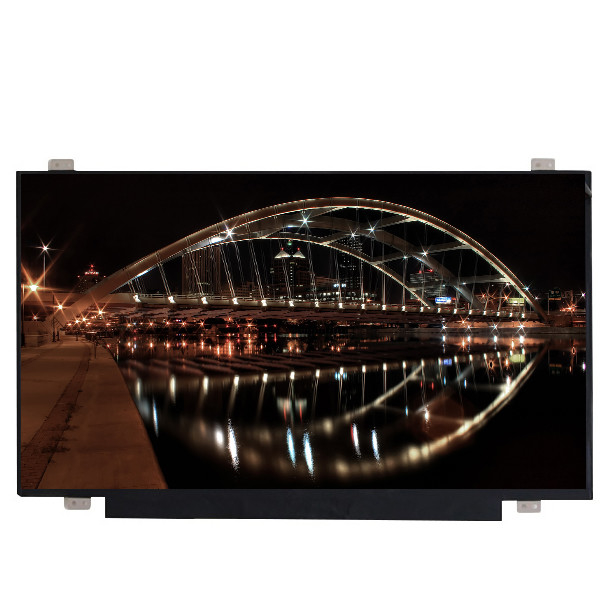

Original BOE 14.0 Inch Display Screen NV140FHM-N31 1920*1080 EDP For Laptop Replacement
NV140FHM-N31 Product details :
| BOE LCD SCREEN NV140FHM-N31 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV140FHM-N31 |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Treatment | Glare (Haze 0%) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 9S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Original BOE 14.0 Inch Display Screen NV140FHM-N31 1920*1080 EDP For Laptop Replacement | |
NV140FHM-N31 Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
NV140FHM-N31 Shippment & Packing
NV140FHM-N31 Delivery:
We can ship the items within 5 business days after payment confirmation.
The shipping way depends on the shipping cost you choose, so choose a suitable shipping way according to your own situation.
If your place is located in a remote area, this may cost some extra costs, and we would like to inform you if the shipping cost changes.
NV140FHM-N31 Returns:
1: A full refund will be given if items are returned in their original condition.
2: Merchandise which is damaged or missing components is not re-fundable.
NV140FHM-N31 FAQ:
Q: How long will I receive my goods NV140FHM-N31 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NV140FHM-N31 ?
A: Of course!If you make a large order, we will give you a discount.
Q: If I place order now,when will you ship the goods of NV140FHM-N31 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can You declare my order of NV140FHM-N31 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
