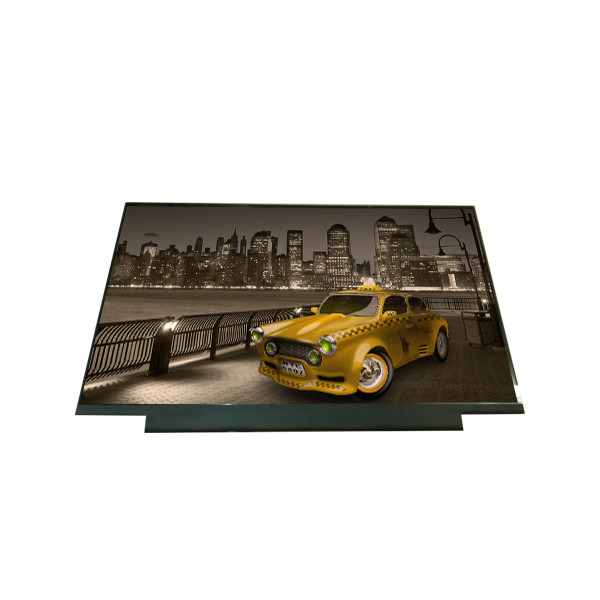

1920*1080 Laptop Lcd Screen Display Replacement NV140FHM-N4H 14.0 Inch 157PPI
Product Details:
Place of Origin: | China |
Brand Name: | BOE |
Model Number: | NV140FHM-N4H |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | NV140FHM-N4H | Diagonal Size: | 14.0" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 157PPI | Active Area: | 309.31(W)×173.99(H) Mm |
Outline Size: | 315.81(W)×197.59(H) ×3(D) Mm | Brightness: | 220 Cd/m² (Typ.) |
Contrast Ratio: | 700:1 (Typ.) (TM) | Lamp Type: | 8S4P WLED , 15K Hours , With LED Driver |
Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Application: | Laptop |
High Light: | WLED Laptop Lcd Screen Display Replacement,Laptop Lcd Screen Display NV140FHM-N4H,157PPI Laptop Lcd Screen Display |
Product Description
14.0 inch 1920*1080 laptop lcd screen Display replacement NV140FHM-N4H
NV140FHM-N4H Product details :
BOE LCD SCREEN NV140FHM-N4H | |
---|---|
Manufacturer | BOE |
Model Name | NV140FHM-N4H |
Screen Size | 14.0 inch |
Screen Type | LCM , a-Si TFT-LCD |
Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 309.31 × 173.99 (H×V) |
Outline(mm) | 315.81 × 197.59 × 3 (H×V×D) |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 220 cd/m² (Typ.) |
Contrast Ratio | 700 : 1 (Min.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Response | 30 (Typ.)(G to G) ms |
Good View at | Symmetry |
Work Mode | ADS, Normally Black, Transmissive |
Color Depth | 262K 45% NTSC |
Backlight | 8S4P WLED , 15K hours , With LED Driver |
Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |
Signal Type | eDP (2 Lanes) , 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
14.0 inch 1920*1080 laptop lcd screen Display replacement NV140FHM-N4H |
NV140FHM-N4H Berfore you order :
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model number and photos of your original screen;
Usually the led panel we send will be a compatible model number, it might not exactly the same as model of your original screen .But we can make sure it will fit for the model 100%.
All the item will be tested before shipment, adhesive tape is not included. If you need one, please leave a message during the order;
NV140FHM-N4H Shippment & Packing
NV140FHM-N4H Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
- To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
- To the USA, UK and Australia: 7-18 business days
- To Russia: 25-60 business days due to Russia post is very slow
- For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
NV140FHM-N4H After service:
We can accept a return of 5 days without reason, and promise a 90 day warranty forthis item is one ofand the shipping cost of the return must be offered by the buyer.
Such as man-made factors, natural disasters have not caused any harm to our warranty. For example: improper installed, nick, bad tube touch, energy, etc. store sale of posted merchandise fragile warranty labels, such as warranty labels in the warranty period to be torn. Disconnection or loss will be deemed to be giving the warranty, and we will not accept any liability. Attention, please!
NV140FHM-N4H FAQ:
Q: How long will I receive my goods NV140FHM-N4H ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NV140FHM-N4H ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of NV140FHM-N4H ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
