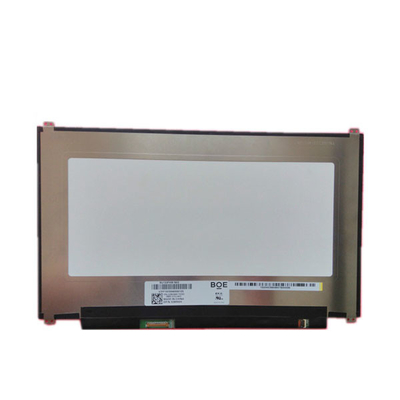

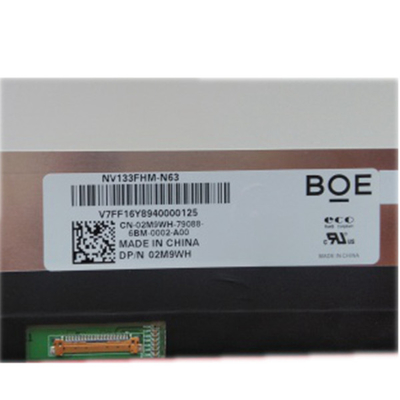

BOE NV133FHM-N63 1920x1080 FHD IPS Panel 13.3 inch Slim Led Laptop Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV133FHM-N63 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV133FHM-N63 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.76(W)×165.24(H) Mm |
| Outline(mm): | 305.35(W)×193.45(H)×2.85(D) | Work Mode: | ADS, Normally Black, Transmissive |
| Response: | 30 (Typ.)(Tr+Td) Ms | Backlight: | 11S4P WLED , 15K Hours , With LED Driver |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop / Medical Imaging |
| Highlight: | Laptop LCD Screen,Laptop LCD Monitor,laptop screen replacement |
||
Product Description
BOE NV133FHM-N63 1920x1080 FHD IPS Panel 13.3 inch Slim Led Laptop Screen
NV133FHM-N63 Product details :
| BOE LCD SCREEN NV133FHM-N63 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV133FHM-N63 |
| Screen Size | 13.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 166PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.76 × 165.24 (H×V) |
| Outline(mm) | 305.35 × 193.45 × 2.85 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 72% NTSC |
| Backlight | 11S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop / Medical Imaging |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.3 , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| BOE NV133FHM-N63 1920x1080 FHD IPS Panel 13.3 inch Slim Led Laptop Screen | |
NV133FHM-N63 ATTENTION:
We recommend removal of your old screen prior to ordering.Please provide your LCD model and laptop model before purchasing.We need to reconfirm whether you purchase the correct model.
Compatible model will be sent! Maybe not the same model as in the title but they are 100% compatible!If you need an exact model, please contact us before purchasing.
Please confirm whether your LCD screen can be separated from the front cover plate of the notebook. If it can be separated, you can purchase a single LCD screen. If it cannot be separated, you need to purchase a LCD screen assembly with front cover.To avoid purchasing the wrong products, please confirm again whether you need a single LCD screen or an assembly.
NV133FHM-N63 Shippment & Packing
NV133FHM-N63 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item as soon as possible after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
For faster delivery,please contact us for express details.
2.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.
NV133FHM-N63 Warranty:
All products are guaranteed for half a year. Artificial damage is not covered by the warranty. All products have special warranty labels. Please do not damage the labels. Without warranty labels, no warranty can be provided.
NV133FHM-N63 FAQ:
Q: How long will I receive my goods NV133FHM-N63 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can You declare my order of NV133FHM-N63 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can I pay my order of NV133FHM-N63 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
