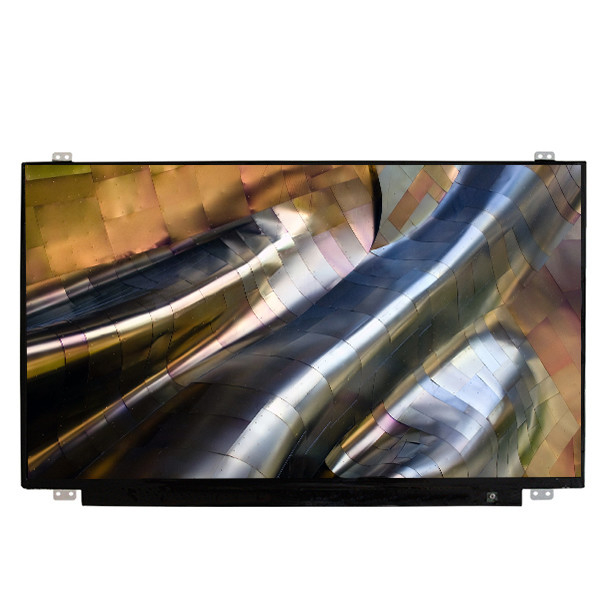

Name: 13.3 Inch Slim 30pins FHD IPS 1920*1080 Laptop LCD Screen NV133FHM-N62 Display
Brand: Shenzhen Yongsheng Innovation Technology Co., Ltd
SKU: NV133FHM-N62
Availability: InStock

Brand Name:	BOE
Model Number:	NV133FHM-N62
MOQ:	1 pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model P/N:

NV133FHM-N62

Diagonal Size:

13.3"

Resolution:

1920(RGB)×1080, FHD 166PPI

Active Area:

293.76(W)×165.24(H) Mm

Outline Size:

300.26(W)×187.45(H) ×2.5(D) Mm

Viewing Angle:

85/85/85/85 (Typ.)(CR≥10)

Display Mode:

ADS, Normally Black, Transmissive

Response Time:

30 (Typ.)(Tr+Td)

Shape Style:

Slim (PCBA Flat, T≤3.2mm)

Application:

Laptop

Supply Ability:

100000 Unit/Units per Month

Highlight:

Laptop LCD Panel

Laptop Screen Monitor

Laptop LCD Display

Product Description

13.3 Inch Slim 30pins FHD IPS 1920*1080 Laptop LCD Screen NV133FHM-N62 Display

NV133FHM-N62 Product details :

BOE LCD SCREEN NV133FHM-N62
Manufacturer	BOE
Model Name	NV133FHM-N62
Screen Size	13.3 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	1920(RGB)×1080 (FHD) 166PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	293.76 × 165.24 (H×V)
Outline(mm)	300.26 × 187.45 × 2.5 (H×V×D)
Treatment	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Min.) (TM)
Viewing Angle	85/85/85/85 (Typ.)(CR≥10)
Response	30 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Color Depth	262K 72% NTSC
Backlight	9S4P WLED , 15K hours , With LED Driver
Outline Shape	Slim (PCBA Flat, T≤3.2mm)
Used for	Laptop
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (2 Lanes) , 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
13.3 Inch Slim 30pins FHD IPS 1920*1080 Laptop LCD Screen NV133FHM-N62 Display

NV133FHM-N62 Product line:

Laptop lcd and led screen:from 4.5 inch to 18.4 inch

1.Size:8.9",10.1",10.2",11.1",11.6",12.1",13.1,13.3",14.0",14.1" ,15.0",15.4",15.6",16. 0",17.0",17.3",18.4"and so on.

2. Resolution:WSVGA,WXGA,WXGAHD,XGA,WXGA+,WXGA++

3. Backlight:LED,1CCFL,2CCFL

NV133FHM-N62 Shippment & Packing

13.3 Inch Slim 30pins FHD IPS 1920*1080 Laptop LCD Screen NV133FHM-N62 Display 0

NV133FHM-N62 Returns:

1: A full refund will be given if items are returned in their original condition.

2: Merchandise which is damaged or missing components is not re-fundable.

NV133FHM-N62 Other Policies:

1: We are not responsible for any custom duty or import tax.

2: All emails will be answered within 24 hours. If you don' t receive our reply,please kindly re-sent your email and we will reply to you .

NV133FHM-N62 FAQ:

Q: Can I pay my order of NV133FHM-N62 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How long is the warranty ?

A: We offer 90days warranty .

Q: If I place order now,when will you ship the goods of NV133FHM-N62 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: How long will I receive my goods NV133FHM-N62 ?

A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
