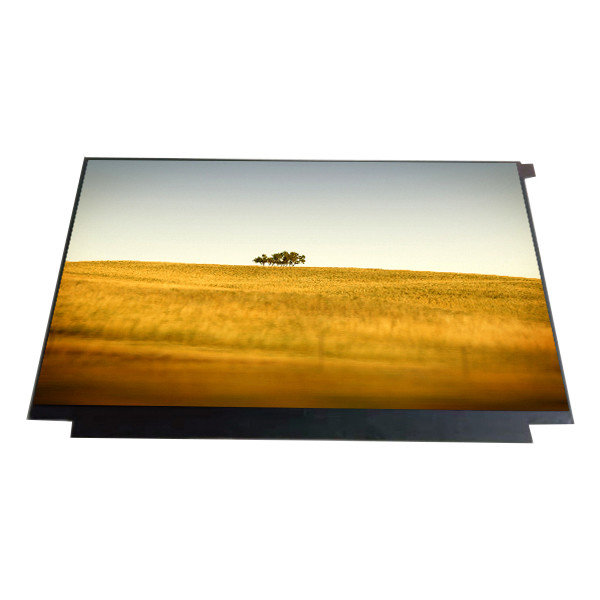

13.3 inch original laptop display panel NV133FHM-N61 for Dell Inspiron 13 5368 laptop screen
Product Details:
Place of Origin: | China |
Brand Name: | BOE |
Model Number: | NV133FHM-N61 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Original packaging/conventional packaging box |
Delivery Time: | 7 Days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 100000 Unit/Units per Month |
Detail Information |
|||
Model P/N: | NV133FHM-N61 | Diagonal Size: | 13.3" |
---|---|---|---|
Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.76(W)×165.24(H) Mm |
Outline Size: | 300.26(W)×187.45(H) ×2.45(D) Mm | Brightness: | 300 Cd/m² (Typ.) |
Contrast Ratio: | 800:1 (Typ.) (TM) | Lamp Type: | 9S4P WLED , 15K Hours , With LED Driver |
Shape Style: | Slim (PCBA Flat, T≤3.2mm) | Application: | Laptop |
High Light: | Laptop LCD Panel,Laptop Screen Monitor,Laptop LCD Display |
Product Description
13.3 inch original laptop display panel NV133FHM-N61 for Dell Inspiron 13 5368 laptop screen
NV133FHM-N61 Product details :
BOE LCD SCREEN NV133FHM-N61 | |
---|---|
Manufacturer | BOE |
Model Name | NV133FHM-N61 |
Screen Size | 13.3 inch |
Screen Type | LCM , a-Si TFT-LCD |
Pixel Number | 1920(RGB)×1080 (FHD) 166PPI |
Arrangement | RGB Vertical Stripe |
Active Area(mm) | 293.76 × 165.24 (H×V) |
Outline(mm) | 300.26 × 187.45 × 2.45 (H×V×D) |
Treatment | Antiglare |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Min.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
Response | 30 (Typ.)(G to G) ms |
Good View at | Symmetry |
Work Mode | ADS, Normally Black, Transmissive |
Color Depth | 262K 72% NTSC |
Backlight | 9S4P WLED , 15K hours , With LED Driver |
Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
Used for | Laptop |
Refresh Rate | 60Hz |
Touchscreen | Without |

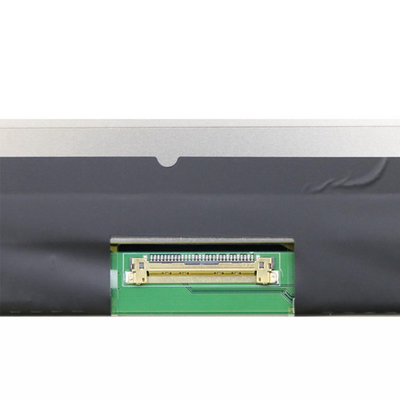

Signal Type | eDP (2 Lanes) , 30 pins Connector |
Voltage Supply | 3.3V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
13.3 inch original laptop display panel NV133FHM-N61 for Dell Inspiron 13 5368 laptop screen |
NV133FHM-N61 Hello friends, before you order:
Please check your model and screen size and part number again. If you are not sure about the compatibility of this item, please send us the specific model and photo of your original screen;
Usually, the LED panel we send will be a compatible model, which may not be exactly the same as the model of your original screen or inconsistent with the advertising picture in the product, but we can ensure that it is suitable for 100% model.
All items are tested before shipment, excluding tape. If you need a specific model, please leave a message when ordering.
NV133FHM-N61 Payment:
1: We accept Alipay, PayPal, Western Union, TT here
2: All major credit cards are accepted through secure payment proces- sor ESCROW
3: Please make sure you read the entire description and agree to the transaction before buying
NV133FHM-N61 Shippment & Packing
NV133FHM-N61 Return and Warranty:
a.Customer has 7 days to inspect install the product upon delivery. Please report any damage or dead-on-arrial (DOA) during the period.
b.Customer may exchange for same exact product within 90-day, when it is determined defects. When exchanging for a different product, customer is considered to conduct two separate transactions, a return and a purchase.
NV133FHM-N61 FAQ:
Q: How long will I receive my goods NV133FHM-N61 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of NV133FHM-N61 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Do you accept sample orders of NV133FHM-N61 ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90days warranty .
