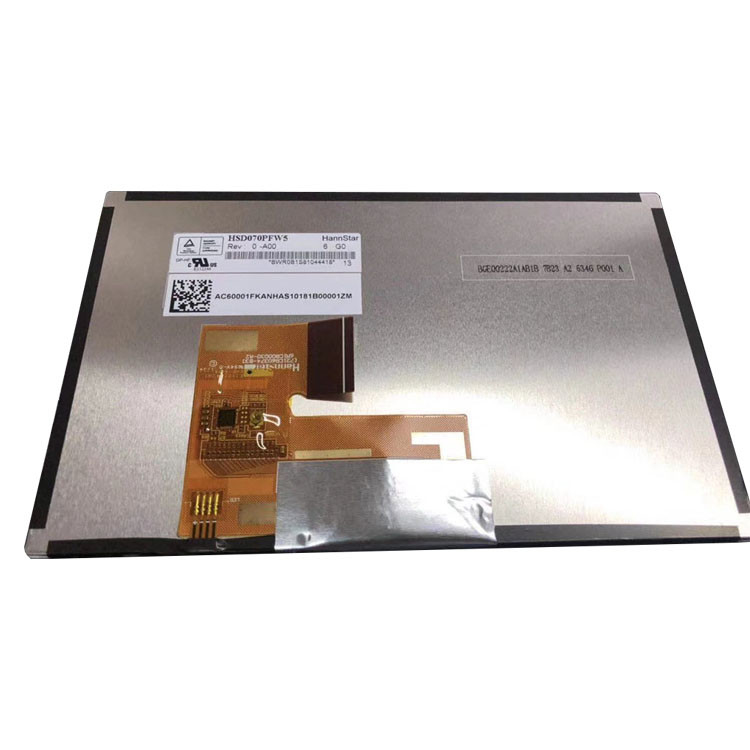

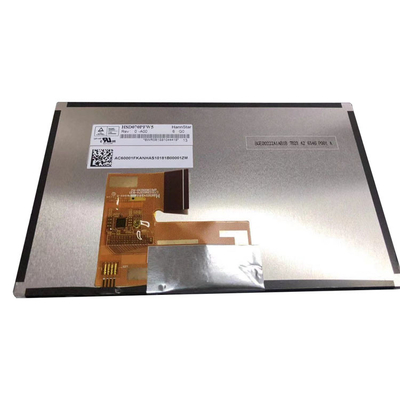

Original HannStar 7.0 inch HSD070PFW5-A00 IPS LCD Display Module
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070PFW5-A00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070PFW5-A00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 169PPI | Active Area: | 153.6(W)×90(H) Mm |
| Outline Size: | 161.16(W)×100.97(H) ×5.04(D) Mm | Brightness: | 550 Cd/m² (Typ.) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Display Mode: | IPS Pro, Normally Black, Transmissive |
| Panel Weight: | 75.0/85.0g (Typ./Max.) | Application: | Pad & Tablet |
Product Description
Original HannStar 7.0 inch HSD070PFW5-A00 IPS LCD Display Module
HSD070PFW5-A00 Product details :
| HannStar LCD Screen HSD070PFW5-A00 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD070PFW5-A00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 169PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 153.6(W)×90(H) mm |
| Outline Size | 161.16(W)×100.97(H) ×5.04(D) mm |
| Surface | Hard coating |
| Brightness | 550 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 13/15 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 50% NTSC |
| Lamp Type | 3S7P WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 75.0/85.0g (Typ./Max.) |
| Application | Pad & Tablet |
| Signal Interface | MIPI (4 data lanes) , 40 pins Connector |
| Input Voltage | 1.8/3.3/10.7/17/-10V (Typ.)(VDD1/VDD2/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |
| Original HannStar 7.0 inch HSD070PFW5-A00 IPS LCD Display Module | |
HSD070PFW5-A00 Payment:
We accept alipay here.
All major credit cards are accepted through secure payment processor ESCROW.
We also accept T/T, Western Union, Moneygram.
HSD070PFW5-A00 Shippment & Packing
HSD070PFW5-A00 Shipping and Delivery Time:
1.We ship worldwide by DHL,UPS,FedEx,EMS,TNTE-Packet,HK Post,SG Post,China Post etc.
2.We guarantee to ship out within 2 working days after payment confirmation(except Holiday).
3.We only ship to confirmed order address.Your order address MUST MATCH your shipping address.
4.If you haven't received your shipment within 30 days after payment,please contact us.
We will track the shipment and get back to you as soon as possible.
HSD070PFW5-A00 Reminder:
Russian Friend Pay Attention Please !!!
Please fill in receiver's full name in the order due to new policy of Russian customs,
otherwise you probably won't receive package finally .
We are not responsible for nondelivery caused by that client don't provide
enough information when making order.
HSD070PFW5-A00 FAQ:
Q: Can I pay my order of HSD070PFW5-A00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: If I place order now,when will you ship the goods of HSD070PFW5-A00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of HSD070PFW5-A00 ?
A: we will give you tracking number then you can trace your order from website.
Q: Can you give me a discount if I need a large quantity of HSD070PFW5-A00 ?
A: Of course!If you make a large order, we will give you a discount.
