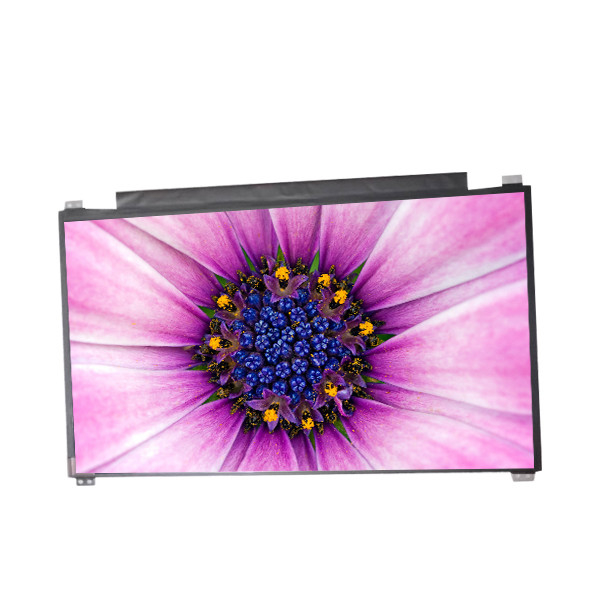

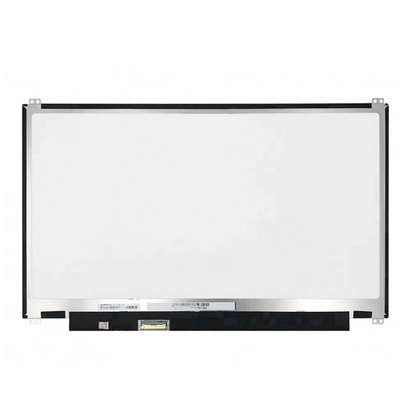

13.3 inch Original laptop LCD display screen For NV133FHM-N44 30 PIN LCD Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV133FHM-N44 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV133FHM-N44 | Diagonal Size: | 13.3" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 166PPI | Active Area: | 293.76(W)×165.24(H) Mm |
| Outline Size: | 305.35(W)×193.45(H)×3.2(D) Mm | Luminance: | 300 Cd/m² (Typ.) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Work Mode: | ADS, Normally Black, Transmissive |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| Highlight: | Laptop LCD Panel,Laptop Screen Monitor,Laptop LCD Display |
||
Product Description
13.3 inch Original laptop LCD display screen For NV133FHM-N44 30 PIN LCD Panel
NV133FHM-N44 Product details :
| BOE LCD SCREEN NV133FHM-N44 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV133FHM-N44 |
| Screen Size | 13.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 166PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.76 × 165.24 (H×V) |
| Outline(mm) | 305.35 × 193.45 × 3.2 (H×V×D) |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 11S4P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| 13.3 inch Original laptop LCD display screen For NV133FHM-N44 30 PIN LCD Panel | |
NV133FHM-N44 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
NV133FHM-N44 Shippment & Packing
NV133FHM-N44 Shipment Details:
1: Please carefully confirm your address after placing an order. We will send the product to you 24 hours after receiving the payment.
2: Items shipped from China by airmail: Arrive in most countries within 15-30 business days
3: If you do not receive the goods within 45 days, please contact us. And give us 3 business days to check the packages that are not delivered and the reasons. If this is our problem, we will refund your money.
NV133FHM-N44 Warranty:
1.We will provide 90 days warranty.
2.Buyers are only responsible for the return shipping fees for warranty items. (In most cases, buyers will only have to return the problem components rather than the entire package.)
3.Before returning items, please make sure you get to our return address, and write“gift”on the delivery sheet. Please use regular postal service and give us the tracking number. Once we receive the items, we will repair them of exchange them asap.
NV133FHM-N44 FAQ:
Q: Can I pay my order of NV133FHM-N44 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NV133FHM-N44 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of NV133FHM-N44 ?
A: We accept T/T , Paypal , western union .
Q: Do you accept sample orders of NV133FHM-N44 ?
A: Of course!sample order is welcome !
