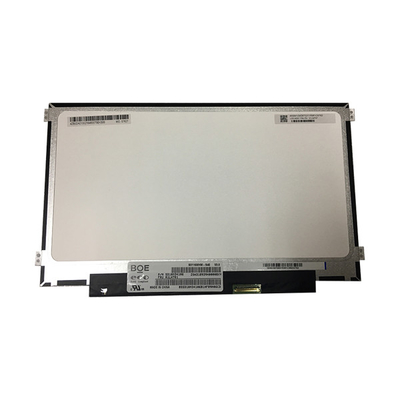

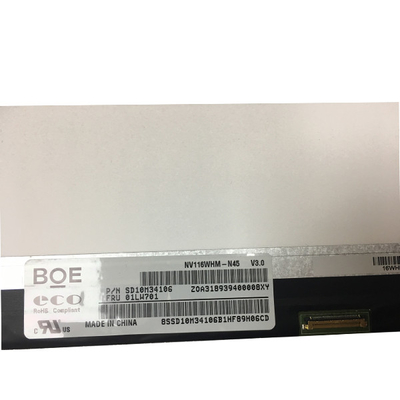

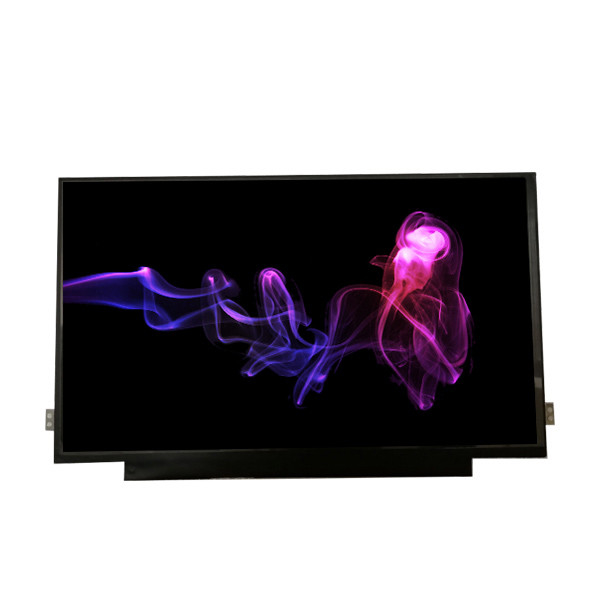

NV116WHM-N45 IPS Matte 30pin 11.6 inch led screen for HP Pavilion X360
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NV116WHM-N45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NV116WHM-N45 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 135PPI | Active Area: | 256.125(W)×144(H) Mm |
| Outline(mm): | 278×168×3 (H×V×D) | Luminance: | 250 Cd/m² (Typ.) |
| Contrast Ratio: | 800 : 1 (Typ.) (TM) | Response: | 30 (Typ.)(Tr+Td) Ms |
| Outline Shape: | Slim (PCBA Flat, T≤3.2mm) | Used For: | Laptop |
| High Light: | Laptop LCD Panel,Laptop Screen Monitor,Laptop LCD Display |
||
Product Description
NV116WHM-N45 IPS Matte 30pin 11.6 inch led screen for HP Pavilion X360
NV116WHM-N45 Product details :
| BOE LCD SCREEN NV116WHM-N45 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NV116WHM-N45 |
| Screen Size | 11.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 135PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 256.125 × 144 (H×V) |
| Outline(mm) | 278 × 168 × 3 (H×V×D) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Min.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 50% NTSC |
| Backlight | 8S3P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NV116WHM-N45 IPS Matte 30pin 11.6 inch led screen for HP Pavilion X360 | |
