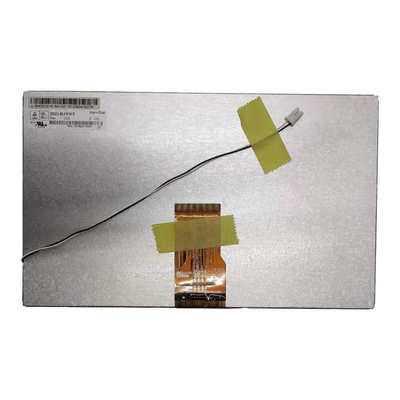

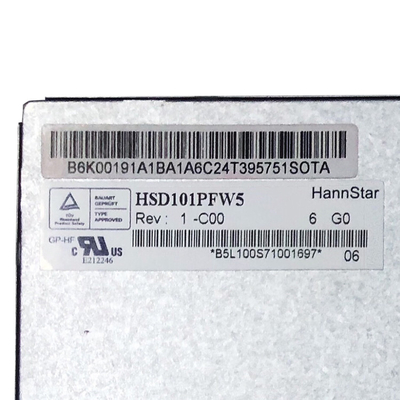

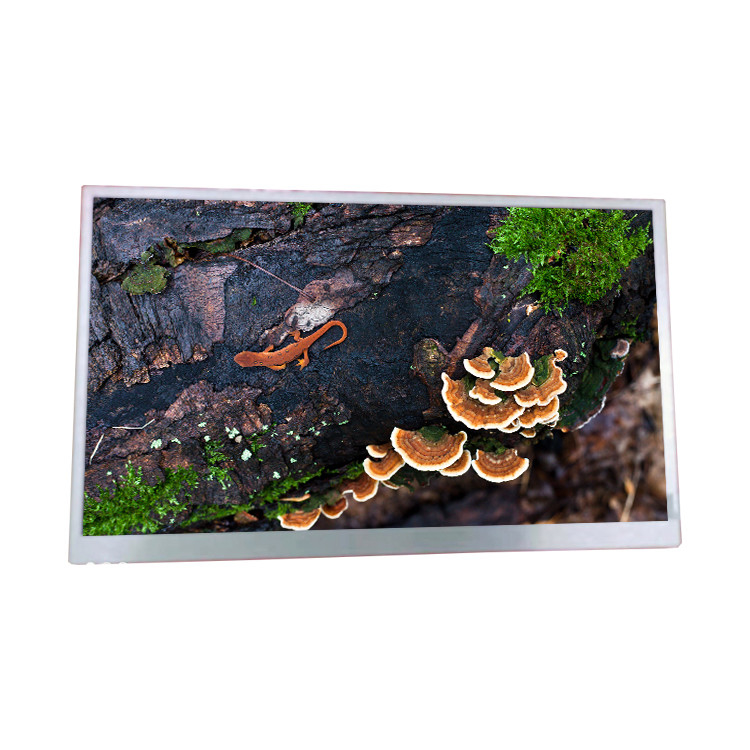

Hannstar HSD101PFW5-C00 LVDS 1024*600 10.1 inch IPS TFT LCD module screen
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101PFW5-C00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD101PFW5-C00 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600, WSVGA 117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Bezel Opening: | 226.0(W)×128.5(H) Mm | Outline Dim.: | 235(H)×143(V) ×5.6(D) Mm |
| Luminance: | 500 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Weight: | 285g (Typ.) | Designed For: | Automotive Display |
Product Description
Hannstar HSD101PFW5-C00 LVDS 1024*600 10.1 inch IPS TFT LCD module screen
HSD101PFW5-C00 Product details :
| HannStar LCD Screen HSD101PFW5-C00 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD101PFW5-C00 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×600, WSVGA 117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 226.0(W)×128.5(H) mm |
| Outline Dim. | 235(H)×143(V) ×5.6(D) mm |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/70/80 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K/16.7M 45% NTSC |
| Light Source | WLED [6S7P] , 20K hours , W/O Driver |
| Weight | 285g (Typ.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |

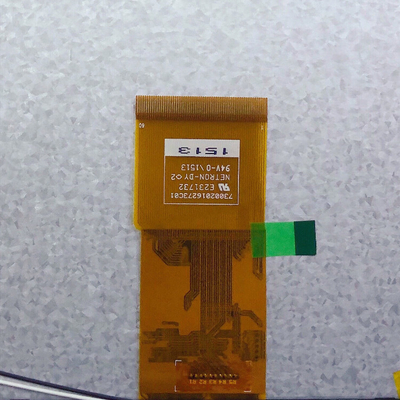

| Interface Type | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| Power Supply | 3.3/8.9/15.0/-7.0V (Typ.)(VDD/AVDD/VGH/VHL) |
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 85 °C |
| Hannstar HSD101PFW5-C00 LVDS 1024*600 10.1 inch IPS TFT LCD module screen | |
HSD101PFW5-C00 Features:
1.Highest quality touch LCD screen replacement parts
2.Reasonable and competitive price.
3.It is used to repair faulty screen, Touch Screen problems, dead pixels, cracked Touch screens, broken etc.
4.Each assembly is tested before shipping and is 100% working;Quality control: All are tested before delivery,No any Dark Spots,Color Point,Deal Pixels.
HSD101PFW5-C00 Shippment & Packing
HSD101PFW5-C00 About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
Contact Us:
1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)
2. Working Hours: Monday to Saturday
3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.
4. Bulk order is acceptable, lower prices will be offered to you for bulk order.
HSD101PFW5-C00 FAQ:
Q: If I place order now,when will you ship the goods of HSD101PFW5-C00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of HSD101PFW5-C00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of HSD101PFW5-C00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90days warranty .
