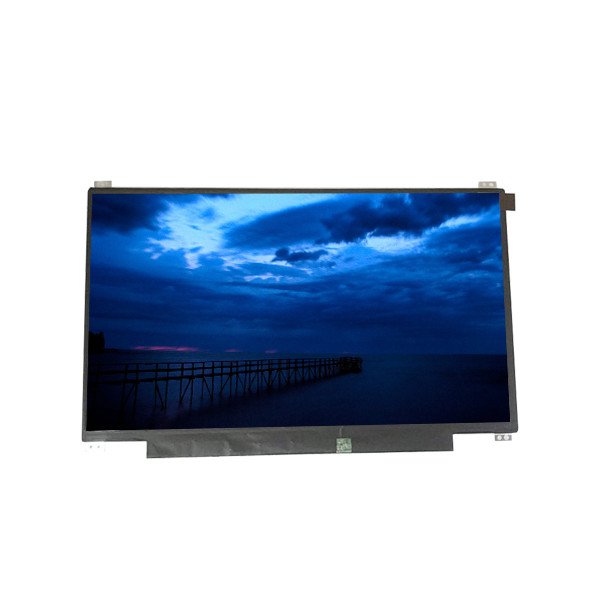

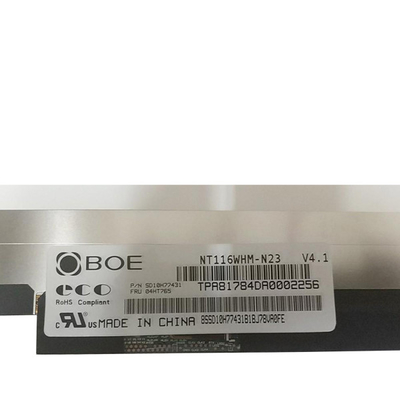

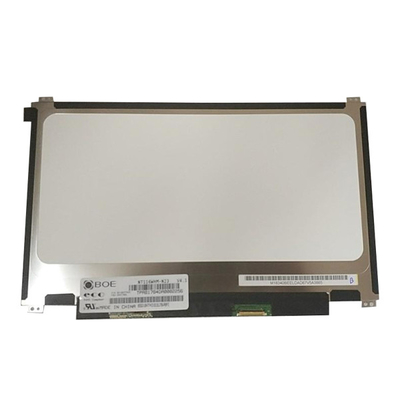

NT116WHM-N23 Laptop LCD Screen 11.6 inch 60HZ EDP 30 pins Slim TN Glossy For BOE
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | NT116WHM-N23 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NT116WHM-N23 | Diagonal Size: | 11.6" |
|---|---|---|---|
| Resolution: | 1366(RGB)×768, WXGA 135PPI | Active Area: | 256.125(W)×144(H) Mm |
| Outline Dim.: | 268(H)×172.98(V) ×3(D) Mm | View Direction: | 6 O'clock |
| Response Time: | 12 (Typ.)(Tr+Td) | Operating Mode: | TN, Normally White, Transmissive |
| Form Style: | Slim (PCBA Flat, T≤3.2mm) | Designed For: | Laptop |
| Highlight: | LCD Screen Panel,Laptop LCD Screen Assembly,Laptop LCD Screen Display |
||
Product Description
NT116WHM-N23 Laptop LCD Screen 11.6 inch 60HZ EDP 30 pins Slim TN Glossy For BOE
NT116WHM-N23 Product details :
| BOE LCD SCREEN NT116WHM-N23 | |
|---|---|
| Manufacturer | BOE |
| Model Name | NT116WHM-N23 |
| Screen Size | 11.6 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1366(RGB)×768 (WXGA) 135PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 256.125 × 144 (H×V) |
| Outline(mm) | 268 × 172.98 × 3 (H×V×D) |
| Treatment | Glare (Haze 0%), Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) |
| Response | 12(Typ.)(Tr+Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | 8S3P WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (1 Lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| NT116WHM-N23 Laptop LCD Screen 11.6 inch 60HZ EDP 30 pins Slim TN Glossy For BOE | |
NT116WHM-N23 Terms of Service:
Thank you for reviewing the important information, I will tell you the important steps:
The screen of the machine is inside the device, you need to disassemble the machine, and then send me the screen picture (this is very important, please pay attention),And tell me the length, width, and thickness of the screen.
NT116WHM-N23 Shippment & Packing
NT116WHM-N23 Shipment:
1.We ship to worldwide, per order have a tracking number.
2.Item will be shipped within 3 business days after we received a verified payment.
3.SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary,particularly during the holiday season, such as Christmas season and weeks before Chinese New Year Holiday, most warehouses will be full that it will cause delayed to deliver.
4.If you have not received your items within 30 days after payment for postage delivery (like china post), please let us know. We will further track the parcel and reply you ASAP. Our goal is customer satisfaction!
5.We support most shipping ways: DHL. UPS,FEDEX, EMS, HK Post,SG Post, China Post etc.
NT116WHM-N23 Guarantee and Refund:
1. All items are in good condition.
2. If the item is defective ( rarely happen ), please inform us within 3 days after you receive it and return it within warranty period ( 12 months )
3. Returned items should have original packaging and in good condition if possible. Please provide us the tracking number and the returning reason.
NT116WHM-N23 FAQ:
Q: Can You declare my order of NT116WHM-N23 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NT116WHM-N23 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of NT116WHM-N23 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Do you accept sample orders of NT116WHM-N23 ?
A: Of course!sample order is welcome !
