LCD Screen Display Panel

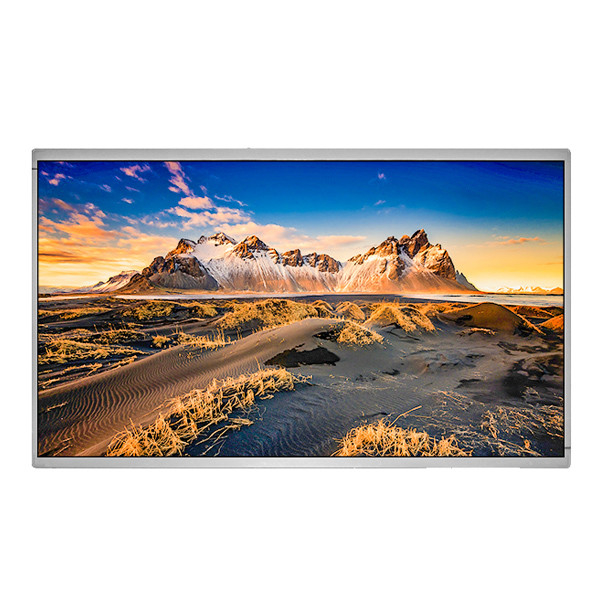

BOE 23.8 Inch TTF LCD Module Display MV238QUM-N20 30 Pins Lvds LCD Screen Display

All Category

Floor Standing Digital Signage

BOE 23.8 Inch TTF LCD Module Display MV238QUM-N20 30 Pins Lvds LCD Screen Display

Brand Name:	BOE
Model Number:	MV238QUM-N20
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model P/N:

MV238QUM-N20

Diagonal Size:

23.8"

Resolution:

3840(RGB)×2160, UHD 185PPI

Active Area:

527.04(W)×296.46(H) Mm

Bezel Opening:

530.2(W)×299.6(H) Mm

Outline Size:

545(W)×323.4(H) ×13(D) Mm

Brightness:

300 Cd/m² (Typ.)

Contrast Ratio:

1000:1 (Typ.) (TM)

Weight:

2.30Kgs (Typ.)

Application:

Desktop Monitor / Medical Imaging

Supply Ability:

100000 Unit/Units per Month

Product Description

BOE 23.8 Inch TTF LCD Module Display MV238QUM-N20 30 Pins Lvds LCD Screen Display

MV238QUM-N20 Product details :

BOE LCD SCREEN MV238QUM-N20
Manufacturer	BOE
Model Name	MV238QUM-N20
Screen Size	23.8 inch
Screen Type	LCM , a-Si TFT-LCD
Pixel Number	3840(RGB)×2160 (UHD) 185PPI
Arrangement	RGB Vertical Stripe
Active Area(mm)	527.04 × 296.46 (H×V)
Outline(mm)	545 × 323.4 × 13 (H×V×D)
Bezel Area(mm)	530.2 × 299.6 (H×V)
Treatment	Antiglare (Haze 25%), Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Response	14 (Typ.)(G to G) ms
Good View at	Symmetry
Work Mode	ADS, Normally Black, Transmissive
Color Depth	1.07B 99% sRGB
Backlight	14S4P WLED , 30K hours , No Driver
Mass	2.30Kgs (Typ.)
Used for	Desktop Monitor / Medical Imaging
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	eDP (4 Lanes) , HBR2 (5.4G/lane) , 30 pins Connector
Voltage Supply	10.0V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
BOE 23.8 Inch TTF LCD Module Display MV238QUM-N20 30 Pins Lvds LCD Screen Display

MV238QUM-N20 About Us:

We provide the good product with the best price,we support wholesale/Drop Shipping Order

1.For Drop Shipping order, please remark" drop shipping order", we will prioritize it.

2.For Wholesale/Drop Shipping orders if you have any ideas about the price or package,please contact us n advance ,we will give you the best service to eta your demands.

MV238QUM-N20 Shippment & Packing

BOE 23.8 Inch TTF LCD Module Display MV238QUM-N20 30 Pins Lvds LCD Screen Display 0

MV238QUM-N20 Shipping and Delivery Time:

1.We ship worldwide by DHL,UPS,FedEx,EMS,TNTE-Packet,HK Post,SG Post,China Post etc.

2.We guarantee to ship out within 2 working days after payment confirmation(except Holiday).

3.We only ship to confrmed order address.Your order address MUST MATCH your shipping address.

4.If you haven't received your shipment within 30 days after payment,please contact us.

We will track the shipment and get back to you as soon as possible.

MV238QUM-N20 Delivery time:

--via DHL, Fedex, UPS: 3-7 working days

--via EMS: 7-15 working days

--via Air Mail or Parcel: 10-30 working days (sometimes longer)

NOTICE: delivery time should not be considered as an aspect of your feedback.

MV238QUM-N20 FAQ:

Q: If I place order now,when will you ship the goods of MV238QUM-N20 ?

A: The order will be shipped within 2-3 working days after received your payment.

Q: Can I pay my order of MV238QUM-N20 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: How can I trace my order of MV238QUM-N20 ?

A: we will give you tracking number then you can trace your order from website.

Q: Do you accept sample orders of MV238QUM-N20 ?

A: Of course!sample order is welcome !
