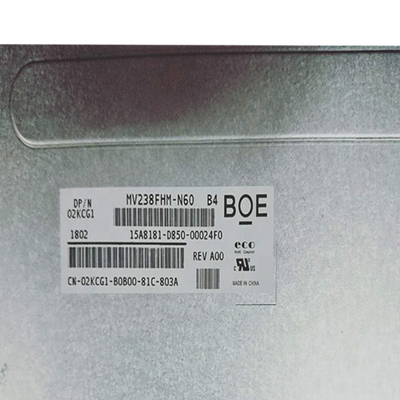

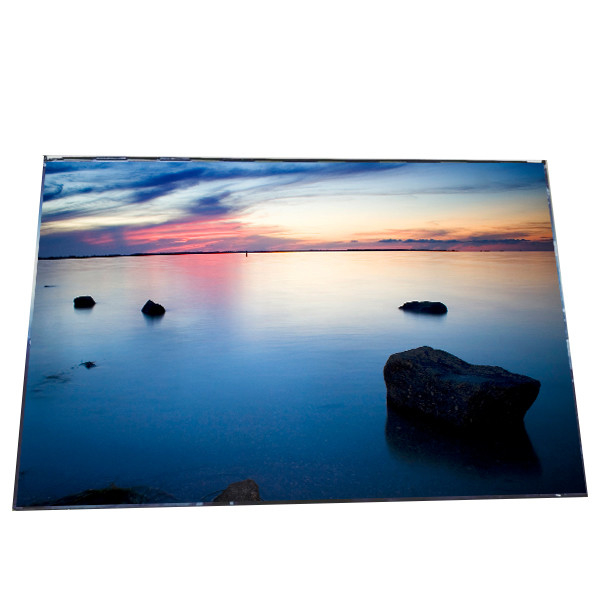

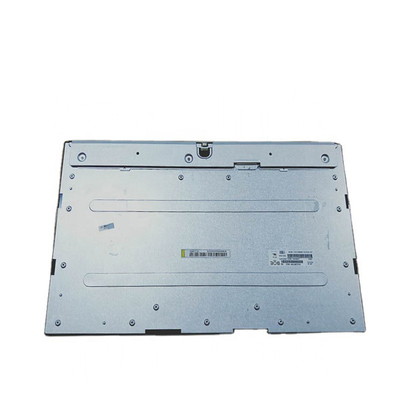

Original in stock 23.8 inch 1920*1080 MV238FHM-N60 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | BOE |
| Model Number: | MV238FHM-N60 |
| Document: | MV238FHM-N60.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | MV238FHM-N60 | Diagonal Size: | 23.8" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1080, FHD 92PPI | Active Area: | 527.04(W)×296.46(H) Mm |
| Outline(mm): | 535 × 313 × 12.5 (H×V×D) | Treatment: | Antiglare (Haze 25%), Hard Coating (3H) |
| Luminance: | 250 Cd/m² (Typ.) | Response: | 14 (Typ.)(G To G) Ms |
| Mass: | 2.20Kgs (Typ.) | Used For: | Desktop Monitor / Industrial |
Product Description
Original in stock 23.8 inch 1920*1080 MV238FHM-N60 LCD Display Screen
MV238FHM-N60 Product details :
| BOE LCD SCREEN MV238FHM-N60 | |
|---|---|
| Manufacturer | BOE |
| Model Name | MV238FHM-N60 |
| Screen Size | 23.8 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 92PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 527.04 × 296.46 (H×V) |
| Outline(mm) | 535 × 313 × 12 (H×V×D) |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Backlight | 20S4P WLED , 30K hours , No Driver |
| Mass | 2.20Kgs (Typ.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Original in stock 23.8 inch 1920*1080 MV238FHM-N60 LCD Display Screen | |
MV238FHM-N60 Disclaimer:
The displayed panel parameters are all entered by Panhong store according to the specification, and the errors have been reduced as much as possible, but the correctness of the parameters cannot be guaranteed. Please refer to the specification!
MV238FHM-N60 Shippment & Packing
MV238FHM-N60 International Orders:
1.Buyer is responsible for all customs fees and import taxes.
2.International orders may take several weeks longer than expected to arrive due to delays in customs processing.
3.And to send to Japan or South Korea via Fedex or DHL , we to declare actual price,the South Korea recipient needs to provide a customs clearance serial number, for example: "P987654321123" . Please provide us with the customs clearance serial number.
MV238FHM-N60 Guarantee:
Quality assurance is always. If you are disappointed in goods, they will tell us to deliver the goods within 7 days. These items must be returned in the original country of return / change. You have transportation on you We understand your possible disappointment, please contact us before beginning any conflict or abandoning any neutral / negative recovery. Let's build on each buyer's foundation, and we will strive to solve any problem in a good business way. You satisfaction will always be our first priority.
MV238FHM-N60 FAQ:
Q: Can I pay my goods MV238FHM-N60 by credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How do you ship my goods MV238FHM-N60 ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
Q: How to make payment for MV238FHM-N60 ?
A: We accept T/T , Paypal , western union .
Q: Can You declare my order of MV238FHM-N60 at a very low value ?
A: Yes , we can . pls inform us before shipping .
