LCD Screen Display Panel

HannStar 10.1 inch lcd display panel 1280*800 LVDS HSD101PWW1-G10 lcd Screen module

All Category

Floor Standing Digital Signage

HannStar 10.1 inch lcd display panel 1280*800 LVDS HSD101PWW1-G10 lcd Screen module

Brand Name:	HannStar
Model Number:	HSD101PWW1-G10
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model P/N:

HSD101PWW1-G10

Diagonal Size:

10.1"

Resolution:

1280(RGB)×800, WXGA 149PPI

Active Area:

216.96(W)×135.6(H) Mm

Outline Size:

227.42(W)×147.69(H) ×4.25(D) Mm

Brightness:

350 Cd/m² (Typ.)

Contrast Ratio:

800:1 (Typ.) (TM)

Response Time:

25 (Typ.)(Tr+Td)

Weight:

135g (Max.)

Application:

Pad & Tablet

Supply Ability:

100000 Unit/Units per Month

Product Description

HannStar 10.1 inch lcd display panel 1280*800 LVDS HSD101PWW1-G10 lcd Screen module

HSD101PWW1-G10 Product details :

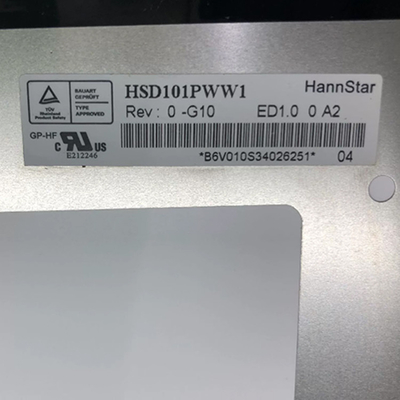

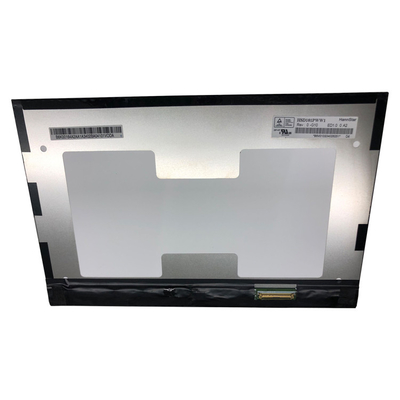

HannStar LCD Screen HSD101PWW1-G10
Panel Brand	HannStar
Model P/N	HSD101PWW1-G10
Diagonal Size	10.1"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×800, WXGA 149PPI
Pixel Format	RGB Vertical Stripe
Active Area	216.96(W)×135.6(H) mm
Outline Size	227.42(W)×147.69(H) ×4.25(D) mm
Surface	Hard coating
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	IPS Pro, Normally Black, Transmissive
Best View on	Symmetry
Response Time	25 (Typ.)(Tr+Td)
Display Colors	262K 45% NTSC
Lamp Type	WLED , 10K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Weight	135g (Max.)
Application	Pad & Tablet
Signal Interface	LVDS (1 ch, 6-bit) , 40 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
HannStar 10.1 inch lcd display panel 1280*800 LVDS HSD101PWW1-G10 lcd Screen module

HSD101PWW1-G10 Payment :

1. Payment is safe and easy, you can pay me online use credit card (VISA or Mastercard) In ALI ..

2.You could make payment via above payment methods, payment must be made in 3 days once you placing orders

3. ALI will verify your payment within 24 hours once payment completed, and we will process your order once the process time is over

4.The refund caused by order cancellation.Refund agreement or Mediation will be process instantly and it may take 7-10 working days to reach your account

HSD101PWW1-G10 Shippment & Packing

HannStar 10.1 inch lcd display panel 1280*800 LVDS HSD101PWW1-G10 lcd Screen module 0

HSD101PWW1-G10 Shipping:

1.EMS for Brazil, Russia and Remote areas .

2.SF for Hong Kong, Taiwan, South Korea, Japan, Thailand, Singapore and Malaysia

3. Having logo product can't be sent by FEDEX .

4. The Brazil want to use FEDEX/DHL, need to offer CNPJ / CPF to us !

HSD101PWW1-G10 Contact Us:

1. If there's any problem, please do not hesitate to contact us by message, we will reply you within 1 business day. (Not include public holiday)

2. Working Hours: Monday to Saturday

3. If you don't get response within 1-2 business days, please check your email or My Messages in case your email provider has an overly aggressive spam filter blocking or my emails. Please add us in your contact and email us again.

HSD101PWW1-G10 FAQ:

Q: How can I trace my order of HSD101PWW1-G10 ?

A: we will give you tracking number then you can trace your order form website.

Q: Can I pay my goods HannStar HSD101PWW1-G10 by credit card ?

A: Yes!you can use your credit card through your Paypal account.

Q: Are you manufactory or trade company ?

A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.

Q: Can You declare my order of lcd module HSD101PWW1-G10 at a very low value ?

A: Yes , we can . pls inform us before shipping .
