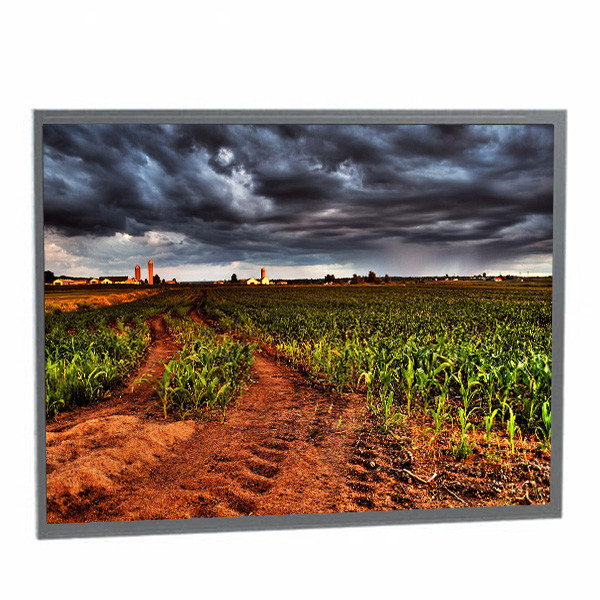

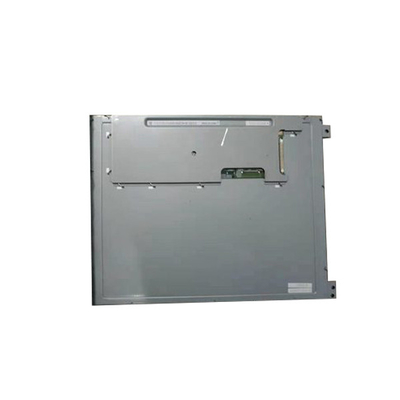

Kyocera 10.4 inch 1024*768 10.4 inch tft lcd screen TCG104XGLPAPNN-AN40 lcd panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG104XGLPAPNN-AN40 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG104XGLPAPNN-AN40 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 230(W)×180.2(H) ×11(D) Mm |
| Brightness: | 1300 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Panel Weight: | 480g (Typ.) | Application: | Industrial / Outdoor High Brightness |
Product Description
Kyocera 10.4 inch 1024*768 10.4 inch tft lcd screen TCG104XGLPAPNN-AN40 lcd panel
TCG104XGLPAPNN-AN40 Product details :
| Kyocera LCD SCREEN TCG104XGLPAPNN-AN40 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG104XGLPAPNN-AN40 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 210.4(W)×157.8(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline Size | 230(W)×180.2(H) ×11(D) mm |
| Surface | Antiglare |
| Brightness | 1300 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 51% NTSC |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 480g (Typ.) |
| Signal Interface | LVDS (1 ch,6/ 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~80 °C ; Storage Temp.: -30 ~ 80 °C |
| Kyocera 10.4 inch 1024*768 10.4 inch tft lcd screen TCG104XGLPAPNN-AN40 lcd panel | |
TCG104XGLPAPNN-AN40 Why directly choose us:
1. All the goods for sale are in stock, we can ship to you within 1-5 working days.
2. We have many different kinds of goods (all in one shop)
And more important, You will get the lowest price and high quality products.
TCG104XGLPAPNN-AN40 Shippment & Packing
TCG104XGLPAPNN-AN40 Shipping:
1.We ship to worldwide, per order have a tracking number.
2.Item will be shipped within 2 business days after we received a verified payment.
3.SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary,particularly during the holiday season, such as Christmas season and weeks before Chinese New Year Holiday, most warehouses will be full that it will cause delayed to deliver.
4.If you have not received your items within 30 days after payment for postage delivery (like china post), please let us know. We will further track the parcel and reply you ASAP. Our goal is customer satisfaction!.
5.We support most shipping ways: DHL. UPS,FEDEX, EMS, HK Post,SG Post, China Post etc.
TCG104XGLPAPNN-AN40 Tariffs and fees:
We do not charge a fee for all customer orders, or even a part of.
When the parts arrive your local customs, if part tariffs, we will not be responsible for any customs duties or import taxes
Standard shipping items using international aviation, ship from Hong Kong needs 7-14 Working days (2-3 weeks) received most of the region.
If you do not have the date of receipt of the items from the 30 working days (5 weeks) survey, please contact us. (Russia United Kingdom. 5 to 9 weeks)
Our Working Time: Monday-Friday, Except legal holidays.
TCG104XGLPAPNN-AN40 FAQ:
Q: If I place order now,when will you ship the goods of TCG104XGLPAPNN-AN40 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods TCG104XGLPAPNN-AN40 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment of TCG104XGLPAPNN-AN40 ?
A: We accept T/T , Paypal , western union .
