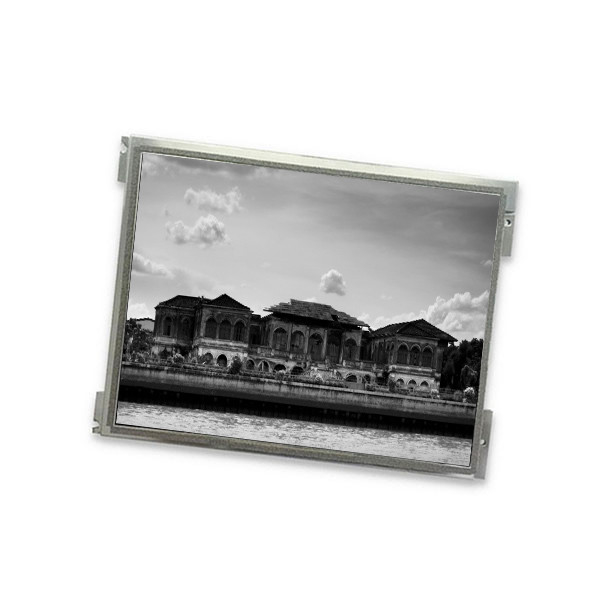

10.4 inch lcd Screen TCG104XGLPAPNN-AN30 1024*768 LVDS lcd display panel for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG104XGLPAPNN-AN30 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG104XGLPAPNN-AN30 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline(mm): | 230 × 180.2 × 11 (H×V×D) |
| Luminance: | 600 Cd/m² (Typ.) | Contrast Ratio: | 700 : 1 (Typ.) (TM) |
| Mass: | 480g (Typ.) | Used For: | Industrial |
Product Description
10.4 inch lcd Screen TCG104XGLPAPNN-AN30 1024*768 LVDS lcd display panel for Industrial
TCG104XGLPAPNN-AN30 Product details :
| Kyocera LCD SCREEN TCG104XGLPAPNN-AN30 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG104XGLPAPNN-AN30 |
| Panel Size | 10.4" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)×768, XGA, 123PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 210.4(W)×157.8(H) mm |
| Bezel Opening | 215.4(W)×161.8(H) mm |
| Outline Size | 230(W)×180.2(H) ×11(D) mm |
| Surface | Antiglare |
| Brightness | 600 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.7M 51% NTSC |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 480g (Typ.) |
| Signal Interface | LVDS (1 ch,6/ 8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~80 °C ; Storage Temp.: -30 ~ 80 °C |
| 10.4 inch lcd Screen TCG104XGLPAPNN-AN30 1024*768 LVDS lcd display panel for Industrial | |
TCG104XGLPAPNN-AN30 Things to note when installing the screen:
1. Before installing the screen, please disconnect the battery of the machine, then install the screen, connect all the cables, and finally re-install the battery of the machine and turn on the machine for testing.
2. When installing other parts of the machine, clean up the debris from the parts to avoid damage to the screen when the machine is assembled.
TCG104XGLPAPNN-AN30 Shippment & Packing
TCG104XGLPAPNN-AN30 Packaging Details:
Product you ordered comes with protective package: Use anti-static bag,anti-shock bubble bag.clean carton box and foam to avoid any damage during international shipping.
TCG104XGLPAPNN-AN30 Return& Refund:
1.Please check the tracking in formation on tracking website.
2.Please contact us by meesage, e-mail, or trade manager.
3. Check the package and item, carefully.
4. Please Note: Men made defects are not guaranteed,such damage after using,water damage and so on.
TCG104XGLPAPNN-AN30 Service hours:
If you have any question, please contact us I will sincerely for your service, ourservice time for the Beijing time:8:00-12: 00; 1: 30-6: 00;But we have 24 hourswill have customer service for you to solve the problem.
TCG104XGLPAPNN-AN30 FAQ:
Q: How long will I receive my goods TCG104XGLPAPNN-AN30 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of TCG104XGLPAPNN-AN30 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of TCG104XGLPAPNN-AN30 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long will I receive my goods TCG104XGLPAPNN-AN30 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
