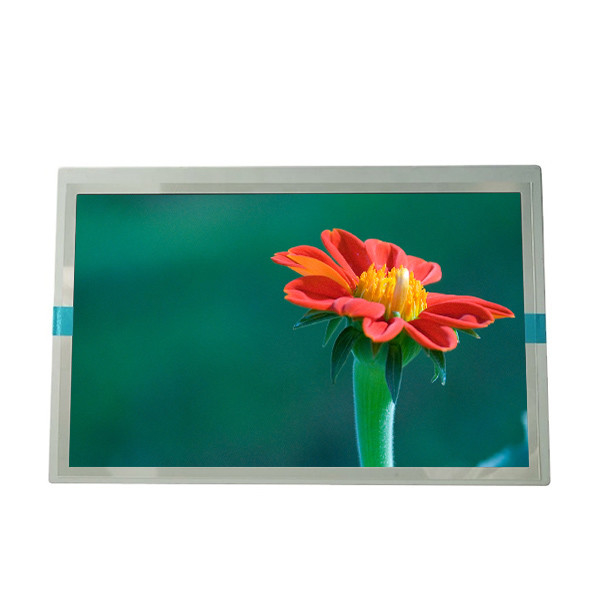

Kyocera 7.0 Inch 800x480 TFT LCD IPS Panel LVDS Display For Outdoor High Brightness TCG070WVLQGPNN-AN40
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG070WVLQGPNN-AN400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG070WVLQGPNN-AN40 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 800(RGB)×480, WVGA 133PPI | Active Area: | 152.4(W)×91.44(H) Mm |
| Bezel Opening: | 154.4(W)×93.4(H) Mm | Outline Size: | 169.8 × 109.7 × 9.7 (H×V×D) |
| Luminance: | 1000 Cd/m² (Typ.) | Contrast Ratio: | 750 : 1 (Typ.) (TM) |
| Mass: | 230g | Used For: | Industrial / Outdoor High Brightness / Automotive Display |
Product Description
Kyocera 7.0 Inch 800x480 TFT LCD IPS Panel LVDS Display For Outdoor High Brightness TCG070WVLQGPNN-AN40
TCG070WVLQGPNN-AN40 Product details :
| Kyocera LCD SCREEN TCG070WVLQGPNN-AN40 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG070WVLQGPNN-AN40 |
| Panel Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.4(W)×93.4(H) mm |
| Outline Size | 169.8(W)×109.7(H) ×9.7(D) mm |
| Surface | Antiglare |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 750:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 50% NTSC |
| Lamp Type | WLED , 70K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 230g |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| Kyocera 7.0 Inch 800x480 TFT LCD IPS Panel LVDS Display For Outdoor High Brightness TCG070WVLQGPNN-AN40 | |
TCG070WVLQGPNN-AN40 Payment:
1.Generally, we accept the following payment methods: credit card;moneybookers;T/T;western union.And our protection only gives the payment ways acceped by ALI platform.
TCG070WVLQGPNN-AN40 Shippment & Packing
TCG070WVLQGPNN-AN40 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc..
TCG070WVLQGPNN-AN40 What should I do after receiving the package?
Friends, when you receive the package, first you need to check whether the outer packaging of the package is intact. If you find that the outer packaging of the package is obviously damaged, please take a picture of the damaged area; then open the package and check The screen inside the package is intact. If the screen is damaged, please take a picture, send it to us, and we will handle the problem for you.
TCG070WVLQGPNN-AN40 FAQ:
Q: If I place order now,when will you ship the goods of TCG070WVLQGPNN-AN40 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of TCG070WVLQGPNN-AN40 ?
A: we will give you tracking number then you can trace your order from website.
Q: Do you accept sample orders of TCG070WVLQGPNN-AN40 ?
A: Of course!sample order is welcome !
Q: Can I pay my order of TCG070WVLQGPNN-AN40 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
