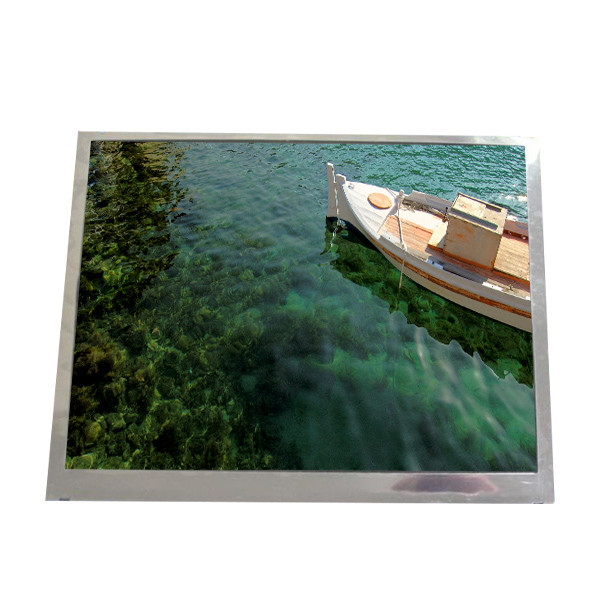

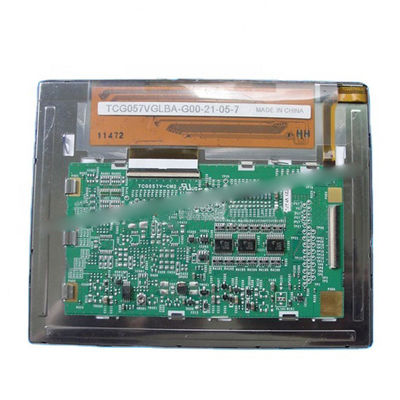

KYOCERA TCG057VGLBA-G00 5.7 inch 640(RGB)×480 lcd TFT display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Kyocera |
| Model Number: | TCG057VGLBA-G00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | TCG057VGLBA-G00 | Diagonal Size: | 5.7" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 141PPI | Active Area: | 115.2(W)×86.4(H) Mm |
| Bezel Opening: | 117.2(W)×88.4(H) Mm | Outline(mm): | 127.2(W)×100.4(H)×6(D) |
| Luminance: | 250 (Typ.)(cd/m²) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Mass: | 110g (Typ.) | Used For: | Industrial |
Product Description
KYOCERA TCG057VGLBA-G00 5.7 inch 640(RGB)×480 lcd TFT display screen
TCG057VGLBA-G00 Product details :
| Kyocera LCD SCREEN TCG057VGLBA-G00 | |
|---|---|
| Panel Brand | Kyocera |
| Panel Model | TCG057VGLBA-G00 |
| Panel Size | 5.7" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 640(RGB)×480 [VGA] 141PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 115.2(H)×86.4(V) mm |
| Bezel Opening | 117.2(W)×88.4(H) mm |
| Outline Size | 127.2(W)×100.4(H) ×6(D) mm |
| Surface | Glare (Haze 0%) |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Display Colors | 262K 52% NTSC |
| Lamp Type | 3 strings WLED , 40K hours , Without Driver |
| Frequency | 55Hz |
| Touch Screen | Without |
| Panel Weight | 110g (Typ.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| KYOCERA TCG057VGLBA-G00 5.7 inch 640(RGB)×480 lcd TFT display screen | |
TCG057VGLBA-G00 Please read the following before placing an order:
Hello friend! Welcome to our shop! Friends, if you don’t know if our screen can fit your machine. Please remove the screen of the reader first, then take a picture of the screen and send it to us,We will send us photos through you to help you determine whether our screen is compatible with your machine. When you contacted us, we did not reply to you in time, please understand. Due to the time difference, we cannot reply you in time.
TCG057VGLBA-G00 Warning:
*Installation guide not included, We are not responsible for any damage caused by installation of this accessory, please be sure you know how to install it before bid,Thank you for your kind understanding!
*We just can guarantee the one you received that will be compatible with your tablet,
*Please DO NOT buy if you do not accept an A+ grade compatible touch screen digitizer with different flex cable numbers as our title/description/photo states is out of supply in the market, thank you!
TCG057VGLBA-G00 Shippment & Packing
TCG057VGLBA-G00 Quality and Guarantee and customs for free:
1. If you have problems for 1 month after you rec eive your item, you can talk with us, we will try our best to offer you the best solution.
2.if you buy the wrong items or you do not want t he item that you bought, you can return it back to us within 3 days, but you have to offer the shippin g cost.
3.we will be the best price to sell you the product, the price does not include customs fees, if the parcel caused by customs costs, you have to pay yourself.
4. If you do not receive the package after deli very, please contact us, we will work with the problem.
TCG057VGLBA-G00 FAQ:
Q: If I place order now,when will you ship the goods of TCG057VGLBA-G00 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of TCG057VGLBA-G00 ?
A: we will give you tracking number then you can trace your order from website.
Q: How to make payment of TCG057VGLBA-G00 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of TCG057VGLBA-G00 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
