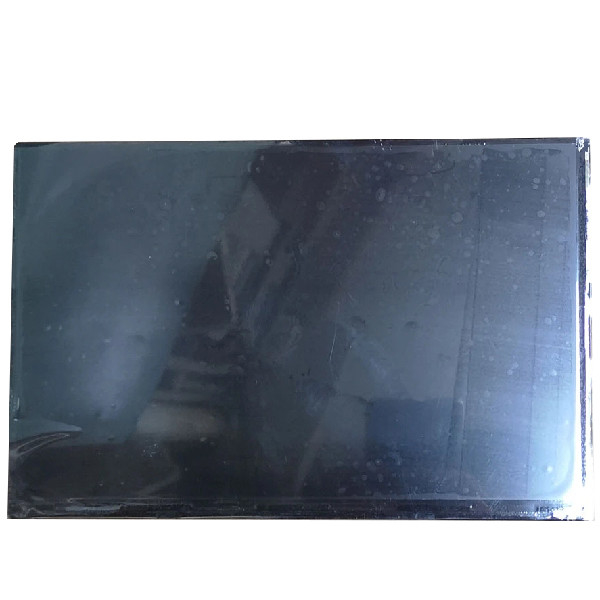

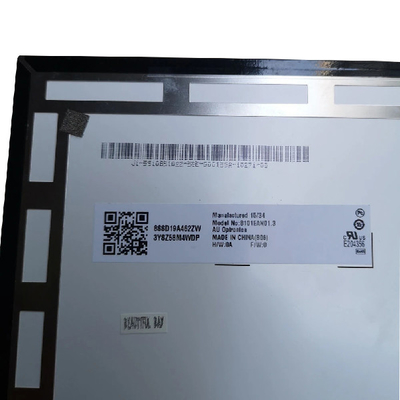

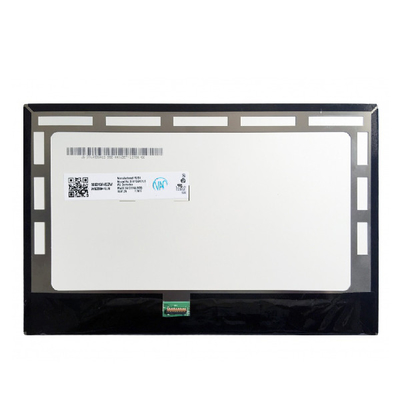

10.1 inch B101EAN01.3 1280*800 LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EAN01.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EAN01.3 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA, 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Outline Size: | 228.6 × 149.2 × 4.4 (H×V×D) Mm | Best View On: | 6 O'clock |
| Response Time: | 30 (Typ.)(Tr+Td) Ms | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Brightness: | 350 Cd/m² (Typ.) | Application: | Pad & Tablet |
Product Description
10.1 inch B101EAN01.2 1208*800 36 pins LCD SCREEN
B101EAN01.3 Product details :
| Brand | AUO |
| Model Name | B101EAN01.3 |
| Diagonal Size | 10.1 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800 (WXGA) 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 216.96 × 135.6 (H×V) mm |
| Outline Dim. | 228.6 × 149.2 × 4.4 (H×V×D) mm |
| Surface | Antiglare |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 800: 1 (Typ.) (transmission) |
| Best angle | 6 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 50% NTSC |
| Backlight type | 6S6P WLED, without driver |
| Screen weight | 20.2g |
| Refresh rate | 60Hz |
| Designed For | Pad & Tablet |
| Touch function | No touch |
| Interface Type | MIPI (4 data lanes) , 39 pins Connector |
| Supply voltage | 3.3/3.3V (Typ.)(VDC/VCCI) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 10.1 inch B101EAN01.3 1280*800 LCD SCREEN | |
B101EAN01.3 Tariffs and fees:
We do not charge a fee for all customer orders, or even a part of.
When the parts arrive your local customs, if part tariffs, we will not be responsible for any customs duties or import taxes
Standard shipping items using international aviation, ship from Hong Kong needs 7-14
Working days (2-3 weeks) received most of the region.
If you do not have the date of receipt of the items from the 30 working days (5 weeks) survey, please contact us. (Russia United Kingdom. 5 to 9 weeks)
Our Working Time: Monday-Friday, Except legal holidays.
B101EAN01.3 Payment & Shipping
1. Payment is safe and easy, you can pay me online use credit card (VISA or Mastercard) In ALI ..
2. We can ship items to all over the world.and we had been shipped to many countries eg: Japan, Thailand, Russia, Ukraine, the United Kingdom, Brazil.
3. Freight fee is cheap, we can ship to you by DHL, UPS, TNT, EMS, China Post Air Mail.
B101EAN01.3 Return Policy
Our Guarantee
You Satisfaction is our # 1 Goal!
100% satisfaction guarantee!
It is our commitment to make sure you are 100% satisfied with you purchase
Nont: shiping by China air mail very solw. If you need shippin the fast HongKong Air mail, only add a few cost :-)
or shipping by DHL / fedex / Ems ..
B101EAN01.3 FAQ:
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Do you accept sample orders of B101EAN01.3 ?
A: Of course!sample order is welcome !
Q: How to make payment of B101EAN01.3 ?
A: We accept T/T , Paypal , western union .
Q: Can I pay my order of B101EAN01.3 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
B101EAN01.3 Shippment & Packing
