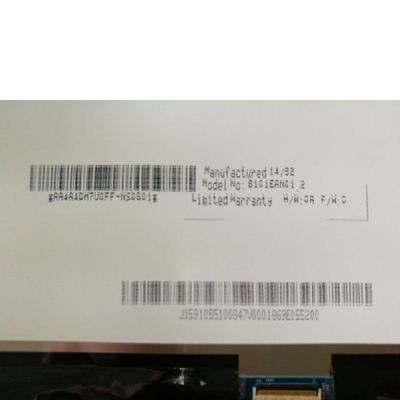

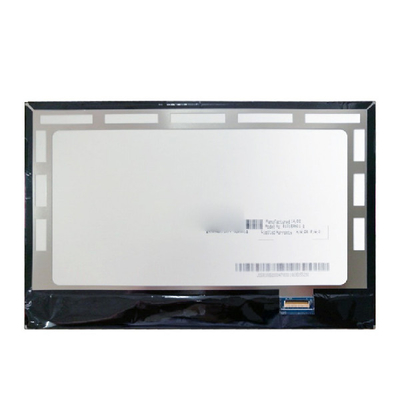

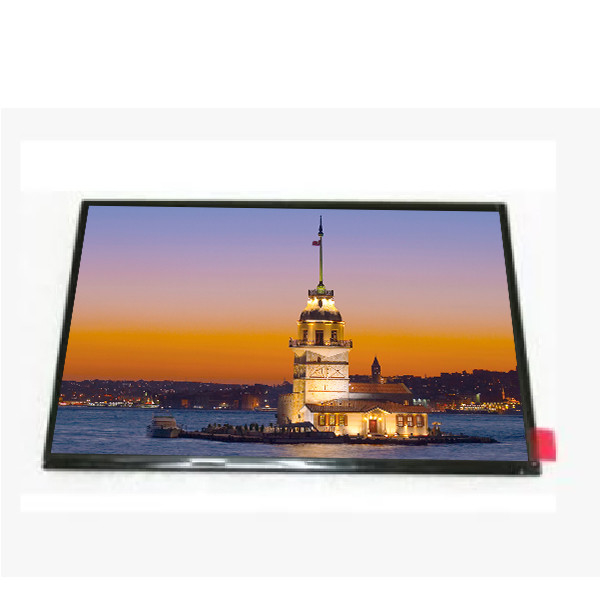

10.1 inch B101EAN01.2 1208*800 36 pins LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101EAN01.2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101EAN01.2 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×800, WXGA, 149PPI | Active Area: | 216.96(W)×135.6(H) Mm |
| Outline Size: | 227.9(W)×147.8(H) ×4.6(D) Mm | Best View On: | 6 O'clock |
| Response Time: | 30 (Typ.)(Tr+Td) Ms | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Brightness: | 350 Cd/m² (Typ.) | Application: | Pad & Tablet |
Product Description
10.1 inch B101EAN01.2 1208*800 36 pins LCD SCREEN
B101EAN01.2 Product details :
| Brand | AUO |
| Model Name | B101EAN01.2 |
| Diagonal Size | 10.1" |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1280(RGB)×800, WXGA, 149PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 216.96(W)×135.6(H) mm |
| Outline(mm) | 227.9(W)×147.8(H) ×4.6(D) mm |
| Surface | Hard coating (2H) |
| Brightness | 350 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Best angle | 6 o'clock |
| Work Mode | TN, normally white display, transmissive |
| Viewing angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Number of | 16.7M, 50% NTSC |
| Backlight type | 6S4P WLED, 15K hours, without driver |
| Screen weight | 145g (Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Used for | Pad & Tablet |
| Signal Type | LVDS (1 ch, 8-bit), 36 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| 10.1 inch B101EAN01.2 1208*800 36 pins LCD SCREEN | |
B101EAN01.2 Tariffs and fees:
We do not charge a fee for all customer orders, or even a part of.
When the parts arrive your local customs, if part tariffs, we will not be responsible for any customs duties or import taxes
Standard shipping items using international aviation, ship from Hong Kong needs 7-14
Working days (2-3 weeks) received most of the region.
If you do not have the date of receipt of the items from the 30 working days (5 weeks) survey, please contact us. (Russia United Kingdom. 5 to 9 weeks)
Our Working Time: Monday-Friday, Except legal holidays.
B101EAN01.2 Delivery:
We can send out the items within 7 working days after payment confirmation.
The shipping way depends on the shipping cost which you choose, so please choose a proper shipping way according to your own situation.
If your place are located in a remote area, it may cost some extra charges, and we would let you know if the shipping cost is changed.
B101EAN01.2 Guarantee:
Quality assurance is always. If you are disappointed in goods, they will tell us to deliver the goods within 7 days. These items must be returned in the original country of return / change. You have transportation on you We understand your possible disappointment, please contact us before beginning any conflict or abandoning any neutral / negative recovery. Let's build on each buyer's foundation, and we will strive to solve any problem in a good business way. You satisfaction will always be our first priority.
B101EAN01.2 FAQ:
Q: Can you give me a discount if I need a large quantity of B101EAN01.2 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can I pay my order of B101EAN01.2 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long will I receive my goods B101EAN01.2 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of B101EAN01.2 ?
A: Of course!sample order is welcome !
B101EAN01.2 Shippment & Packing
