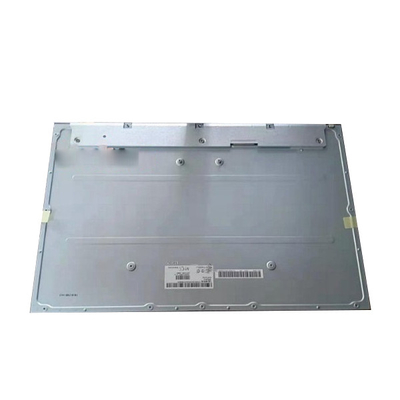

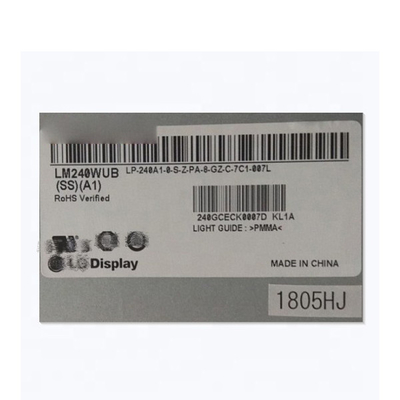

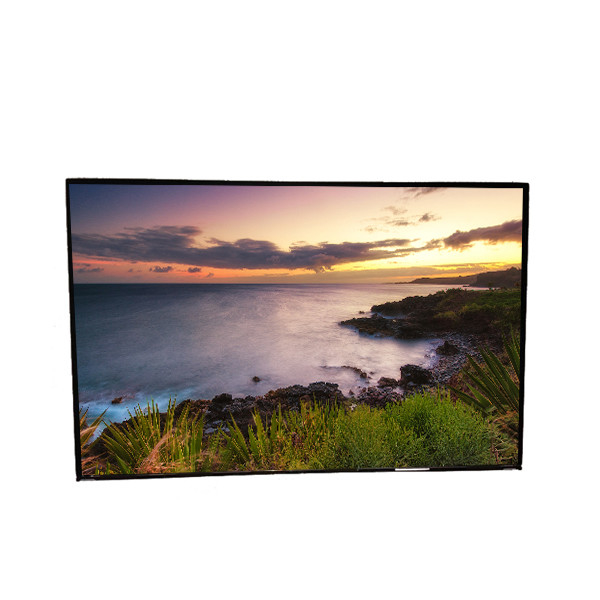

Original in stock 24.0 inch 1920*1200 LM240WUB-SSA1 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LG Display |
| Model Number: | LM240WUB-SSA1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | LM240WUB-SSA1 | Diagonal Size: | 24.0" |
|---|---|---|---|
| Resolution: | 1920(RGB)×1200, WUXGA 94PPI | Active Area: | 518.4(W)×324(H) Mm |
| Outline(mm): | 528.2 × 335.9 × 12.8 (H×V×D) | Luminance: | 350 Cd/m² (Typ.) |
| Contrast Ratio: | 1000 : 1 (Typ.) (TM) | Backlight: | 14S4P WLED , 30K Hours , No Driver |
| Mass: | 2.12/2.22Kgs (Typ./Max.) | Used For: | Desktop Monitor / Industrial |
Product Description
Original in stock 24.0 inch 1920*1200 LM240WUB-SSA1 LCD Display Screen
LM240WUB-SSA1 Product details :
| LG Display LCD Screen LM240WUB-SSA1 | |
|---|---|
| Manufacturer | LG Display |
| Model Name | LM240WUB-SSA1 |
| Screen Size | 24.0 inches |
| Panel type | a-Si TFT-LCD, LCD module; |
| Number of pixels | 1920(RGB)×1200, WUXGA, 94PPI |
| Pixel layout | RGB vertical bar |
| Display area | 518.4(W)×324(H) mm |
| physical dimension | 528.2(W)×335.9(H) ×12.8(D) mm |
| Surface treatment | Matte (Haze 25%), Hard coating (3H) |
| Panel brightness | 350 cd/m2 (Typ.) |
| Contrast | 1000:1 (Typ.) (TM) |
| Viewing angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating mode | IPS, normally black display, transmissive |
| Best perspective | Full view |
| Reaction time | 14 (Typ.)(G to G) |
| Display color | 16.7M, 99% sRGB |
| type of light source | 14S4P WLED, 30K hours, without driver |
| working frequency | working frequency:60Hz |
| Panel weight | 2.12/2.22Kgs (Typ./Max.) |
| Signal interface | Signal interface:LVDS (2 ch, 8-bit), 30 pins, connector |
| Drive screen voltage | 5.0V (Typ.) |
| working environment:Working | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| Original in stock 24.0 inch 1920*1200 LM240WUB-SSA1 LCD Display Screen | |
LM240WUB-SSA1 Addressee:
To avoid placing the wrong order or buying the wrong product, the following are the things you need to read before ordering,
"Please check your machine model in the compatibility list, or indicate whether it is a wide screen or a standard screen.".
Please check the size and resolution of the LCD screen.
Please check the data connector (14 pin, 20 pin, 30 pin (S M L), 40 pin (S M L), 50 pin 60 pin) and position
Please check the physical resolution pixels of the LCD screen or order.
LM240WUB-SSA1 Important:
A specific machine model can have multiple dimensions and resolutions. The machine LCD resolution should not be upgraded or degraded. Before purchasing, you must confirm that the size and resolution of this screen match your machine! Unable to return due to improper installation or incompatibility
LM240WUB-SSA1 Shippment & Packing
LM240WUB-SSA1 Note:
Dear Brazil customers ,
Due to your country customs rule,When you place an order , Please write receiver full name and correct CPF , And we have to declare real price on customs invoice , thanks for your understand!
We have more than 12 years experience on lcd displays filed . Our LCD Display will be tested ok before shipping . So it is very safe for you to do lcd display business with us .
Because Our company have many LCD models, we can't uploaded real product pictures for each model, but we will send you the correct products. If you are worried about product problems, you can contact us before placing an
LM240WUB-SSA1 FAQ:
Q: Do you accept sample orders for LM240WUB-SSA1 ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of LM240WUB-SSA1 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for LM240WUB-SSA1 ?
A: We accept T/T , Paypal , western union .
Q: How can I trace my order of LM240WUB-SSA1 ?
A: we will give you tracking number then you can trace your order from website.
