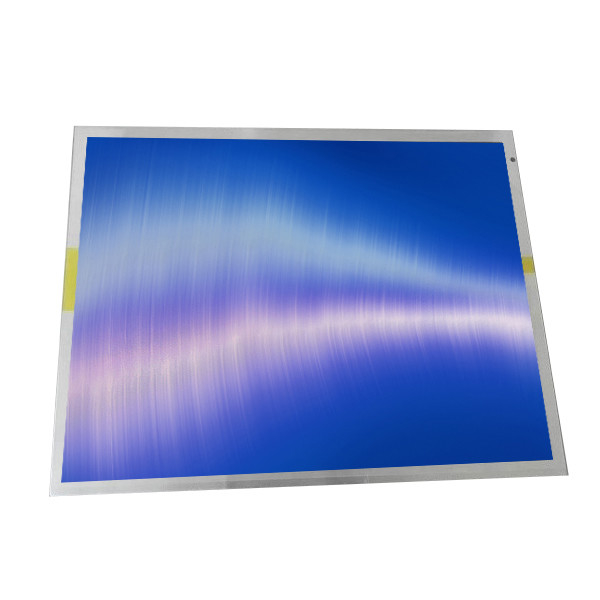

15.0 inch 1024*768 NL10276BC30-34D tft screen lcd display tft lcd screen module tft lcd display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC30-34D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL10276BC30-34D | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline Size: | 326.5(W)×253.5(H) ×12(D) Mm |
| Brightness: | 500 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Panel Weight: | 0.97/1.05Kgs (Typ./Max.) | Application: | Industrial |
Product Description
NL10276BC30-33D Original A+ Grade 15.0 inch LCD Screen Display for Industrial Equipment
NL10276BC30-34D Product details :
| NEC LCD Screen NL10276BC30-34D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC30-34D |
| Screen Size | 15.0 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)*768 XGA 85PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 304.128(H)*228.096(V) mm |
| physical dimension | 326.5(H)*253.5(V) *12(T) mm |
| Open area | 307.4(H)*231.3(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 500 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 16.7M, 50% NTSC |
| type of light source | WLED [6 strings], 70K hours, optional |
| weight | 0.97/1.05Kgs (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -20 ~ 80 °C |
| 15.0 inch 1024*768 NL10276BC30-34D tft screen lcd display tft lcd screen module tft lcd display panel | |
NL10276BC30-34D We Promise to:
1:Only sell the best consumer goods and ensure the highest quality possible.
2:Deliver goods to our customers all over the world with
NL10276BC30-34D Customer Service Policy:
We are more than happy to answer any questions that you have, please contact with
1:Orders processed timely after the payment verification.
2:We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3:If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
4:Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
NL10276BC30-34D Shippment & Packing
NL10276BC30-34D Return & Warranty:
- If the product is defective or not working, please contact us immediately after receiving the product.
- We offer a 30days Money back or replacement (buyer's choice).
- If prove that this product is defective or not working,Please return the product,We will resend a product for you.
- The returned item and all accessories must be in the original (unused) condition.
- Each item is pasted with a warranty label, please do not tear up the label.
- We do this to minimize errors and misunderstanding.
NL10276BC30-34D FAQ:
Q: Do you accept sample orders for NL10276BC30-34D ?
A: Of course!sample order is welcome !
Q: How long will I receive my goods of NL10276BC30-34D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How to make payment for NL10276BC30-34D ?
A: We accept T/T , Paypal , western union .
Q: How do you ship my goods NL10276BC30-34D ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS.
