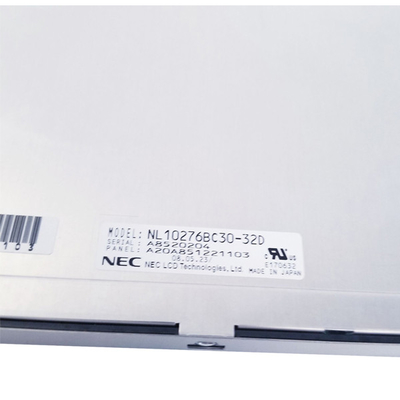

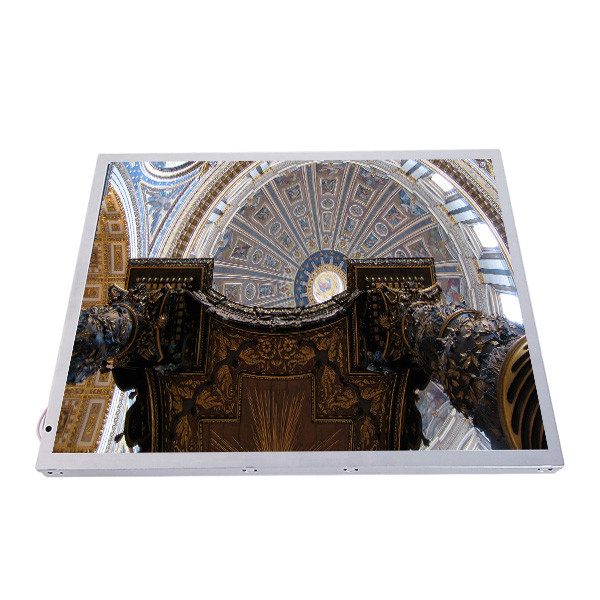

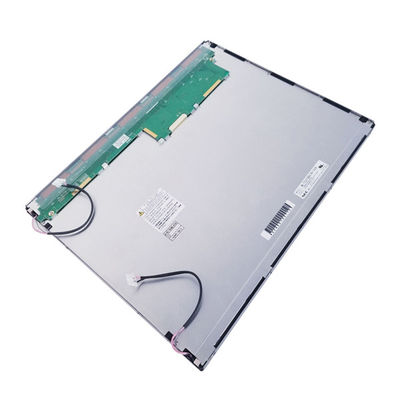

NEC NL10276BC30-32D original 15.0 inch LCD screen display panel
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC30-32D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL10276BC30-32D | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline Size: | 326.5(W)×253.5(H)×12(D) Mm |
| Luminance: | 250 Cd/m² (Typ.) | Contrast Ratio: | 500 : 1 (Typ.) (TM) |
| Mass: | 0.97/1.05Kgs (Typ./Max.) | Used For: | Industrial |
Product Description
NEC NL10276BC30-32D original 15.0 inch LCD screen display panel
NL10276BC30-32D Product details :
| NEC LCD Screen NL10276BC30-32D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC30-32D |
| Screen Size | 15.0 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)*768 XGA 85PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 304.128(H)*228.096(V) mm |
| physical dimension | 326.5(H)*253.5(V) *12(T) mm |
| Open area | 307.4(H)*231.3(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 250 cd/m² (Typ.) |
| Contrast | 500:1 (Typ.) (transmission) |
| Response time | 4/14 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 16.7M, 50% NTSC |
| type of light source | CCFL [2 pcs], 50K hours, no driver |
| weight | 0.97/1.05Kgs (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -20 ~ 80 °C |
| NEC NL10276BC30-32D original 15.0 inch LCD screen display panel | |
