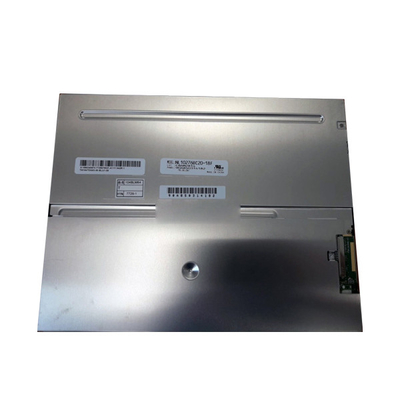

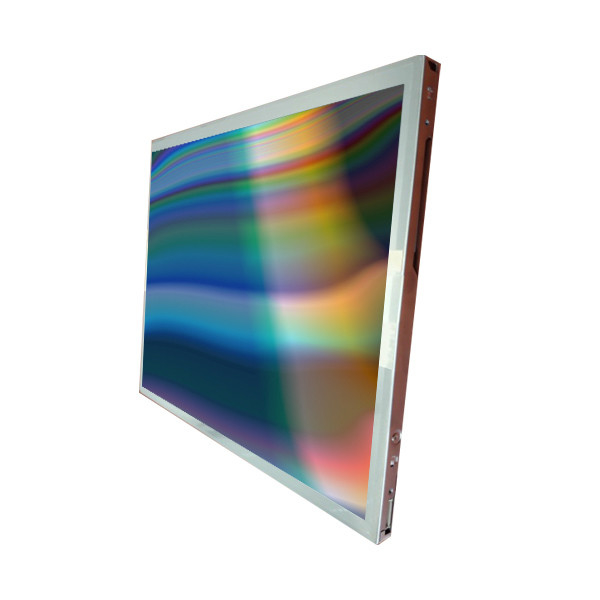

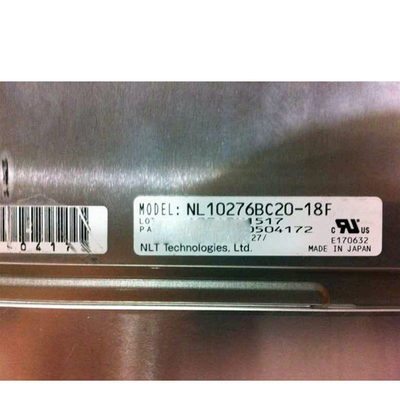

Brand New Original 10.4 inch 1024*768 NL10276BC20-18F LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC20-18F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL10276BC20-18F | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 228(W)×178.5(H)×9.2(D) Mm |
| Luminance: | 800 Cd/m² (Typ.) | Response Time: | 3/15 (Typ.)(Tr/Td) |
| Weight: | 380/400g (Typ./Max.) | Designed For: | Industrial |
Product Description
Brand New Original 10.4 inch 1024*768 NL10276BC20-18F LCD Screen Display
NL10276BC20-18F Product details :
| NEC LCD Screen NL10276BC20-18F | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC20-18F |
| Screen Size | 10.4 inch |
| Panel type | a-Si TFT-LCD, LCD module; |
| Number of pixels | 1024(RGB)×768, XGA, 123PPI |
| Pixel layout | RGB vertical bar |
| Display area | 210.4(W)×157.8(H) mm |
| Viewable area | 215.4(W)×161.8(H) mm |
| physical dimension | 228(W)×178.5(H) ×9.2(D) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Panel brightness | 800 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 3/15 (Typ.)(Tr/Td) |
| Display color | 262K/16.7M, 40% NTSC |
| type of light source | 5 strings WLED, 70K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 380/400g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| Brand New Original 10.4 inch 1024*768 NL10276BC20-18F LCD Screen Display | |
NL10276BC20-18F Helpful Information:
- We provide a wide variety of LCD screens, touch screens, inverters and other accessories.
- Many of the original LCD screen has been discontinued, we sell the Used ones of great working condition.
- Please confirm it with us before buying if you need 100% new products only.
- If you are not sure whether the product is the one you need or if you need more, please contact me before ordering.
NL10276BC20-18F Shippment & Packing
NL10276BC20-18F About Shipping:
we will test them strictly before shipping.
we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.
NL10276BC20-18F Return :
All returns must be informed before returning.
The Buyer is ought to notify the seller of all returned items within 7 days after receiving the package. We reserve the right refusing any requirement that informs the seller longer than 7 days.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Return items must have all original packaging and in good condition.
Return postage and insurance charge is non-refundable for refund or new shipment.
Shipping fees are non-refundable.
NL10276BC20-18F FAQ:
Q: How long will I receive my goods NL10276BC20-18F ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of NL10276BC20-18F ?
A: Of course!sample order is welcome !
Q: How long is the warranty ?
A: We offer 90 days warranty .
Q: Can I pay my order of NL10276BC20-18F via credit card ?
A: Yes!you can use your credit card through your Paypal account
