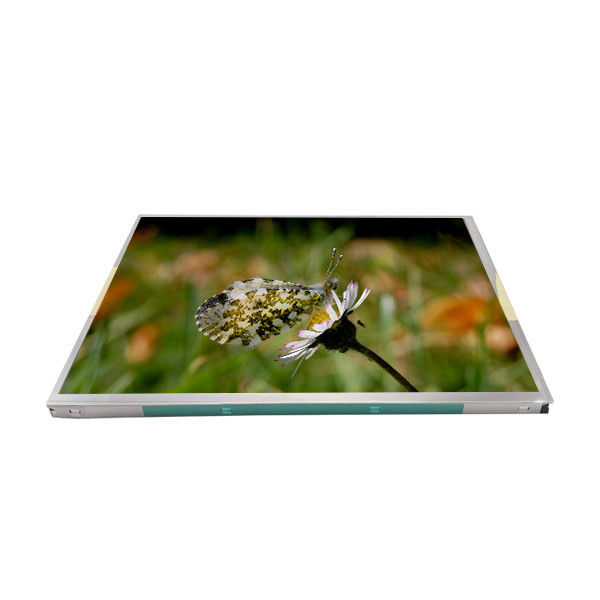

10.4 inch For NEC 1024*768 Industrial TFT LCD Screen Display Module NL10276BC20-18D
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC20-18D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL10276BC20-18D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 123PPI | Active Area: | 210.4(W)×157.8(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 228(W)×178.5(H)×9.2(D) Mm |
| Luminance: | 400 Cd/m² (Typ.) | Contrast Ratio: | 900:1 (Typ.) (TM) |
| Weight: | 380/400g (Typ./Max.) | Designed For: | Industrial |
Product Description
10.4 inch For NEC 1024*768 Industrial TFT LCD Screen Display Module NL10276BC20-18D
NL10276BC20-18D Product details :
| NEC LCD Screen NL10276BC20-18D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC20-18D |
| Screen Size | 10.4 inch |
| Panel type | a-Si TFT-LCD, LCD module; |
| Number of pixels | 1024(RGB)×768, XGA, 123PPI |
| Pixel layout | RGB vertical bar |
| Display area | 210.4(W)×157.8(H) mm |
| Viewable area | 215.4(W)×161.8(H) mm |
| physical dimension | 228(W)×178.5(H) ×9.2(D) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 400 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 3/15 (Typ.)(Tr/Td) |
| Display color | 262K/16.7M, 40% NTSC |
| type of light source | 2 strings WLED, 70K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 380/400g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 10.4 inch For NEC 1024*768 Industrial TFT LCD Screen Display Module NL10276BC20-18D | |
