8.4 inch 1024*768 lcd screen module NL10276BC16-06D tft lcd Panel 20 pins Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD101JHW1-H10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD101JHW1-H10 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1280(RGB)×720, WXGA 144PPI | Active Area: | 224.64(W)×126.36(H) Mm |
| Bezel Opening: | 227.64(W)×129.36(H) Mm | Outline(mm): | 238.8 × 148 × 8.65 (H×V×D) |
| Luminance: | 1000 Cd/m² (Typ.) | Contrast Ratio: | 1500 : 1 (Typ.) (TM) |
| Mass: | TBD | Used For: | Industrial / Outdoor High Brightness / Automotive Display |
Product Description
8.4 inch 1024*768 lcd screen module NL10276BC16-06D tft lcd Panel 20 pins Connector
HSD101JHW1-H10 Product details :

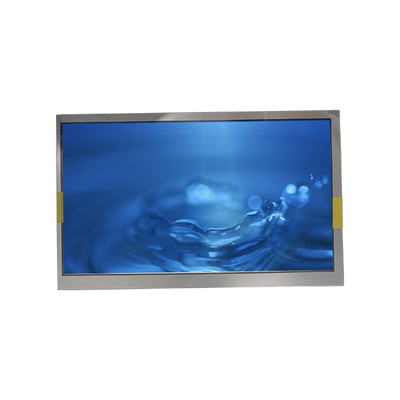

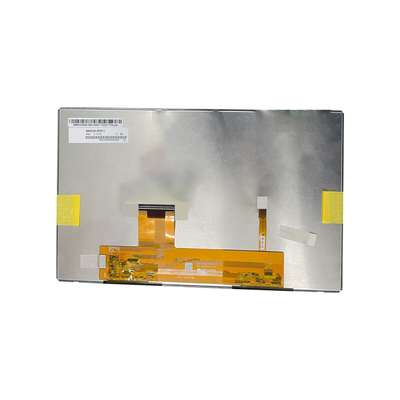

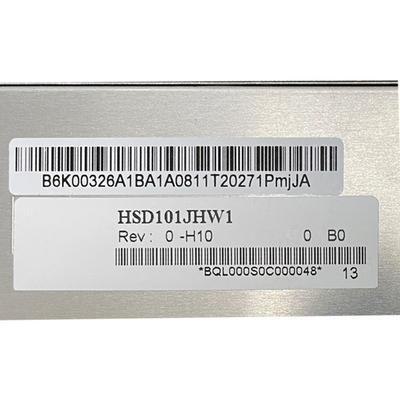

| HannStar LCD Screen HSD101JHW1-H10 | |
|---|---|
| Panel Brand | HannStar |
| Model P/N | HSD101JHW1-H10 |
| Diagonal Size | 10.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×720, WXGA 144PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 224.64(W)×126.36(H) mm |
| Bezel Opening | 227.64(W)×129.36(H) mm |
| Outline(mm) | 238.8 × 148 × 8.65 (H×V×D) |
| Treatment | Antiglare, Reflection 5.0% (Typ.) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | HS-IPS Pro, Normally Black, Transmissive |
| Color Depth | 262K/16.7M 100% sRGB |
| Backlight | 8S4P WLED , 30K hours , No Driver |
| Mass | TBD |
| Used for | Industrial / Outdoor High Brightness / Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6/8-bit) , 60 pins FPC |
| Voltage Supply | 3.3/12.5/19/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| 8.4 inch 1024*768 lcd screen module NL10276BC16-06D tft lcd Panel 20 pins Connector | |
HSD101JHW1-H10 Payment:
When buying on ALI, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
HSD101JHW1-H10 Shippment & Packing
HSD101JHW1-H10 Shipping:
(Please note:business/working days:NOT including the weekend nor the holidays.)
1.We will ship the item via Registered Airmail in 2 business days after the payment cleared.The shipping time of the following sometimes maybe a little longer due to custom problems,holidays or something uncertain reasons.
To most of the countries: 25-45 business days (such as Germany, Spain, Swden, Switzerland etc.)
To the USA, UK and Australia: 7-18 business days
To Russia: 25-60 business days due to Russia post is very slow
For faster delivery,please contact us for express details.
2.We ship your parcel worldwide as gift.Please make sure your shipping address is the right one.
3.The package are safe with signature required.If none sign for the package,it will be return.Please don't forget to go to post office to pick it up.Thanks.
HSD101JHW1-H10 Return& Refund:
Please read the item description and check the pictures carefully before bidding.
Refund or Return is available if the item arrived broken,not as described or does not do what it's supposed to.
HSD101JHW1-H10 FAQ:
Q: How long will I receive my goods HSD101JHW1-H10 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD101JHW1-H10 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD101JHW1-H10 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How can I trace my order of HSD101JHW1-H10 ?
A: we will give you tracking number then you can trace your order from website.
