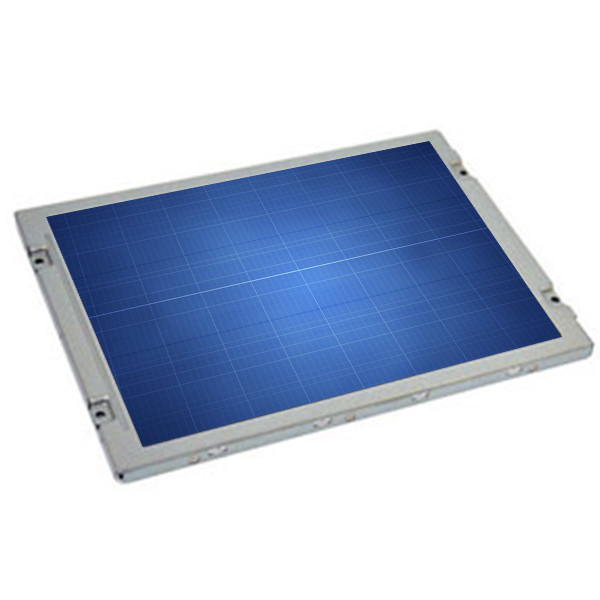

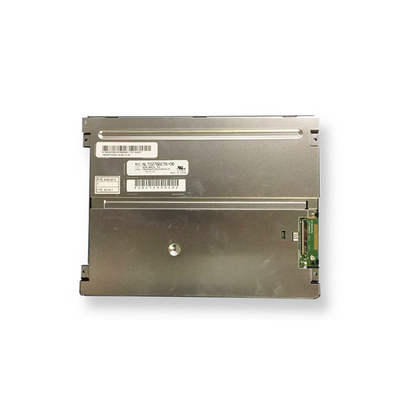

8.4 inch 1024*768 lcd screen module NL10276BC16-06D tft lcd Panel 20 pins Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL10276BC16-06D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL10276BC16-06D | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 152PPI | Active Area: | 170.496(W)×127.872(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline Size: | 200(W)×152(H) ×8.7(D) Mm |
| Brightness: | 600 Cd/m² (Typ.) | Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Panel Weight: | 260/280g (Typ./Max.) | Application: | Industrial |
Product Description
8.4 inch 1024*768 lcd screen module NL10276BC16-06D tft lcd Panel 20 pins Connector
NL10276BC16-06D Product details :
| NEC LCD Screen NL10276BC16-06D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276BC16-06D |
| Screen Size | 8.4 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×768 [XGA] 152PPI |
| Display size | 170.496 × 127.872 mm (H×V) |
| physical dimension | 200 × 152 × 8.7 mm (H×V×D) |
| Visual size | 174.0 × 131.4 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 600 (Typ.) |
| Contrast | 1000: 1 (Typ.) [Transmission] |
| Best angle | Full view |
| Optical mode | UA-SFT, normally black display, transmissive |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| responding speed | 13/12 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 72% NTSC |
| Backlight type | 4 strings WLED, 100K hours, no driver |
| Screen weight | 260/280g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -20 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 8.4 inch 1024*768 lcd screen module NL10276BC16-06D tft lcd Panel 20 pins Connector | |
