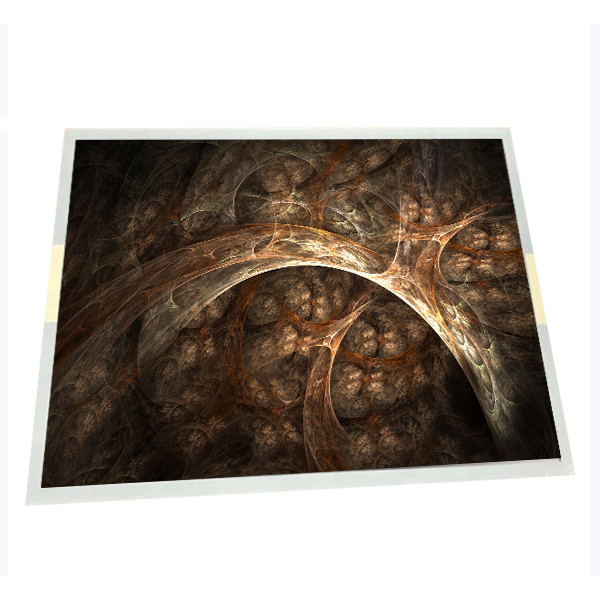

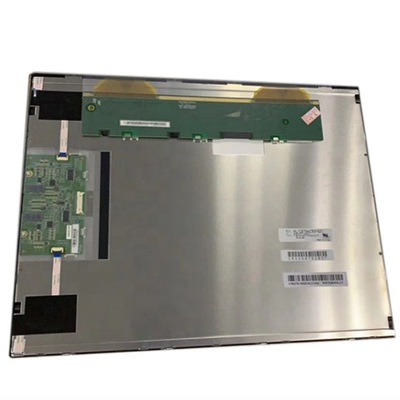

NL10276AC30-52C Original 15.0 inch LCD screen Display for Industrial Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |

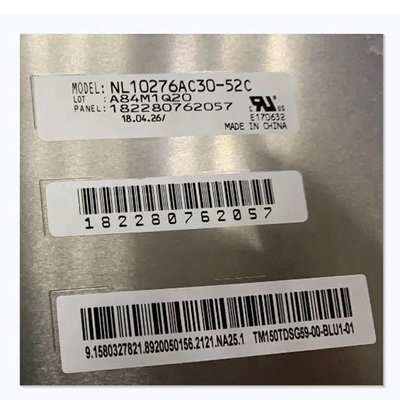

| Model Number: | NL10276AC30-52C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL10276AC30-52C | Diagonal Size: | 15.0" |
|---|---|---|---|
| Resolution: | 1024(RGB)×768, XGA 85PPI | Active Area: | 304.128(W)×228.096(H) Mm |
| Bezel Opening: | 307.4(W)×231.3(H) Mm | Outline(mm): | 326.5(W)×253.5(H) |
| Luminance: | 1600 (Typ.)(cd/m²) | Response: | 3/5 (Typ.)(Tr/Td) Ms |
| Mass: | 1.15/1.27Kgs (Typ./Max.) | Used For: | Industrial / Outdoor High Brightness |
Product Description
NL10276AC30-52C Original 15.0 inch LCD screen Display for Industrial Equipment
NL10276AC30-52C Product details :
| NEC LCD Screen NL10276AC30-52C | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL10276AC30-52C |
| Screen Size | 15.0 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 1024(RGB)*768 XGA 85PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 304.128(H)*228.096(V) mm |
| physical dimension | 326.5(H)*253.5(V) mm |
| Open area | 307.4(H)*231.3(V) mm |
| Surface treatment | Clear, Hard coating (2H), anti-reflection treatment |
| Display brightness | 1600 cd/m² (Typ.) |
| Contrast | 1000:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 3/5 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.2M, 60% NTSC |
| type of light source | WLED, 50K hours, with LED driver |
| weight | 1.15/1.27Kgs (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -30 ~ 70 °C; Storage temperature: -30 ~ 80 °C |
| NL10276AC30-52C Original 15.0 inch LCD screen Display for Industrial Equipment | |
NL10276AC30-52C Payment:
When buying on ALI, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
NL10276AC30-52C Shippment & Packing
NL10276AC30-52C Shippment:
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
NL10276AC30-52C Warranty and Guarantee:
6 months Warranty. Buy with confidence!
If you are not satisfied when you receive your item, please return it within 7 days for a replacement or money back. Please contact me before you return it.
If compatible item is defective in 6 months, We will send you a replacement without extra charger, or offer refund after we receive the defective item.
If compatible item is defective after 6 months, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping fee.
The original new item we guarantee its quality and can work well on machine. we don't accept return.
NL10276AC30-52C FAQ:
Q: How long will I receive my goods NL10276AC30-52C ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: Can you give me a discount if I need a large quantity of NL10276AC30-52C ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL10276AC30-52C to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
