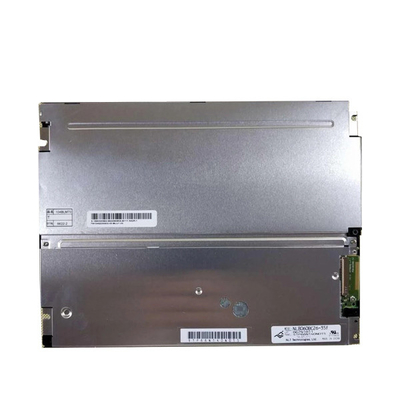

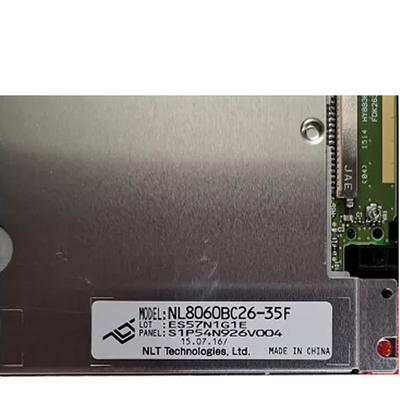

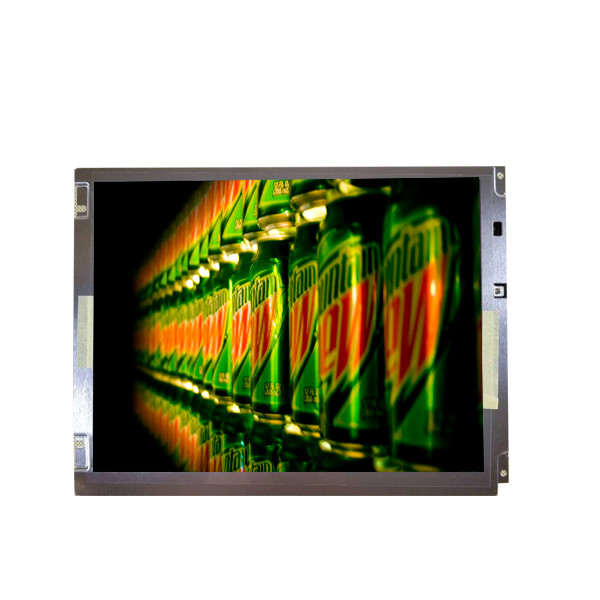

New LCD Display Module NL8060BC26-35F 10.4 inch 800*600 LCM TFT-LCD for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC26-35F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL8060BC26-35F | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 243(W)×185.1(H) ×11(D) Mm |
| Brightness: | 800 Cd/m² (Typ.) | Backlight: | 4 Strings WLED , 70K Hours , Optional |
| Mass: | 475/500g (Typ./Max.) | Used For: | Industrial |
Product Description
New LCD Display Module NL8060BC26-35F 10.4 inch 800*600 LCM TFT-LCD for Industrial
NL8060BC26-35F Product details :
| NEC LCD Screen NL8060BC26-35F | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC26-35F |
| Screen Size | 10.4 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)*600 SVGA 96PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)*158.4(V) mm |
| physical dimension | 243(H)*185.1(V) *11(T) mm |
| Open area | 215.4(H)*161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 800 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | WLED [4 strings], 70K hours, optional |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| New LCD Display Module NL8060BC26-35F 10.4 inch 800*600 LCM TFT-LCD for Industrial | |
NL8060BC26-35F About the product:
*Our main products include: 1.5-88 inch liquid crystal display(LCD)and touch screens, various handheld device LCDs and touch screens, various industrial LCD screens,medical equipment LCD screens,GPS and car LCD screens,high voltage strips,power supply boards, Lights, encoders, etc. Many original LCD monitors are discontinued models and second-hand (A+ level). If you only need 100% new screens, please confirm with us before purchasing.
*Please compare your original product with the photos we provide to make sure you are buying the correct parts. If you are not sure whether the match is accurate, please contact our customer service directly, our customer service will give the most accurate answer within 24 hours.
*Does not include installation instructions. Professional installation is recommended. Please read the instructions carefully.
*If you have any questions or clarifications about the items, please feel free to ask before buying.
NL8060BC26-35F Shippment & Packing
NL8060BC26-35F Shipping details:
& we must test the product strictly before shipping in order to ensure that the interests of consumers.
& We will ship the items within 2 working days after receive the payment.
& We can ship to you by DHL/ UPS/EMS/Fedex. Please contact us and we will use your preferred ways.
& we only ship according to the shipping address unless you contact us to change it.
& As to the shipping time,it usually will be 3-15 days,which will be different for different countries.
NL8060BC26-35F The delivery time is approximately:
US/UK/Australia 7-14 working days.
Canada 7-25 working days.
It may take 7-20 working days for France/Spain/Germany.
Eastern Europe can take up to 16-30 working days.
It may take up to 30-50 working days for Italy/Brazil/South America.
Shipped by DHL Express (it takes 3-6 working days to arrive)
NL8060BC26-35F FAQ:
Q: How long will I receive my goods NL8060BC26-35F ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of NL8060BC26-35F ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can I pay my order of NL8060BC26-35F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: How long is the warranty ?
A: We offer 90days warranty .
