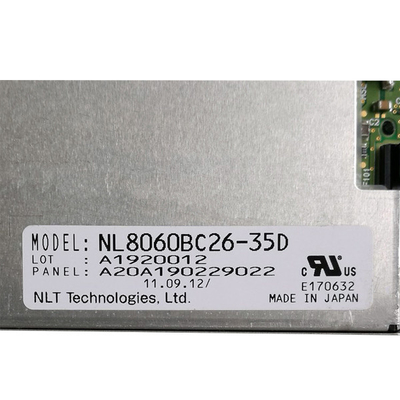

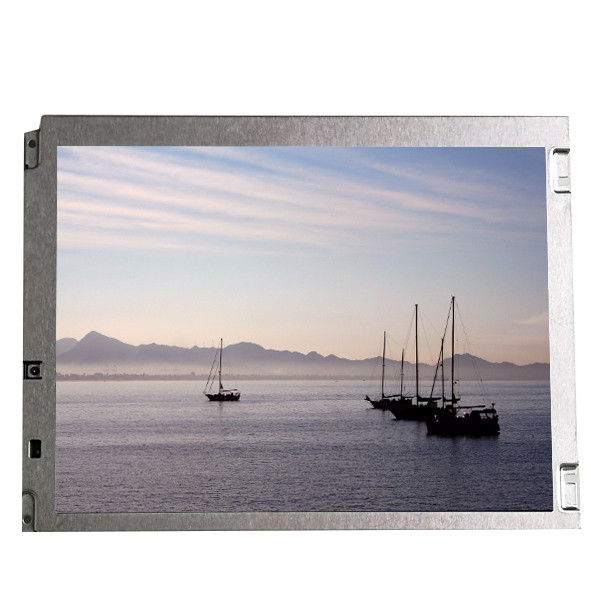

NL8060BC26-35D 10.4 inch lcd screen module 800*600 lcd display screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC26-35D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL8060BC26-35D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 243(W)×185.1(H) ×11(D) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 900:1 (Typ.) (TM) |
| Weight: | 475/500g (Typ./Max.) | Application: | Industrial |
Product Description
NL8060BC26-35D 10.4 inch lcd screen module 800*600 lcd display screen
NL8060BC26-35D Product details :
| NEC LCD Screen NL8060BC26-35D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC26-35D |
| Screen Size | 10.4 inch |
| Panel type | a-Si TFT-LCD, LCD module; |
| Number of pixels | 800(RGB)×600, SVGA, 96PPI |
| Pixel layout | RGB vertical bar |
| Display area | Display area:211.2(W)×158.4(H) mm |
| Viewable area | Viewable area:215.4(W)×161.8(H) mm |
| physical dimension | physical dimension:243(W)×185.1(H) ×11(D) mm |
| Surface treatment | Surface treatment:Matte, Hard coating (3H) |
| Panel brightness | Panel brightness:400 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 3/15 (Typ.)(Tr/Td) |
| Display color | 262K/16.7M, 40% NTSC |
| type of light source | 3 strings WLED, 70K hours, optional |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 475/500g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL8060BC26-35D 10.4 inch lcd screen module 800*600 lcd display screen | |
NL8060BC26-35D Products and services:
&Our company mainly sales of LCD panel and touch screen,
& We have thousands of models and products.So we are able to meet consumer demand.
& we offer high quality, fast delivery, competitive price for our customers
& Please send your RFQ(request for quoting) to get latest price.
& Warranty of each part.
& Terms of Payment:Escrow,Western Union,TT ,Etc.
NL8060BC26-35D Shippment & Packing
NL8060BC26-35D Packing &shipping:
Item will be sent to you within 1-3days after payment confirmed .
You can choose TNT/DHL/FEDEX/EMS...But Russia only can use EMS.
NL8060BC26-35D Kindly reminder:
When you order , pls check the detail address .
All the items will be tested ok before shipping .
As for the secondhand product , the used item appearance is not like new one . we only can make a promise that all the functions are okay.
All the items price is not including the customs fee , pls note . Pls leave message the declare value for the item , thanks!
NL8060BC26-35D Warm reminder:
The Duty or custom fees is depend on BUYER country, Not Seller!
When you place an order , Please provide a valid telephone or mobile number, Because we found that when the parcel arrive customer customs , the DHL/FEDEX/EMS feedback us that they can't get through buyer's tel/mobile .
When the parcel arrive the buyer customs , there is only several days to handle Customs clearance.
If happen that the buyer can not handle the Customs clearance and pay the customs fee in time , Our seller will not refund you .
To avoid happen , please offer valid Tel/Mobile Number , and also the e-mail , it is convenient for us to contact you by e-mail when the parcel arrive your local customs .
NL8060BC26-35D FAQ:
Q: How long will I receive my goods NL8060BC26-35D ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: If I place order now,when will you ship the goods of NL8060BC26-35D ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: Can you give me a discount if I need a large quantity of NL8060BC26-35D ?
A: Of course!If you make a large order, we will give you a discount.
Q: How to make payment of NL8060BC26-35D ?
A: We accept T/T , Paypal , western union .
