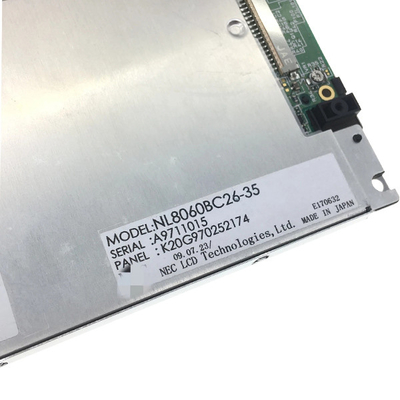

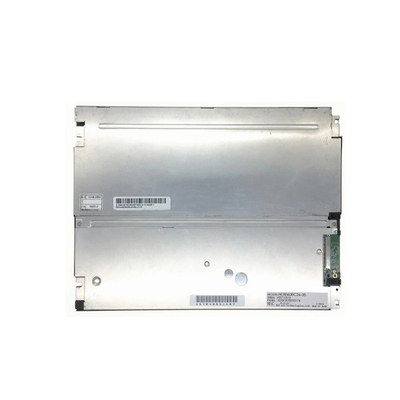

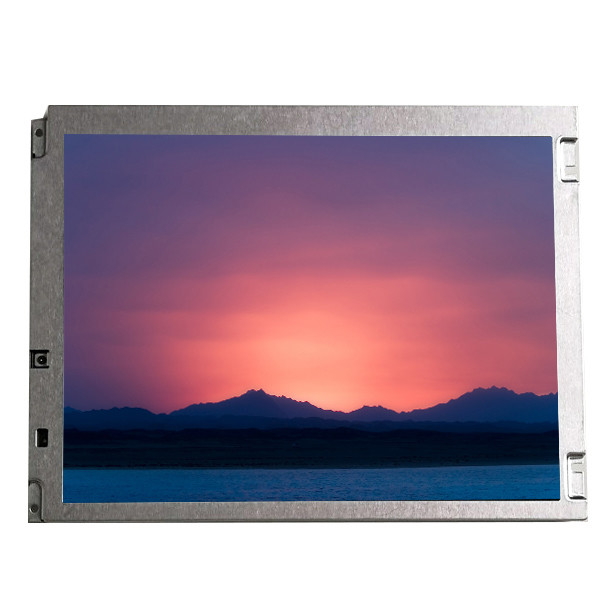

New NL8060BC26-35 10.4inch 800*600 LCM TFT-LCD Screen Display

New NL8060BC26-35 10.4inch 800*600 LCM TFT-LCD Screen Display

Product Details:

Place of Origin: China
Brand Name: NEC
Model Number: NL8060BC26-35

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Original packaging/conventional packaging box
Delivery Time: 7 Days
Payment Terms: T/T, Western Union
Supply Ability: 100000 Unit/Units per Month
Get Best Price Contact Now

Detail Information

Model P/N: NL8060BC26-35 Diagonal Size: 10.4"
Resolution: 800(RGB)×600, SVGA 96PPI Active Area: 211.2(W)×158.4(H) Mm
Bezel Opening: 215.4(W)×161.8(H) Mm Outline Size: 243(W)×185.1(H) ×11(D) Mm
Best View On: 6 O'clock Response Time: 3/15 (Typ.)(Tr/Td)
Panel Weight: 475/500g (Typ./Max.) Application: Industrial

Product Description

New NL8060BC26-35 10.4inch 800*600 LCM TFT-LCD Screen Display



NL8060BC26-35 Product details :



NEC LCD Screen NL8060BC26-35
Manufacturer NEC
Model Name NL8060BC26-35
Screen Size 10.4 inch
Types of a-Si TFT-LCD, LCM
Resolution 800(RGB)*600 SVGA 96PPI
Pixel arrangement RGB vertical bar
Display area 211.2(H)*158.4(V) mm
physical dimension 243(H)*185.1(V) ×11(T) mm
Open area 215.4(H)×161.8(V) mm
Surface treatment Clear, Hard coating (3H)
Display brightness 400 cd/m² (Typ.)
Contrast 900:1 (Typ.) (transmission)
Recommended perspective 6 o'clock
Response time 3/15 (Typ.)(Tr/Td) ms
Viewing angle 80/80/80/80 (Typ.)(CR≥10)
Display mode TN, normally white display, transmissive
Support color 262K/16.7M, 40% NTSC
type of light source WLED [3 strings], 70K hours, optional
weight 475/500g (Typ./Max.)
Frame rate 60Hz
Touch technology No touch
Interface Type 20 pins LVDS (1 ch, 6/8-bit), connector
Voltage supply 3.3V (Typ.)
Application Environment Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²)
