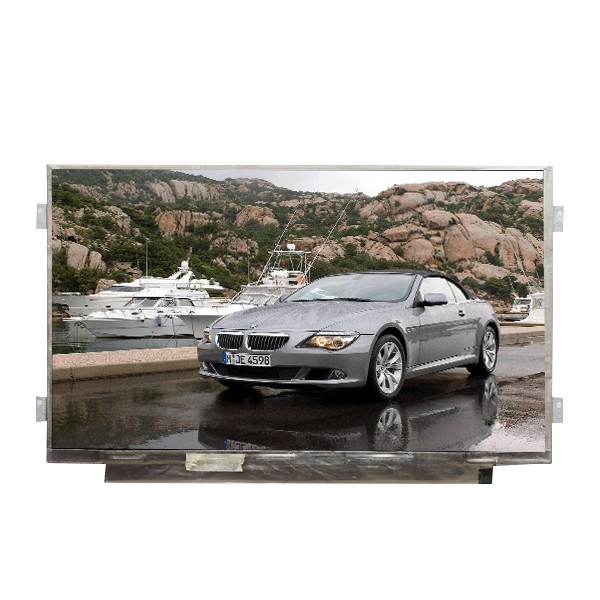

WLED LVDS Laptop 10.1 Inch LCD Monitor 40pin B101AW06 V1 HW1A
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101AW06 V1 HW1A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101AW06 V1 HW1A | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 [WSVGA]117PPI | Active Area: | 222.72(W)×125.28(H) Mm |
| Outline Size: | 243(W)×146.5(H) ×3.6(D) Mm | Brightness: | 200 Cd/m² (Typ.) |
| Viewing Angle: | 45/45/15/35 (Typ.)(CR≥10) | Number Of: | 262K, 45% NTSC |
| Shape Style: | Flat (PCBA Flat, T3.4~4.0mm) | Application: | Netbook PC |
| High Light: | LVDS Laptop 10.1 Inch LCD Monitor,B101AW06 V1 HW1A 10.1 Inch LCD Monitor,B101AW06 V1 HW1A Laptop LCD Monitor |
||
Product Description
WLED LVDS Laptop 10.1 Inch LCD Monitor 40pin B101AW06 V1 HW1A
10.1 inch LCD monitor Laptop 40pin LCD 1024*600 For WLED LVDS B101AW06 V1 HW1A
B101AW06 V1 HW1A Product details :
| Brand | AUO |
| Model Name | B101AW06 V1 HW1A |
| Diagonal Size | 10.1" |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×600 [WSVGA]117PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 222.72(W)×125.28(H) mm |
| Bezel Opening | 225.72(W)×128.28(H) mm |
| Outline Size | 243(W)×146.5(H) ×3.6(D) mm |
| Surface | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Display Mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response Time | 9/7 (Typ.)(Tr/Td) ms |
| Number of | 262K, 45% NTSC |
| Backlight type | WLED, 10K hours, with LED driver |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Application | Netbook PC |
| Signal Interface | 40 pins LVDS (1 ch, 6-bit), connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| 10.1 inch LCD monitor Laptop 40pin LCD 1024*600 For WLED LVDS B101AW06 V1 HW1A | |
