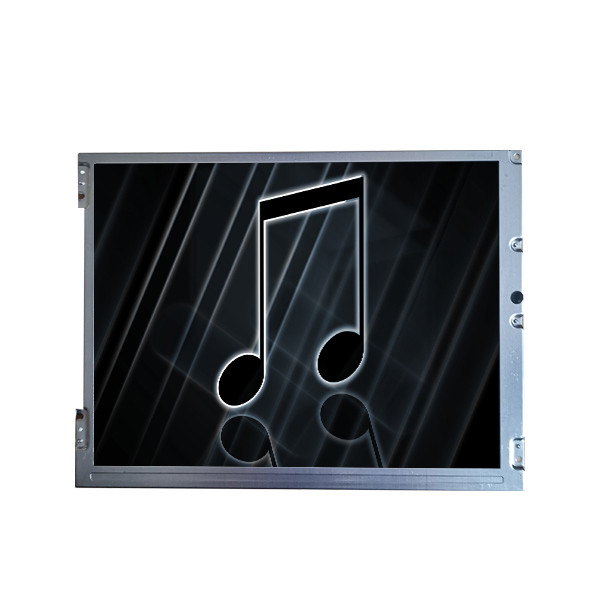

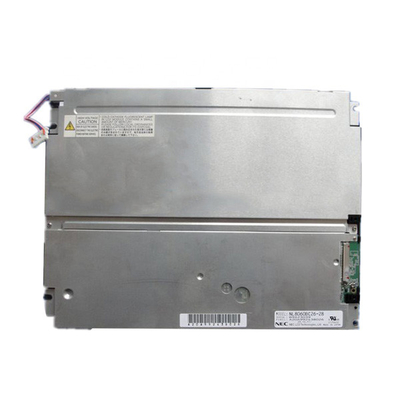

10.4 inch 800*600 lcd screen Display NL8060BC26-28 for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC26-28 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL8060BC26-28 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 96PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Size: | 243(W)×185.1(H) Mm |
| Brightness: | 400 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) (TM) |
| Weight: | 475/500g (Typ./Max.) | Application: | Industrial |
Product Description
10.4 inch 800*600 lcd screen Display NL8060BC26-28 for Industrial
NL8060BC26-28 Product details :
| NEC LCD Screen NL8060BC26-28 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC26-28 |
| Screen Size | 10.4 inch |
| Types of | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)*600 SVGA 96PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)*158.4(V) mm |
| physical dimension | 243(H)*185.1(V) mm |
| Open area | 215.4(H)*161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 700:1 (Typ.) (transmission) |
| Recommended perspective | Full view |
| Response time | 25/25 (Typ.)(Tr/Td) ms |
| Viewing angle | 88/88/88/88 (Typ.)(CR≥10) |
| Display mode | SA-SFT, normally black display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | CCFL [2 pcs], no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -10 ~ 70 °C; Storage temperature: -20 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 10.4 inch 800*600 lcd screen Display NL8060BC26-28 for Industrial | |
NL8060BC26-28 Product Description:
1: To Repair for Faulty Screen, Dead Pixels , Touch is not sensitive, Cracked Broken Touch Screen Problems.
2: Full Tested 100% Working By Real equipment before Shipping
3: Not supply the disassembly installation instructions and Tools
4: Please match your original screen with the image & description we have provided in this listing. If not sure. Contact with us to Confirm
5: We reserve the right to ship COMPATIBLE screens (part # or manufacturers may not be the same but 100% compatibility is guaranteed)
NL8060BC26-28 Payment and Shipment:
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
NOTICE: delivery time should not be considered as an aspect of your feedback.
NL8060BC26-28 Shippment & Packing
NL8060BC26-28 Returns and feedback:
*All returns must be notified before the return. We look forward to cooperating with rational and friendly customers. If you have any problems with the items you received, please contact us immediately.
*Because the buyer ordered the wrong parts, the buyer needs to pay the replacement shipping cost.
*The returned goods must have all original packaging and be in good condition.
*All items will be tested before shipment. If you encounter any problems, please contact me first and I will try my best to solve it for you. Don't accept bad reviews before contacting me.
NL8060BC26-28 FAQ:
Q: How long will I receive my goods NL8060BC26-28 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: If I place order now,when will you ship the goods of NL8060BC26-28 ?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How can I trace my order of NL8060BC26-28 ?
A: we will give you tracking number then you can trace your order from website.
