High Brightness 1250cd LCD Touch Panel Display Original HSD070JWW-A20-T00
Product Details:
| Place of Origin: | China |
| Brand Name: | HannStar |
| Model Number: | HSD070JWW1-A20-T00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | HSD070JWW1-A20-T00 | Diagonal Size: | 7.0" |
|---|---|---|---|
| Resolution: | 1280(RGB)×768, WXGA 213PPI | Active Area: | 152.448(W)×91.4688(H) Mm |
| Outline Size: | 207.785(W)×118.496(H) ×12.27(D) Mm | Surface: | Anti Fingerprint, Antireflection |
| Brightness: | 1250cd/m² (Typ.) | Touch Screen: | On-Cell Touch |
| Panel Weight: | 260g (Typ.) | Application: | Outdoor High Brightness / Automotive Display |
| High Light: | 1250cd LCD Touch Panel Display,Automotive LCD Touch Panel Display,HSD070JWW-A20-T00 7 Inch LCD Screen |
||
Product Description
High Brightness 1250cd LCD Touch Panel Display Original HSD070JWW-A20-T00

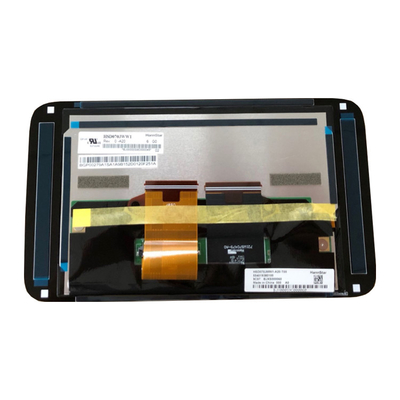

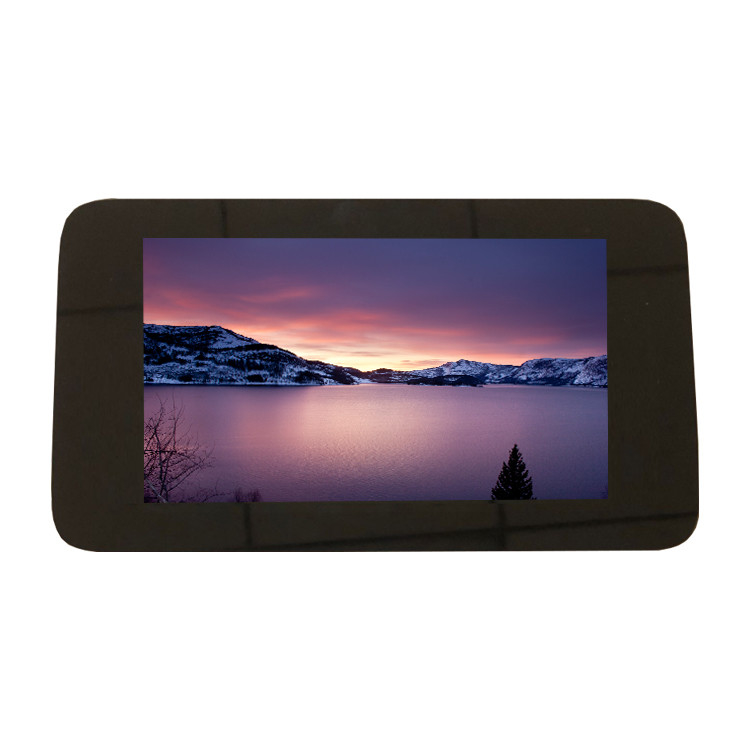

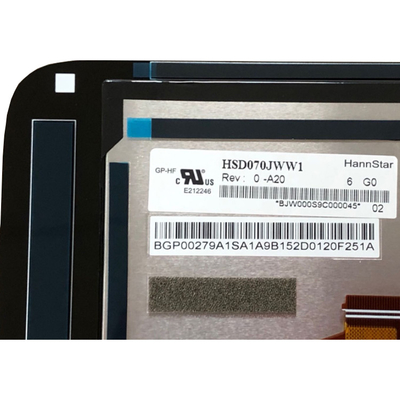

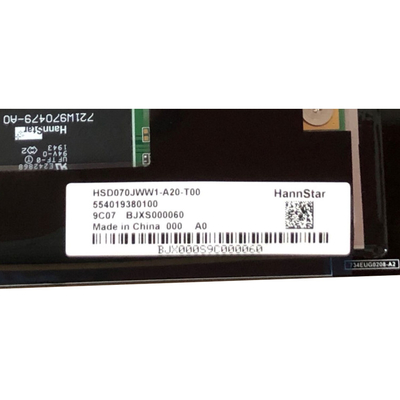

HSD070JWW1-A20-T00 Original 7.0 inch 1280*768 LCD Screen Monitor Equipment for Outdoor High Brightness
HSD070JWW1-A20-T00 Product details :
| HannStar LCD Screen HSD070JWW1-A20-T00 | |
|---|---|
| Brand | HannStar |
| Model P/N | HSD070JWW1-A20-T00 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×768, WXGA 213PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.448(W)×91.4688(H) mm |
| Outline Size | 207.785(W)×118.496(H) ×12.27(D)mm |
| Surface | Anti Fingerprint, Antireflection |
| Brightness | 1250 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| Viewing Angle | 60/60/60/60 (Max.)(CR≥200) |
| Display Mode | IPS Pro, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Max.)(Tr+Td) |
| Display Colors | 16.7M 89% NTSC |
| Lamp Type | WLED , 20K hours , Without Driver |
| Frequency | 60Hz |
| Touch Screen | On-Cell Touch |
| Panel Weight | 260g (Typ.) |
| Application | Outdoor High Brightness / Automotive Display |
| Signal Interface | LVDS (1 ch, 8-bit) + SPI , 60 pins FPC |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
| HSD070JWW1-A20-T00 Original 7.0 inch 1280*768 LCD Screen Monitor Equipment for Outdoor High Brightness | |
HSD070JWW1-A20-T00 Payment:
1:We receive AliExpress payments and papal payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
HSD070JWW1-A20-T00 Shippment & Packing
HSD070JWW1-A20-T00 Tips that Will help:
For Brazil buyers, if you select Express shipping, like FED DHL UPS Ect. Please do provide company name and CNPJ number or CPF Number.
Please check your messages often, we may have some issues need your confirmation before shipping.
Please provide your FULL NAME for shipping.
Make the selection if the product has parameters, or note in the order.
Chile, Argentina buyers please provide your Tax number for express shipping like UPS.
The "Estimated Delivery Time" given by aliexpress is NOT correct, NOT our guaranteed time.
Postal mail is cheap but not fast, especially for some remote countries. If you are urgent, please inquiry faster methods.
If ship by express, make sure you are NOT in remote area, or extra costs needed, and please note that it is for remote pleace delivery .
Standard batteries, liquid and other prohibited parts are usually removed before shipping if your item are these , we may shipped by Special Line which will charged extra dollars
Customs, Duties and Import Fees are the buyer's responsibilities. We are not responsible for customs delays or any duties, tariffs, Value-Added Tax (VAT) or other fees which may be incurred with your purchase. Be know your customs policy.
HSD070JWW1-A20-T00 Regarding tariffs and receipts:
*The buyer is responsible for the customs duties at the destination. If your budget does not allow tariffs, please avoid express delivery (DHL, FEDEX, EMS).
*If you do not receive the package within 30 days, please contact us. If unclaimed within 15-30 days, the package will be returned.
HSD070JWW1-A20-T00 FAQ:
Q: How long will I receive my goods HSD070JWW1-A20-T00 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can you give me a discount if I need a large quantity of HSD070JWW1-A20-T00 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of HSD070JWW1-A20-T00 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
