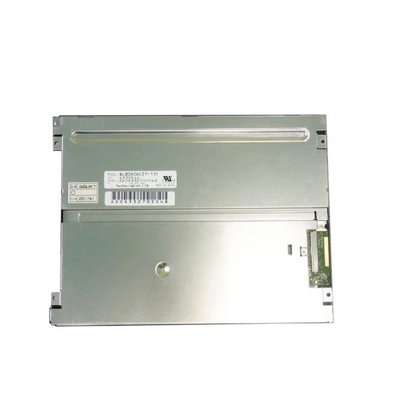

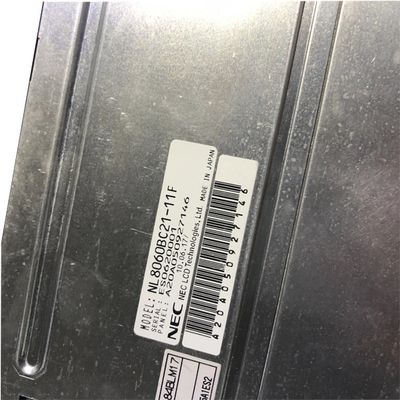

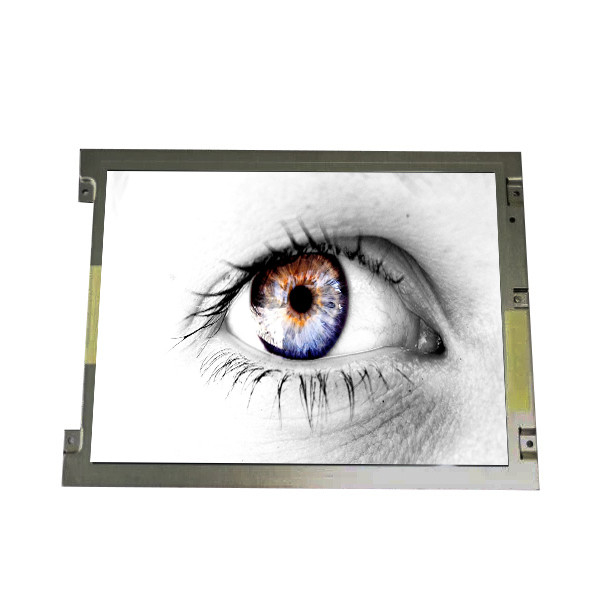

8.4 inch LCM 800*600 WLED LVDS NL8060BC21-11F LCD Screen Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC21-11F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL8060BC21-11F | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline Dim.: | 200(H)×152(V) ×8.7(D) Mm |
| Luminance: | 800 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Weight: | 260/280g (Typ./Max.) | Designed For: | Industrial |
Product Description
8.4 inch LCM 800*600 WLED LVDS NL8060BC21-11F LCD Screen Display
NL8060BC21-11F Product details :
| NEC LCD Screen NL8060BC21-11F | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC21-11F |
| Screen Size | 8.4 inch |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 800(RGB)*600, SVGA, 119PPI |
| Pixel layout | RGB vertical bar |
| Display area | 170.4(W)*127.8(H) mm |
| Viewable area | 174.0(W)*131.4(H) mm |
| physical dimension | 200(W)*152(H) *8.7(T) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Panel brightness | 800 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Reaction time | 3/15 (Typ.)(Tr/Td) ms |
| Display color | 262K/16.7M, 40% NTSC |
| type of light source | 4 strings WLED, 70K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 260/280g (Typ./Max.) |
| Signal interface | LVDS (1 ch, 6/8-bit), 20 pins, connector |
| Drive screen voltage | 3.3V (Typ.) |
| working environment | Work: -30 ~ 80 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 8.4 inch LCM 800*600 WLED LVDS NL8060BC21-11F LCD Screen Display | |
NL8060BC21-11F Important:
A specific machine model can have multiple dimensions and resolutions. The machine LCD resolution should not be upgraded or degraded. Before purchasing, you must confirm that the size and resolution of this screen match your machine! Unable to return due to improper installation or incompatibility
NL8060BC21-11F Payment and Tax:
1.Alipay is perferred and safety
2.Product being shipped outside of China will incur import duties taxes and charges etc.Those fees are not covered by either price or shipping charges of product,and are responsibility of recipient.
NL8060BC21-11F Shippment & Packing
NL8060BC21-11F Shippment:
The panel will be 100% check and test before shippment.
We will handle your order within 3-5 business day after got your order(Weekends And Holidays Excluded).
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
We also can offer Expedited International Shipping(FedEx,UPS or DHL) with extra fee if you need the item urgently.
Buyer is responsible for customs duty fee.
NL8060BC21-11F Delivery time is approx:
United States/ Canada/United Kingdom / France / Spain/ Switzerland/ New Zealand maytake 14-20 working days.
Eastern Europemay take up to 16-30 working days.
Italy/ Brazil/ South America/Russia may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive) Please contact for lower DHL price.
NL8060BC21-11F FAQ:
Q: Do you accept sample orders for NL8060BC21-11F ?
A: Of course!sample order is welcome !
Q: What happen if the NL8060BC21-11F I receive can't work ?
A: The NEC NL8060BC21-11F will be tested strictly before shipping.If happen that , pls check all the conNECt cable again,If still has problems ,we accept exchange or return panel.
Q: How long is the warranty of NEC NL8060BC21-11F ?
A: 90days warranty .
Q: How can I trace my order of NL8060BC21-11F ?
A: we will give you tracking number then you can trace your order from website.
