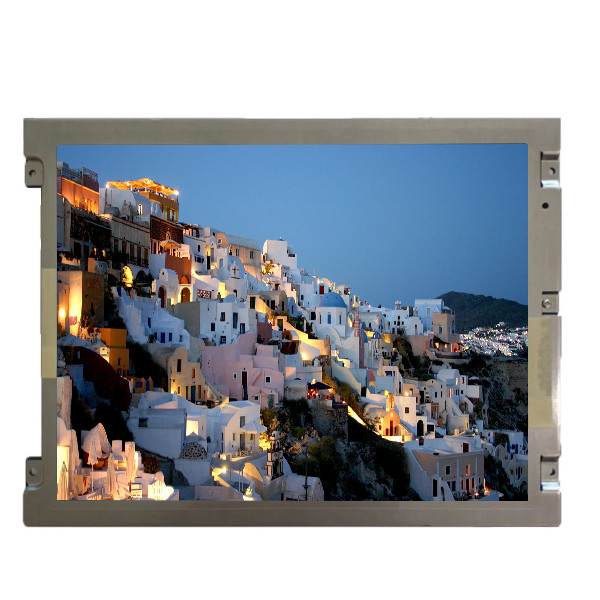

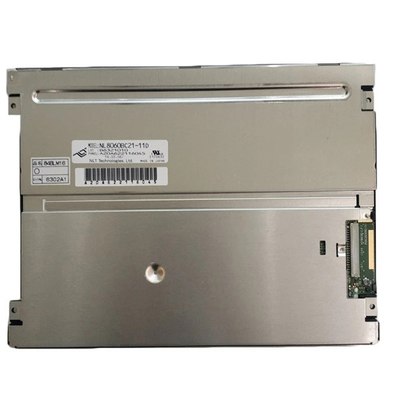

NL8060BC21-11D Brand New Original 8.4 inch 800(RGB)*600 Industrial LCD Screen Display for NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC21-11D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL8060BC21-11D | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline (mm): | 200×152×8.7 (H×V×D) |
| Color Depth: | 262K/16.7M 40% NTSC | Backlight: | 3 Strings WLED , 70K Hours , No Driver |
| Mass: | 260/280g (Typ./Max.) | Used For: | Industrial |
Product Description
NL8060BC21-11D Brand New Original 8.4 inch 800(RGB)*600 Industrial LCD Screen Display for NEC
NL8060BC21-11D Product details :
| NEC LCD Screen NL8060BC21-11D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC21-11D |
| Screen Size | 8.4 inch |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 800(RGB)×600 SVGA 119PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 170.4(H)*127.8(V) mm |
| physical dimension | 200(H)*152(V) *8.7(T) mm |
| Open area | 174.0(H)*131.4(V) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Display brightness | 400 cd/m² (Typ.) |
| Contrast | 800:1 (Typ.) (transmission) |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | WLED [3 strings], 70K hours, no driver |
| weight | 260/280g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL8060BC21-11D Brand New Original 8.4 inch 800(RGB)*600 Industrial LCD Screen Display for NEC | |
NL8060BC21-11D Be careful:
1.Please check and confirm your LCD screen model, screen size, and machine model. If you are not sure whether it is compatible, please send us the specific model and photo of your original screen;
2. We will send a matching panel compatible model, which may be different from the original model!
Please ensure that your shipping address is correct.
The package is secure and requires signature. If no one signs, the package will be returned. Please don't forget to pick it up at the post office.
NL8060BC21-11D Shippment & Packing
NL8060BC21-11D Warranty:
All lcd panel enjoyed 60 days warranty. If you find the lcd is non-workable once you received, pls inform us within 7 days. We reserve the right refusing any requirement that informs the seller longer than 7 days. We will assist you the solve the problem and RMA is acceptable if problem still unsolved after communication.
Return items must have all original packaging and in good condition.
Shipping fee and Return postage and insurance charge is non-refundable.
RMA not acceptable due to ordering the wrong model.
NL8060BC21-11D Return Policy:
All returns must be informed before returning.
If the item is damaged or can’t be used due to quality problem, then you can exchange it for a new one or get refund within 7 days after you receive ouritem.Shipping and handling charges cannot be refunded.Exchange or refund will be made after receiving the returning product.The return item and its accessories must be kept original and undamaged.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
NL8060BC21-11D FAQ:
Q: Can I pay my order of NL8060BC21-11D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL8060BC21-11D ?
A: Of course!If you make a large order, we will give you a discount.
Q: How can I trace my order of NL8060BC21-11D ?
A: we will give you tracking number then you can trace your order from website.
Q: How long is the warranty ?
A: We offer 90 days warranty .
