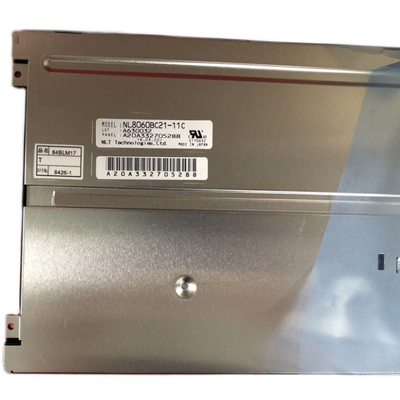

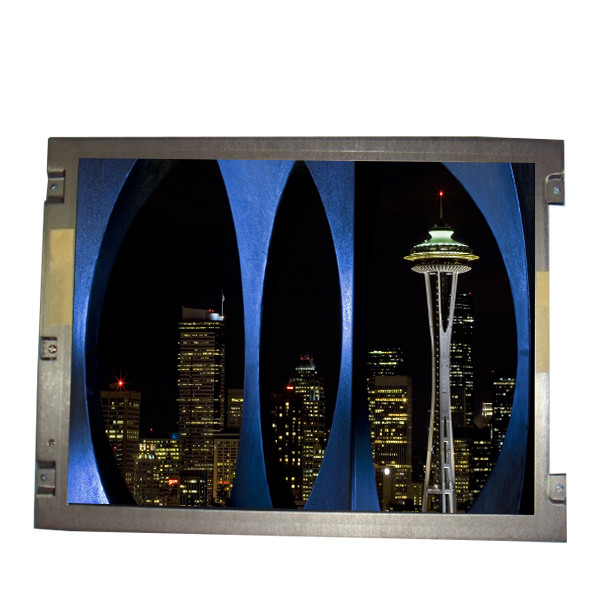

NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL8060BC21-11C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL8060BC21-11C | Diagonal Size: | 8.4" |
|---|---|---|---|
| Resolution: | 800(RGB)×600, SVGA 119PPI | Active Area: | 170.4(W)×127.8(H) Mm |
| Bezel Opening: | 174.0(W)×131.4(H) Mm | Outline Size: | 200(W)×152(H) ×8.7(D) Mm |
| Brightness: | 800 Cd/m² (Typ.) | Contrast Ratio: | 800:1 (Typ.) (TM) |
| Panel Weight: | 260/280g (Typ./Max.) | Application: | Industrial |
Product Description
NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display
NL8060BC21-11C Product details :
| NEC LCD Screen NL8060BC21-11C | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL8060BC21-11C |
| Screen Size | 8.4 inch |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 800(RGB)*600 [SVGA] 119PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 170.4 * 127.8 mm (H*V) |
| physical dimension | 200 * 152 * 8.7 mm (H*V*D) |
| Visual size | 174.0 * 131.4 mm (H*V) |
| Surface treatment | Clear, Hard coating (2H), anti-reflection treatment |
| Brightness (cd/m²) | 800 (Typ.) |
| Contrast | 800: 1 (Typ.) [Transmission] |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 40% NTSC |
| Backlight type | 4 strings WLED, 70K hours, no driver |
| Screen weight | 260/280g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NEC LCD panel NL8060BC21-11C 8.4 inch 800*600 WLED TFT Screen display | |
