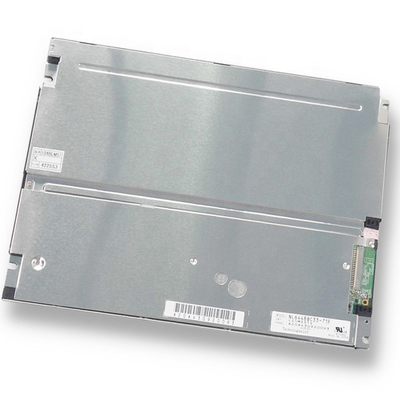

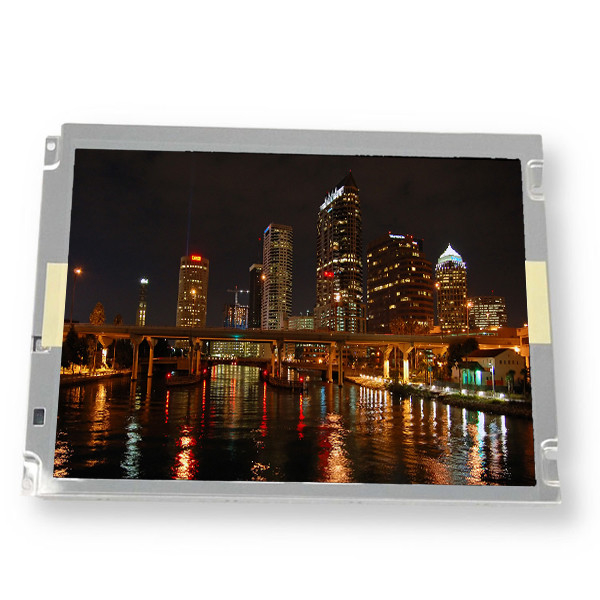

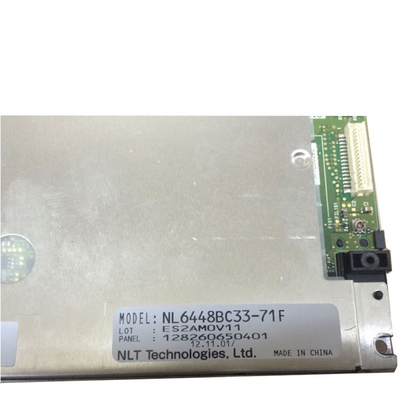

NL6448BC33-71F 10.4 inch Original in stock Industrial LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-71F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-71F | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243(H)×185.1(V)×11(D) Mm |
| Luminance: | 900 Cd/m² (Typ.) | Response Time: | 900 : 1 (Typ.) (TM) |
| Mass: | 475/500g (Typ./Max.) | Used For: | Industrial |
Product Description
NL6448BC33-71F 10.4 inch Original in stock Industrial LCD Display Screen
NL6448BC33-71F Product details :
| NEC LCD Screen NL6448BC33-71D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-71F |
| Screen Size | 10.4 inches |
| screen size | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 (VGA) 76PPI |
| Pixel layout | RGB vertical bar |
| Display size | 211.2(H)×158.4(V) mm |
| physical dimension | 243(H)×185.1(V) ×11(T) mm |
| Open area | 215.4(H)×161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 900 cd/m² (Typ.) |
| Contrast | 900:1 (Typ.) (transmission) |
| Response time | 3/15 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K/16.7M, 40% NTSC |
| type of light source | WLED [4 strings], 70K hours, no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |
| Interface Type | 20 pins LVDS (1 ch, 6/8-bit), connector |
| Voltage supply | 3.3V (Typ.) |
| Application Environment | Working temperature: -30 ~ 80 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC33-71F 10.4 inch Original in stock Industrial LCD Display Screen | |
NL6448BC33-71F Payment Information:
Escrow pls make order straight.
Other payment terms, like Paypal, T-T etc, pls contact me.
NL6448BC33-71F About item and shipping price:
1. For products that are rarely sold or never sold, the item price may not be accurate, please contact me for the correct quote.
2. For remote countries or islands, prices may be inaccurate, high or low, please contact me for the correct quote.
NL6448BC33-71F Shippment & Packing
NL6448BC33-71F Shipping:
(Please note: business/working days: NOT including the weekedn nor the holidays)
· 1 All items will be dispatched within 48 hours ( 2 working days ) after the payment is verified.
2.Shipping time will be different for different countries. If you haven't received your shipment within 30 days after payment, please contact us. We will track the shipment and get back to you as soon as we can.
3.As the global epidemic continues to be severe and global flights are expensive and in short supply now, it takes about a week to track the logistic information after shipped, the transportation time will be greatly extended and delivery time will longer than usually. If you need the goods urgently, please don't order it. Never open disputes or give bad feedback about express delivery timeliness, thank you very much for your kindly understanding!
4.Shipping address will according to your Alipay address. Please make sure your shipping address is the right one.
5.The package is safe with signature required. If none sign for the package, it will be return. Please don't forget to go to post office to pick it up. Thank you very much!
NL6448BC33-71F FAQ:
Q: Do you accept sample orders for NL6448BC33-71F ?
A: Of course!sample order is welcome !
Q: What happen if the NL6448BC33-71F receive can't work ?
A: The NL6448BC33-71F will be tested strictly before shipping.If happen that , pls check all the cont cable again,If still has problems ,we accept exchange or return panel.
Q: Can you give me a discount if I need a large quantity of NL6448BC33-71F ?
A: Of course!If you make a large order, we will give you a discount.
Q: I do not find the LCD I am looking for in the website, what should I do ?
A: You can give us some pictures,we have a lot of LCD out of shelves.
