New Original 10.4 inch 640(RGB)*480 NL6448BC33-71D LCD Screen Panel for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-71D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-71D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243(H)×185.1(V)×11(D) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Response Time: | 3/15 (Typ.)(Tr/Td) |
| Weight: | 475/500g (Typ./Max.) | Designed For: | Industrial |
Product Description

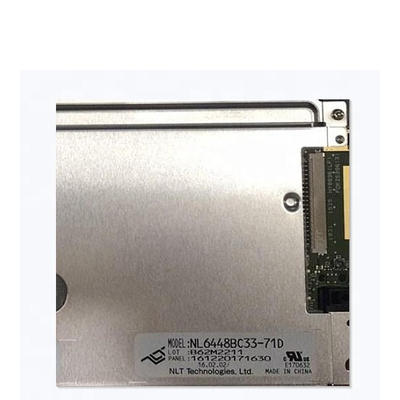

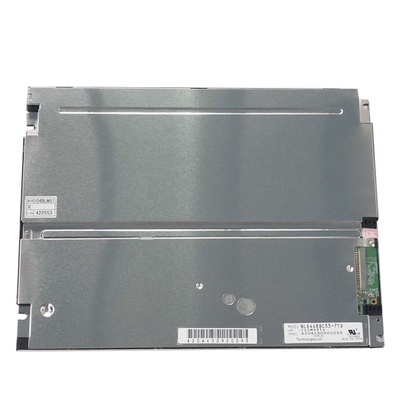

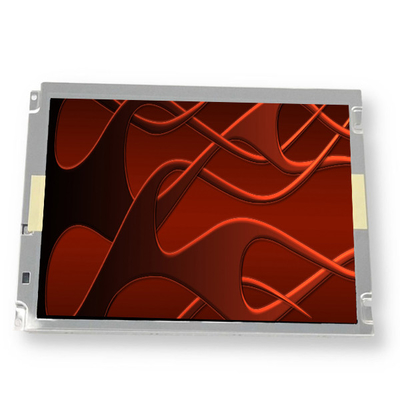

New Original 10.4 inch 640(RGB)*480 NL6448BC33-71D LCD Screen Panel for Industrial
NL6448BC33-71D Product details :
| NEC LCD Screen NL6448BC33-71D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-71D |
| Screen Size | 10.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 243 × 185.1 × 11 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 450 (Typ.) |
| Contrast | 900: 1 (Typ.) [Transmission] |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K/16.7M, 40% NTSC |
| Backlight type | 3 strings WLED, 70K hours, no driver |
| Screen weight | 475/500g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | LVDS (1 ch, 6/8-bit), connector, 20 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| New Original 10.4 inch 640(RGB)*480 NL6448BC33-71D LCD Screen Panel for Industrial | |
