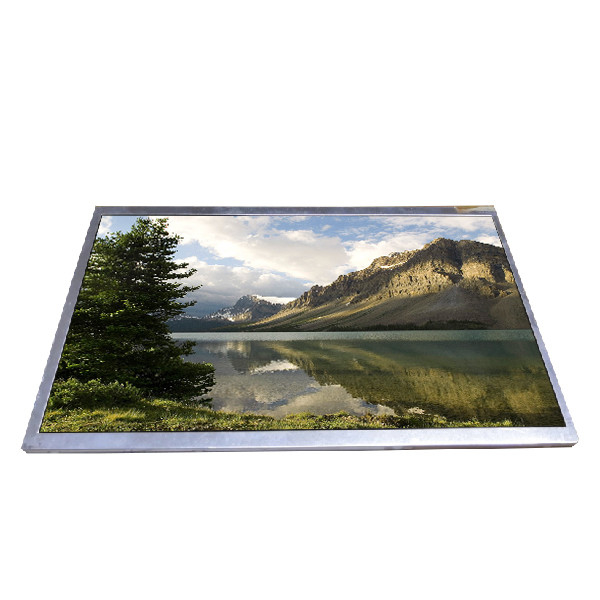

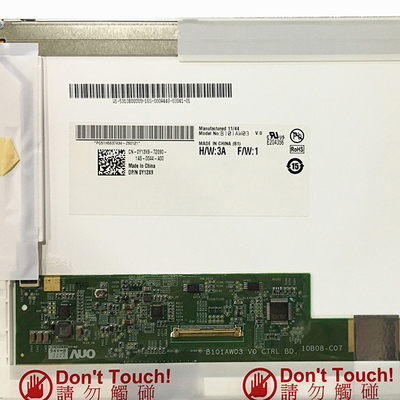

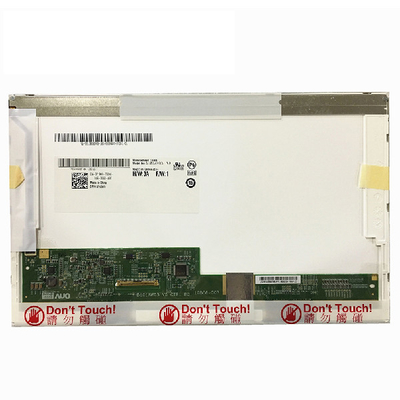

10.1 inch 1024*600 B101AW03 V0 LCD Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101AW03 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101AW03 V0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×576 WSVGA 116PPI | Active Area: | 222.72(H)×125.28(V) Mm |
| Bezel Opening: | 224.72(H)×127.28(V) Mm | Outline Dim.: | 235(H)×143(V)×5.2(D) Mm |
| Luminance: | 200 Cd/m² (Typ.) | Color Depth: | 262K , 45% NTSC |
| Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) | Used For: | Netbook PC |
Product Description
10.1 inch 1024*600 B101AW03 V0 LCD Display Screen
B101AW03 V0 Product details :
| Brand | AUO |
| Model Name | B101AW03 V0 |
| Size | 10.1" |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×600 [WSVGA]117PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 222.72(W)×125.28(H) mm |
| Outline(mm) | 235.5(W)×143.5(H) ×5.2(D) mm |
| Bezel Opening | 224.72(W)×127.28(H) mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Work Mode | TN, normally white display, transmissive |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response | 16 (Typ.)(Tr+Td) ms |
| Number of | 262K, 45% NTSC |
| Backlight type | WLED, 12K hours, with LED driver |
| Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | Without |
| Signal Type | LVDS (1 ch, 6-bit), 40 pins, connector |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Working: 0 ~ 50 °C; Storage: -20 ~ 60 °C |
| 10.1 inch 1024*600 B101AW03 V0 LCD Display Screen | |
B101AW03 V0 Payment :
1: We receive Alibaba payments and papal payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
B101AW03 V0 Shipping Detail:
1.Please confirm your ADDRESS carefully once you make the order. We will send the products to you at once after the payment is received.
2.Items are shipped from China using airmail;reach most of the countries within 15-30 business days.or by express reach most of the countries within 4-23 business days according the customs process speed.
3.Please contact us if you don't receive the products in 45 days.And please give us 3 working days for checking the undelivered package and reason.If it is our problem,we will refund the money to you.
4.We could not ship to African counties except South Africa by airmail.So if African customers want to buy these products,pleace contact us about the shipping problem in advance.
B101AW03 V0 The delivery time is approximately:
US/UK/Australia 7-14 working days.
Canada 7-25 working days.
It may take 7-20 working days for France/Spain/Germany.
Eastern Europe can take up to 16-30 working days.
It may take up to 30-50 working days for Italy/Brazil/South America.
Shipped by DHL Express (it takes 3-6 working days to arrive)
B101AW03 V0 FAQ:
Q: How to order AUO B101AW03 V0 ?
A: We accept T/T , PAYPAL , WESTERN UNION .
Q: What happen if the lcd pane B101AW03 V0 I received can't work ?
A: All the goods will be tesed before shipping.If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
Q: When will my order 10.1 inch lcd panel B101AW03 V0 ship?
A: The order are shipped within 1-2 working days after received the payment.
Q: Can you declared low value of my order about B101AW03 V0 ?
A: Yes , we can . But you need to leave message to us before shipping.
B101AW03 V0 Shippment & Packing
