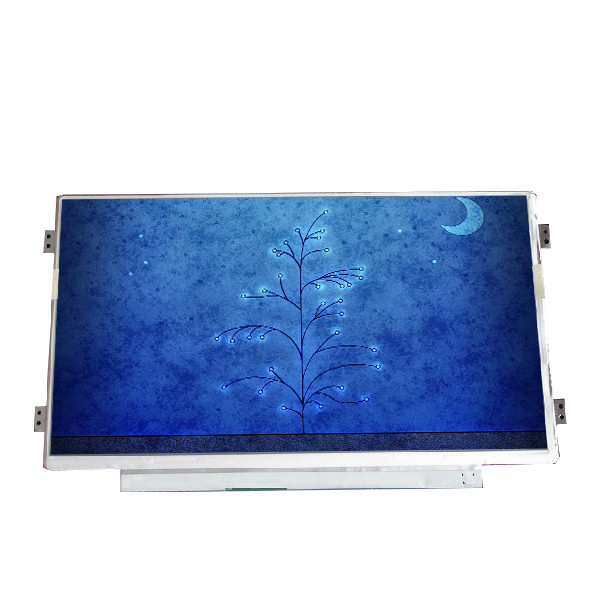

10.1 inch B101AW02 V3 1024*600 for Netbook PC LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101AW02 V3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101AW02 V3 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×576 WSVGA 116PPI | Active Area: | 222.72(H)×125.28(V) Mm |
| Outline Dim.: | 243(H)×146.5(V)×3.6(D) Mm | Luminance: | 200 Cd/m² (Typ.) |
| Color Depth: | 262K , 45% NTSC | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Used For: | Netbook PC | Form Style: | Flat (PCBA Flat, T3.4~4.0mm) |
Product Description
10.1 inch B101AW02 V3 1024*600 for Netbook PC LCD SCREEN
B101AW02 V3 Product details :
| AUO LCD Screen B101AW02 V3 | |
| Panel Brand | AUO |
| Panel Model | B101AW02 V3 |
| Screen size | 10.1inches |
| Panel Type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×600 WSVGA 117PPI |
| Pixel Format | RGB vertical bars |
| Display size | 222.72(H)×125.28(V) mm |
| Outline Dim. | 243(H)×146.5(V)×3.6(D) mm |
| Treatment | Glare (Haze 0%) |
| Luminance | 200 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (Transmission) |
| Viewing Angle | TN, Normally White, Transmissive |
| View Direction | View Direction |
| Response Time | 5/11 (Typ.)(Tr/Td) ms |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Number of colors | 262K , 45% NTSC |
| Backlight type | WLED , 10K hours, with LED driver |
| Frame Rate | 60Hz |
| Designed For | Netbook PC |
| Touch Panel | Without |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Interface Type | LVDS (1 ch, 6-bit) 40 pins Connector |
| Supply voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| 10.1 inch B101AW02 V3 1024*600 for Netbook PC LCD SCREEN | |
B101AW02 V3 Payment :
1: We receive Alibaba payments and papal payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
B101AW02 V3 Shipping Detail:
1.Please confirm your ADDRESS carefully once you make the order. We will send the products to you at once after the payment is received.
2.Items are shipped from China using airmail;reach most of the countries within 15-30 business days.or by express reach most of the countries within 4-23 business days according the customs process speed.
3.Please contact us if you don't receive the products in 45 days.And please give us 3 working days for checking the undelivered package and reason.If it is our problem,we will refund the money to you.
4.We could not ship to African counties except South Africa by airmail.So if African customers want to buy these products,pleace contact us about the shipping problem in advance.
B101AW02 V3 The delivery time is approximately:
US/UK/Australia 7-14 working days.
Canada 7-25 working days.
It may take 7-20 working days for France/Spain/Germany.
Eastern Europe can take up to 16-30 working days.
It may take up to 30-50 working days for Italy/Brazil/South America.
Shipped by DHL Express (it takes 3-6 working days to arrive)
B101AW02 V3 Return:
If you receive a damaged or wrong item , please contact us via message , we will arrange return immediately. Please do not leave negative feedback or open any cases before contacting us.
Return is accepted within 30 days after receiving of the item.
When doing the return , please pack the product safely like how we do in the original package. As the screens are very fragile.Please do not use other package.
Buyer is responsible for the return shipping cost in the cases of buyer purchasing wrong products , wrong size ,etc.
B101AW02 V3 FAQ:
Q: When would you ship,IF I order B101AW02 V3?
A: The order are shipped within 1-2 working days after received the payment.
Q: How to order AUO B101AW02 V3 ?
A: We accept T/T , PAYPAL , WESTERN UNION.
Q: Can you test 10.1 inch lcd panel B101AW02 V3 before shipping?
A: Don't Worry , The B101AW02 V3 will be tested ok before shipping
Q: What happen if AUO B101AW02 V3 received can't work ?
A: Our AUO B101AW02 V3 was tested ok before shipping .If happen that , pls check all the connect cable again,If still has problems ,we accept exchange or return panel.
B101AW02 V3 Shippment & Packing
