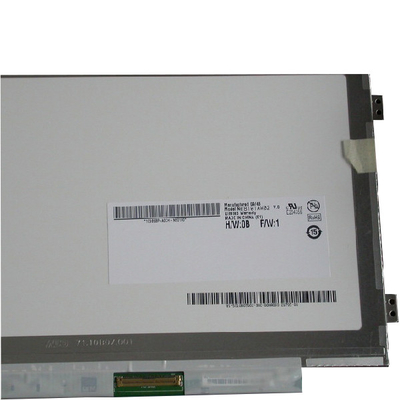

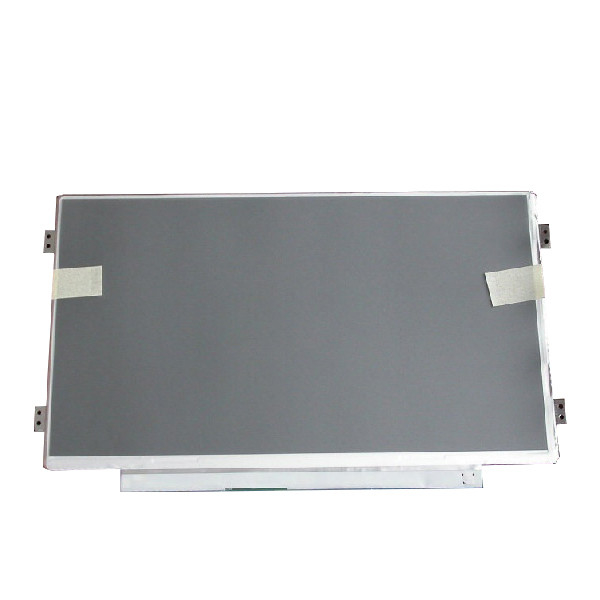

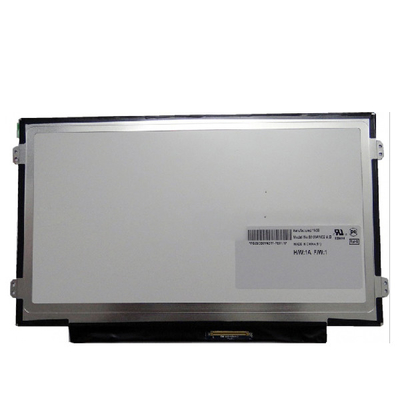

10.1 inch B101AW02 V0 1024*600 40 pins LCD SCREEN
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101AW02 V0 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101AW02 V0 | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×600 [WSVGA]117PPI | Active Area: | 222.72 × 125.28 Mm (H×V) |
| Outline Dim.: | 243 × 146.5 × 3.6 Mm (H×V×D) | Form Style: | Flat (PCBA Flat, T3.4~4.0mm) |
| Luminance: | 200 Cd/m² (Typ.) | Response Time: | 5/11 (Typ.)(Tr/Td) Ms |
| Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) | Used For: | Netbook PC |
Product Description
10.1 inch B101AW02 V0 1024*600 40 pins LCD SCREEN
B101AW02 V0 Product details :
| Brand | AUO |
| Model Name | B101AW02 V0 |
| Diagonal Size | 10.1" |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 1024(RGB)×600 [WSVGA]117PPI |
| Pixel Format | RGB Vertical Stripe |
| Display size | 222.72 × 125.28 mm (H×V) |
| Outline Dim. | 243 × 146.5 × 3.6 mm (H×V×D) |
| Surface | Glare (Haze 0%) |
| Brightness | 220 (Typ.) |
| Contrast | 400: 1 (Typ.) [Transmission] |
| Best angle | 6 o'clock |
| Operating Mode | TN, normally white display, transmissive |
| Viewing angle | 45/45/15/35 (Typ.)(CR≥10) |
| Response Time | 5/11 (Typ.)(Tr/Td) ms |
| Form Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Backlight type | WLED, 10K hours, with LED driver |
| Apply to | Netbook PC |
| Refresh rate | 60Hz |
| Touch function | No touch |
| Interface Type | LVDS (1 ch, 6-bit), connector, 40 pins |
| Supply voltage | 3.3V (Typ.) |
| Maximum | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
| 10.1 inch B101AW02 V0 1024*600 40 pins LCD SCREEN | |
B101AW02 V0 Please note that:
We recommend removal of your old screen prior to ordering.Please provide your LCD model and laptop model before purchasing.We need to reconfirm whether you purchase the correct model.
Compatible model will be sent! Maybe not the same model as in the title but they are 100% compatible!If you need an exact model, please contact us before purchasing.
Please confirm whether your LCD screen can be separated from the front cover plate of the notebook. If it can be separated, you can purchase a single LCD screen. If it cannot be separated, you need to purchase a LCD screen assembly with front cover.To avoid purchasing the wrong products, please confirm again whether you need a single LCD screen or an assembly.
B101AW02 V0 Payment :
1: We receive Alibaba payments and papal payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
B101AW02 V0 Shipping Detail:
1.Please confirm your ADDRESS carefully once you make the order. We will send the products to you at once after the payment is received.
2.Items are shipped from China using airmail;reach most of the countries within 15-30 business days.or by express reach most of the countries within 4-23 business days according the customs process speed.
3.Please contact us if you don't receive the products in 45 days.And please give us 3 working days for checking the undelivered package and reason.If it is our problem,we will refund the money to you.
4.We could not ship to African counties except South Africa by airmail.So if African customers want to buy these products,pleace contact us about the shipping problem in advance.
B101AW02 V0 The delivery time is approximately:
US/UK/Australia 7-14 working days.
Canada 7-25 working days.
It may take 7-20 working days for France/Spain/Germany.
Eastern Europe can take up to 16-30 working days.
It may take up to 30-50 working days for Italy/Brazil/South America.
Shipped by DHL Express (it takes 3-6 working days to arrive)
B101AW02 V0 FAQ:
Q: When would you ship,IF I order B101AW02 V0 now?
A: The order are shipped within 1-2 working days after received the payment.
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How to order if I don't know the lcd panel number ?
A: You can offer 2-3 photos (back-side and front-side) for your lcd panel ,So that we can check the panel to you.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
B101AW02 V0 Shippment & Packing
