AUO 10.1 inch resolution 1024x576 B101AW01 V3 lcd panel

Brand Name:	AUO
Model Number:	B101AW01 V3
MOQ:	10pcs
Price:	Negotiable
Packaging Details:	Original packaging/conventional packaging box
Payment Terms:	T/T, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Model P/N:

B101AW01 V3

Diagonal Size:

10.1"

Resolution:

1024(RGB)×576 WSVGA 116PPI

Active Area:

222.72(H)×125.28(V) Mm

Bezel Opening:

224.72(H)×127.28(V) Mm

Outline Dim.:

235(H)×143(V)×5.2(D) Mm

Luminance:

200 Cd/m² (Typ.)

Color Depth:

262K , 45% NTSC

Viewing Angle:

45/45/15/35 (Typ.) (CR≥10)

Used For:

Netbook PC

Supply Ability:

100000 Unit/Units per Month

Product Description

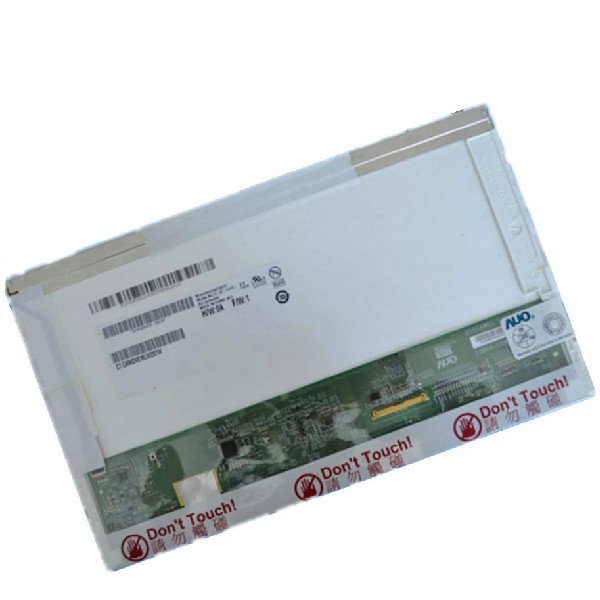

AUO 10.1 inch resolution 1024x576 B101AW01 V3 lcd panel

B101AW01 V3 Product details :

AUO LCD SCREEN B101AW01 V3
Panel Brand	AUO
Panel Model	B101AW01 V3
Panel Size	10.1"
Panel Type	a-Si TFT-LCD , LCM
Resolution	1024(RGB)×576 WSVGA 116PPI
Pixel Format	RGB Vertical Stripe
Display Area	222.72(H)×125.28(V) mm
Bezel Opening	224.72(H)×127.28(V) mm
Outline Size	235(H)×143(V)×5.2(D) mm
Surface	Matte, Hard coating (3H)
Brightness	200 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) [Transmission]
Viewing Angle	45/45/15/35 (Typ.) (CR≥10)
Display Mode	TN, Normally White, Transmissive
View Direction	6 o'clock
Response Time	8 (Typ.)(Tr+Td) ms
Display Colors	262K , 45% NTSC
Lamp Type	WLED , 10K hours, with LED driver
Frequency	60Hz
Touch Screen	Touch Panel
Designed For	Netbook PC
Signal Interface	LVDS (1 ch, 6-bit) , 40 pins , terminal
Input Voltage	3.3V (Typ.)
Environment	Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C
AUO 10.1 inch resolution 1024x576 B101AW01 V3 lcd panel

B101AW01 V3 Payment :

1: We receive ALI payments and papal payments. please make sure your address OK.

2: Payment must be made within 48 hours of the auction end time.

3: Non-Paying bidders will be reported.

B101AW01 V3 Shipping Detail:

1.Please confirm your ADDRESS carefully once you make the order. We will send the products to you at once after the payment is received.

2.Items are shipped from China using airmail;reach most of the countries within 15-30 business days.or by express reach most of the countries within 4-23 business days according the customs process speed.

3.Please contact us if you don't receive the products in 45 days.And please give us 3 working days for checking the undelivered package and reason.If it is our problem,we will refund the money to you.

4.We could not ship to African counties except South Africa by airmail.So if African customers want to buy these products,pleace contact us about the shipping problem in advance.

B101AW01 V3 The delivery time is approximately:

US/UK/Australia 7-14 working days.

Canada 7-25 working days.

It may take 7-20 working days for France/Spain/Germany.

Eastern Europe can take up to 16-30 working days.

It may take up to 30-50 working days for Italy/Brazil/South America.

Shipped by DHL Express (it takes 3-6 working days to arrive)

B101AW01 V3 FAQ:

Q: Can You declare my order of B101AW01 V3 to a lower price in commercial invoice for customs ?

A: Yes , we can . pls inform us before shipping .

Q: Can you give me a discount if I need a large quantity of B101AW01 V3 ?

A: Of course!If you make a large order, we will give you a discount.

Q: Do you accept sample orders of B101AW01 V3 ?

A: Of course!sample order is welcome !

Q: Can I pay my order of B101AW01 V3 via credit card ?

A: Yes!you can use your credit card through your Paypal account.

B101AW01 V3 Shippment & Packing

AUO 10.1 inch resolution 1024x576 B101AW01 V3 lcd panel 0
