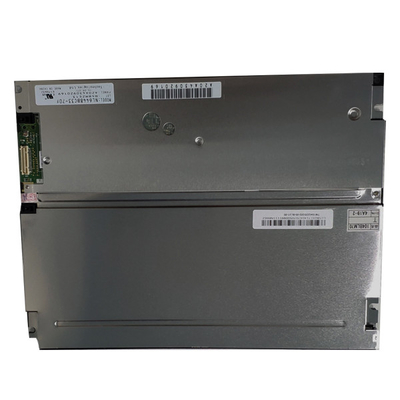

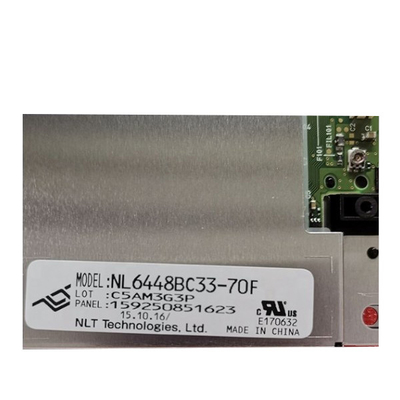

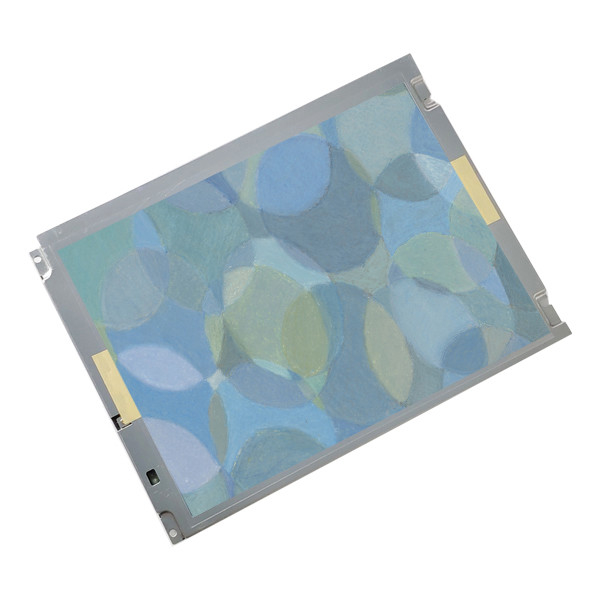

NEC NL6448BC33-70F 10.4 inch 640*480 TFT LCD Panel Display
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-70F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-70F | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243 × 185.1 × 11 (H×V×D) |
| Luminance: | 900 Cd/m² (Typ.) | Color Depth: | 262K 40% NTSC |
| Mass: | 475/500g (Typ./Max.) | Used For: | Industrial |
Product Description
NEC NL6448BC33-70F 10.4 inch 640*480 TFT LCD Panel Display
NL6448BC33-70F Product details :
| NEC LCD Screen NL6448BC33-70F | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-70F |
| Screen Size | 10.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 243 × 185.1 × 11 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Clear, Hard coating (3H) |
| Brightness (cd/m²) | 900 (Typ.) |
| Contrast | 900: 1 (Typ.) [Transmission] |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 40% NTSC |
| Backlight type | 4 strings WLED, 70K hours, no driver |
| Screen weight | 475/500g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 3.3/5.0V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NEC NL6448BC33-70F 10.4 inch 640*480 TFT LCD Panel Display | |
NL6448BC33-70F Payment :
1: We receive ALI payments and papal payments. please make sure your address OK.
2: Payment must be made within 48 hours of the auction end time.
3: Non-Paying bidders will be reported.
NL6448BC33-70F Shippment & Packing
NL6448BC33-70F Shipping Detail:
1.Please confirm your ADDRESS carefully once you make the order. We will send the products to you at once after the payment is received.
2.Items are shipped from China using airmail;reach most of the countries within 15-30 business days.or by express reach most of the countries within 4-23 business days according the customs process speed.
3.Please contact us if you don't receive the products in 45 days.And please give us 3 working days for checking the undelivered package and reason.If it is our problem,we will refund the money to you.
4.We could not ship to African counties except South Africa by airmail.So if African customers want to buy these products,pleace contact us about the shipping problem in advance.
NL6448BC33-70F The delivery time is approximately:
US/UK/Australia 7-14 working days.
Canada 7-25 working days.
It may take 7-20 working days for France/Spain/Germany.
Eastern Europe can take up to 16-30 working days.
It may take up to 30-50 working days for Italy/Brazil/South America.
Shipped by DHL Express (it takes 3-6 working days to arrive)
NL6448BC33-70F FAQ:
Q: Can I pay my order of NL6448BC33-70F via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of NL6448BC33-70F ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of NL6448BC33-70F to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90 days warranty .
