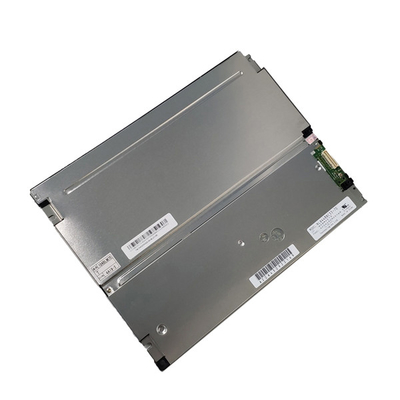

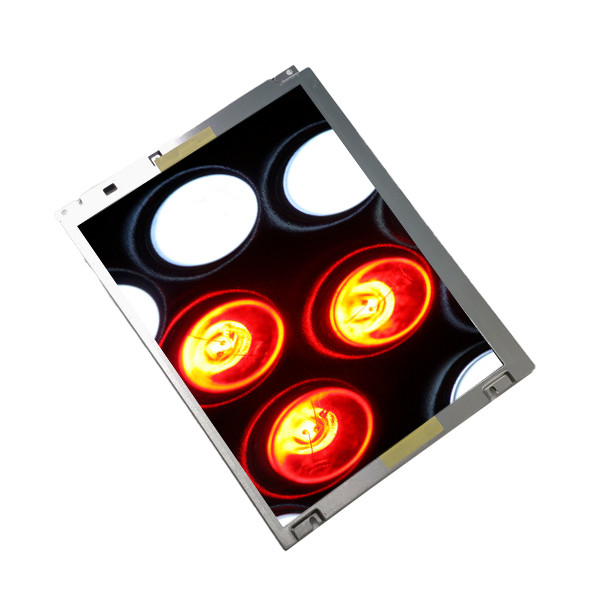

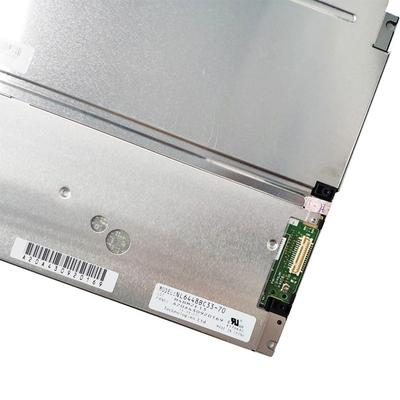

NL6448BC33-70 Brand New Original 10.4 inch 640*480 LCD Screen Display for NEC
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-70 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-70 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243(W)×185.1(H)×11(D) Mm |
| Luminance: | 450 (Typ.)(cd/m²) | Contrast Ratio: | 900 : 1 (Typ.) (TM) |
| Mass: | 475/500g (Typ./Max.) | Used For: | Industrial |
Product Description
NL6448BC33-70 Brand New Original 10.4 inch 640*480 LCD Screen Display for NEC
NL6448BC33-70 Product details :
| NEC LCD Screen NL6448BC33-70 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-70 |
| Screen Size | 10.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 243 × 185.1 × 11 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Clear, Hard coating (3H) |
| Brightness (cd/m²) | 450 (Typ.) |
| Contrast | 900: 1 (Typ.) [Transmission] |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/80 (Typ.)(CR≥10) |
| responding speed | 3/15 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 40% NTSC |
| Backlight type | 3 strings WLED, 70K hours, no driver |
| Screen weight | 475/500g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 3.3/5.0V (Typ.) |
| Maximum rating | Storage temperature: -30 ~ 80 °C Working temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC33-70 Brand New Original 10.4 inch 640*480 LCD Screen Display for NEC | |
NL6448BC33-70 Friendly Reminder :
- Installation guide is not included,We are not responsible for any damage caused by the installation of this accessory, make sure you understand how to install before ordering.
- Special skills and techniques required for proper installation. We recommend you process your repairment with an assistance of a qualified technician.
- Please make sure you understand disassembly procedure before purchase.It is strongly recommended that customers test the product before installation.
NL6448BC33-70 For Payment Detail:
1.We accept Alipay,PayPal,WesternUnion,TT here
2.All major credit cards are accepted through secure payment processor ESCROW
3.Please make sure you read the entire description and agree to the transaction brfore buying.
NL6448BC33-70 Shippment & Packing
NL6448BC33-70 Shipping and Delivery Time:
1.We ship worldwide by DHL,UPS,FedEx,EMS,TNTE-PacketHK Post,SG Post,China Post etc.
2.We guarantee to ship out within 2 working days after payment confrmation(except Holiday).
3.We only ship to confrmed order address.Your order address MUST MATCH your shipping address.
4.If you haven't received your shipment within 30 days after payment,please contact us.
We will track the shipment and get back to you as soon as possible.
NL6448BC33-70 FAQ:
Q: How long will I receive my goods NL6448BC33-70 ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Do you accept sample orders of NL6448BC33-70 ?
A: Of course!sample order is welcome !
Q: Can you give me a discount if I need a large quantity of NL6448BC33-70 ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90 days warranty .
