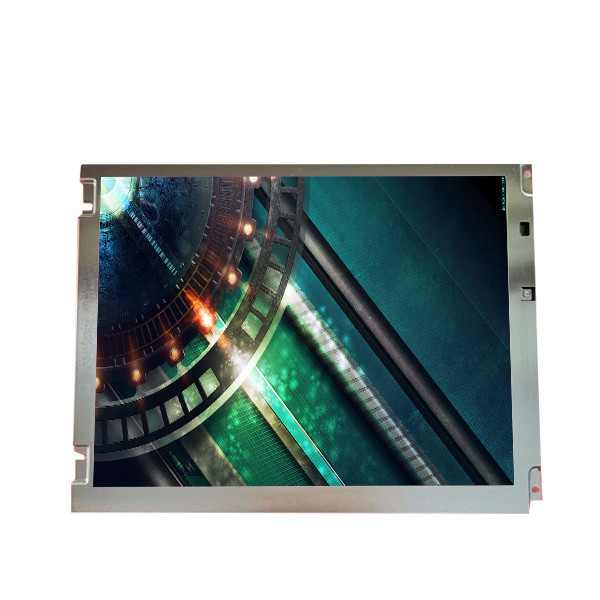

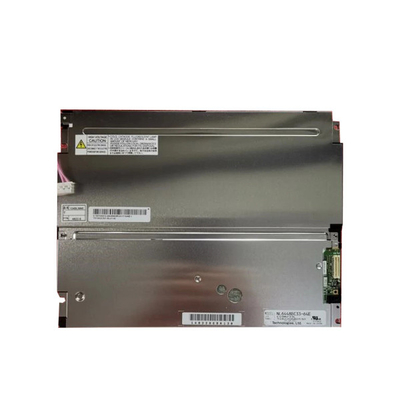

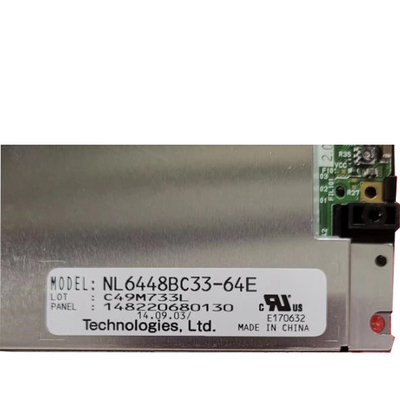

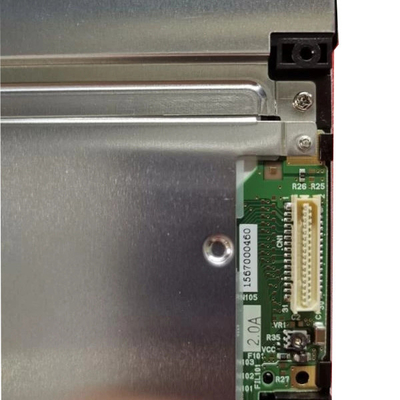

NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-64E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-64E | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243(W)×185.1(H)×11(D) Mm |
| Lamp Type: | 2 Pcs CCFL , Without Driver | Response Time: | 6/19 (Typ.)(Tr/Td) |
| Weight: | 475/500g (Typ./Max.) | Application: | Industrial |
Product Description
NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module
NL6448BC33-64E Product details :
| NEC LCD Screen NL6448BC33-64E | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-64E |
| Screen Size | 10.4 inches |
| Screen type | LCM, a-Si TFT-LCD |
| Resolution | 640(RGB)×480 [VGA] 76PPI |
| Pixel configuration | RGB vertical bar |
| Display size | 211.2 × 158.4 mm (H×V) |
| physical dimension | 243 × 185.1 × 11 mm (H×V×D) |
| Visual size | 215.4 × 161.8 mm (H×V) |
| Surface treatment | Matte, Hard coating (3H) |
| Brightness (cd/m²) | 450 (Typ.) |
| Contrast | 600: 1 (Typ.) [Transmission] |
| Best angle | 12 o'clock |
| Optical mode | TN, normally white display, transmissive |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| responding speed | 6/19 (Typ.)(Tr/Td) ms |
| Number of colors | 262K, 40% NTSC |
| Backlight type | 2 pcs CCFL, without driver |
| Screen weight | 475/500g (Typ./Max.) |
| Refresh rate | 60Hz |
| Touch function | No touch |
| signal system | CMOS (1 ch, 6-bit), connector, 31 pins |
| Supply voltage | 3.3/5.0V (Typ.) |
| Maximum rating | Storage temperature: -20 ~ 80 °C Working temperature: -10 ~ 70 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NL6448BC33-64E 10.4 inch lcd display panel 640*480 lcd screen module | |
NL6448BC33-64E Helpful Information:
To make sure you purchase a correct screen, please be sure to match size, resolution, and backlight of product. If you are uncertain, please contact us with your lcd brand/serial/model, or model number on back of the screen. Our technicians will help you to choose the correct screen.
NL6448BC33-64E Our advantages:
1: We are all own stock, with adequate supply
2: The quality of the product reached a series of certification
3: We support a variety of transportation, Hong Kong and the Chinese postal packets, EMS.DHL federal .UPS and TNT, can fully meet the different needs of the buyer.
NL6448BC33-64E Shippment & Packing
NL6448BC33-64E About Shipping:
We will test them strictly before shipping.
we will ship it in 3 working days after your paying.Buyer is responsible for customs duty fee.
It usually takes 10-45 business days for international shipping.If you don't receive the parcel for a long time,pls contact with us.
I firmly believe
We will be your best partner
NL6448BC33-64E FAQ:
Q: Can I pay my order of NL6448BC33-64E via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can You declare my order of NL6448BC33-64E to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: Can you give me a discount if I need a large quantity of NL6448BC33-64E ?
A: Of course!If you make a large order, we will give you a discount.
Q: How long is the warranty ?
A: We offer 90days warranty .
