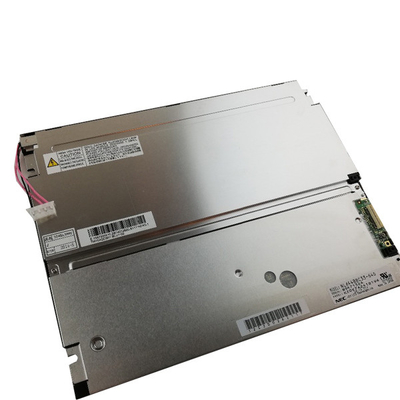

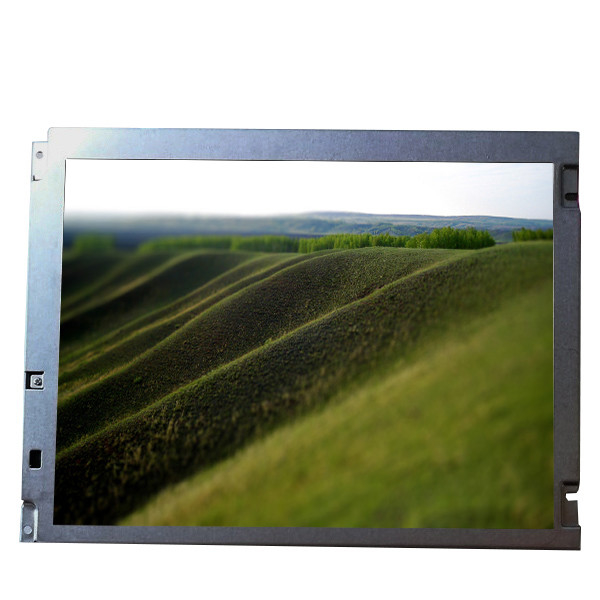

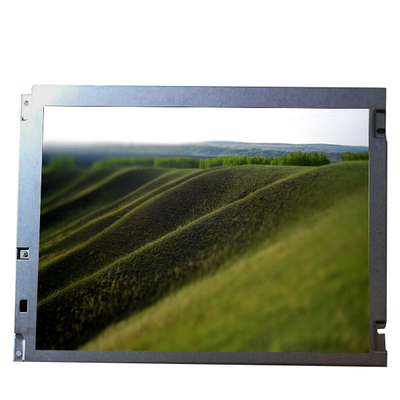

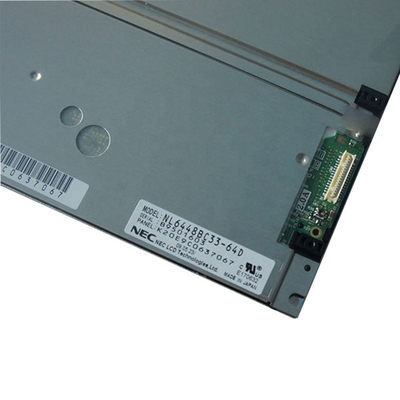

NEC NL6448BC33-64D 10.4 inch 640*480 Industrial lcd panel Display Screen in stock
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-64D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-64D | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243(W)×185.1(H)×11(D) Mm |
| View Direction: | 6 O'clock | Response Time: | 6/25 (Typ.)(Tr/Td) |
| Weight: | 475/500g (Typ./Max.) | Designed For: | Industrial |
Product Description
NEC NL6448BC33-64D 10.4 inch 640*480 Industrial lcd panel Display Screen in stock
NL6448BC33-64D Product details :
| NEC LCD Screen NL6448BC33-64D | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-64D |
| Screen Size | 10.4 inches |
| Panel type | a-Si TFT-LCD, LCM |
| Number of pixels | 640(RGB)×480, VGA, 76PPI |
| Pixel layout | RGB vertical bar |
| Display area | 211.2(W)×158.4(H) mm |
| Viewable area | 215.4(W)×161.8(H) mm |
| physical dimension | 243(W)×185.1(H) ×11(D) mm |
| Surface treatment | Matte, Hard coating (3H) |
| Panel brightness | 450 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (TM) |
| Viewing angle | 80/80/80/55 (Typ.)(CR≥10) |
| Operating mode | TN, normally white display, transmissive |
| Best perspective | 6 o'clock |
| Reaction time | 6/25 (Typ.)(Tr/Td) ms |
| Display color | 262K, 40% NTSC |
| type of light source | 2 pcs CCFL, 50K hours, without driver |
| working frequency | 60Hz |
| touch screen | No touch |
| Panel weight | 475/500g (Typ./Max.) |
| Signal interface | CMOS (1 ch, 6-bit), 31 pins, connector |
| Drive screen voltage | 3.3/5.0V (Typ.) |
| working environment | Work: -20 ~ 70 °C; Storage: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| NEC NL6448BC33-64D 10.4 inch 640*480 Industrial lcd panel Display Screen in stock | |
NL6448BC33-64D Payment:
When buying on ALI, your payments are protected by Escrow. Track your order at any stage of delivery online and feel secure that payment will only be released to the supplier after you confirm receipt of your order. With Escrow, your credit card details are never exposed.
NL6448BC33-64D Shippment & Packing
NL6448BC33-64D Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
NL6448BC33-64D Warranty :
1, We take 12 months warranty from the shipping date , no matter what quality problem it's .
2, Pls keep in touch with us , if you have any problems pls contact us immediately , we will help you to solve the problem ASAP. .
NL6448BC33-64D FAQ:
Q: If I place order now,when will you ship the goods of NL6448BC33-64D?
A: The order will be shipped within 2-3 working days after received your payment.
Q: How long is the warranty ?
A: We offer 90days warranty .
Q: How long will I receive my goods NL6448BC33-64D?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: Can I pay my order of NL6448BC33-64D via credit card ?
A: Yes!you can use your credit card through your Paypal account.
