B101AW01 V2 HW5A 1024*576 40 pins LCD display TFT Module
Product Details:
| Place of Origin: | China |
| Brand Name: | AUO |
| Model Number: | B101AW01 V2 HW5A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | B101AW01 V2 HW5A | Diagonal Size: | 10.1" |
|---|---|---|---|
| Resolution: | 1024(RGB)×576 WSVGA 116PPI | Active Area: | 222.72(H)×125.28(V) Mm |
| Outline Size: | 235(H)×143(V)×5.2(D) Mm | Viewing Angle: | 45/45/15/35 (Typ.) (CR≥10) |
| Brightness: | 200 Cd/m² (Typ.) | Contrast Ratio: | 500:1 (Typ.) (TM) |
| Screen Weight: | 262K , 45% NTSC | Designed For: | Netbook PC |
Product Description

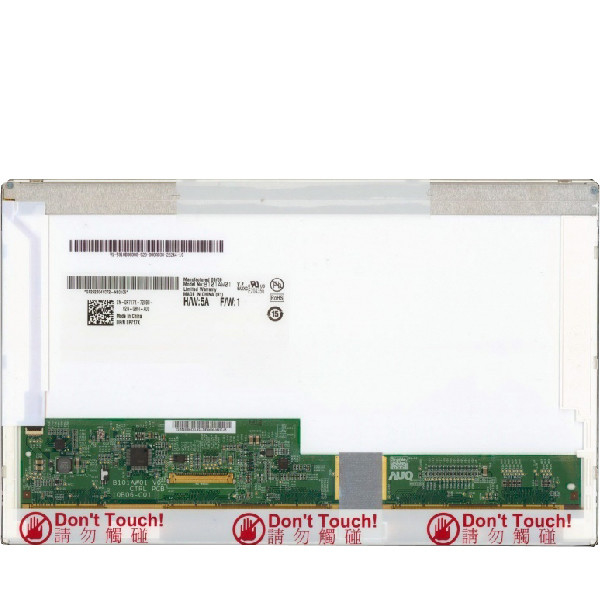

B101AW01 V2 HW5A 1024*576 40 pins LCD display TFT Module
B101AW01 V2 HW5A Product details :
| AUO LCD SCREEN B101AW01 V2 HW5A | |
| Panel Brand | AUO |
| Panel Model | B101AW01 V2 HW5A |
| Panel Size | 10.1" |
| Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1024(RGB)×576 WSVGA 116PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 222.72(H)×125.28(V) mm |
| Bezel Opening | 224.72(H)×127.28(V) mm |
| Outline Size | 235(H)×143(V)×5.2(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/15/35 (Typ.) (CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| View Direction | 6 o'clock |
| Response Time | 8 (Typ.)(Tr+Td) ms |
| Display Colors | 262K , 45% NTSC |
| Lamp Type | WLED , 10K hours , With LED Driver |
| Frequency | 60Hz |
| Designed For | Netbook PC |
| Touch Screen | Without |
| Form Style | Wedge (PCBA Bent, T≥5.2mm) |
| Signal Interface | LVDS (1 ch, 6-bit) , 40 pins , terminal |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating temperature: 0 ~ 50 °C ; Storage temperature: -20 ~ 60 °C |
| B101AW01 V2 HW5A 1024*576 40 pins LCD display TFT Module | |
B101AW01 V2 HW5A Please Note:
All LCD panels are the original brand new coming from the original factory or its distributor , the quality should meet the incoming inspection standard( IIS)
please rest assured that you will buy the best product . All of our company’s products are under strict tested. It will be under burned-in test within 48 hours .
B101AW01 V2 HW5A Shipping:
1. We will test them strictly before shipment.
2. We will only pay the shipping cost and tax for our country, if there is any shipping cost and tax in your country, you should pay for it.
3. We will send it within 3 business days after we receive the order.
B101AW01 V2 HW5A Shipment:
When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
B101AW01 V2 HW5A Returns:
We do our best to serve our customers the best that we can.We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
B101AW01 V2 HW5A Warranty & Maintenance:
We offer the 1 month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12 months free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
B101AW01 V2 HW5A Important tips:
1.All devices be tested before shipping and 100% working well.
2.Please test before installation !!! and then install the machine after the test is complete.If you have any questions, please contact us before installation. We are not responsible for any installation mistakes.
3.LCD is Fragile and easily broken or work unproperly by installation mistakes.If you are not good at replacing the LCD, please do it by a professional person or repair shop.
4.If you did not talk to us, give a bad review, which means you give up all after-sales service (including return refund)
B101AW01 V2 HW5A FAQ:
Q: How do you ship my goods B101AW01 V2 HW5A ?
A: We can shipping all over the world.via DHL,UPS,Fedex and EMS, the packaging is very safe and strong.
Q: How long is the warranty of AUOB101AW01 V2 HW5A ?
A: 90days warranty .
Q: Are you manufactory or trade company ?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can You declare my order of LCD panel glass AUOB101AW01 V2 HW5A at a very low value ?
A: Yes , we can . pls inform us before shipping .
B101AW01 V2 HW5A Shippment & Packing
