10.4 inch 640*480 a-si TFT lcd Screen panel NL6448BC33-64 for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | NEC |
| Model Number: | NL6448BC33-64 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Original packaging/conventional packaging box |
| Delivery Time: | 7 Days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 Unit/Units per Month |
|
Detail Information |
|||
| Model P/N: | NL6448BC33-64 | Diagonal Size: | 10.4" |
|---|---|---|---|
| Resolution: | 640(RGB)×480, VGA 76PPI | Active Area: | 211.2(W)×158.4(H) Mm |
| Bezel Opening: | 215.4(W)×161.8(H) Mm | Outline Dim.: | 243(H)×185.1(V) ×11(D) Mm |
| Luminance: | 450 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) (TM) |
| Weight: | 475/500g (Typ./Max.) | Designed For: | Industrial |
Product Description

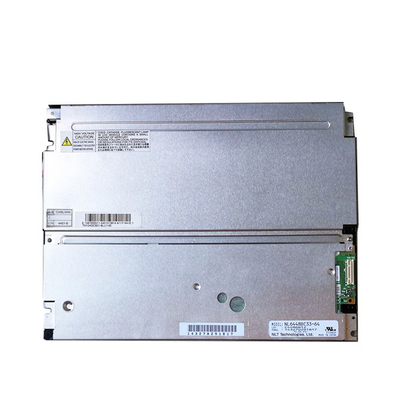

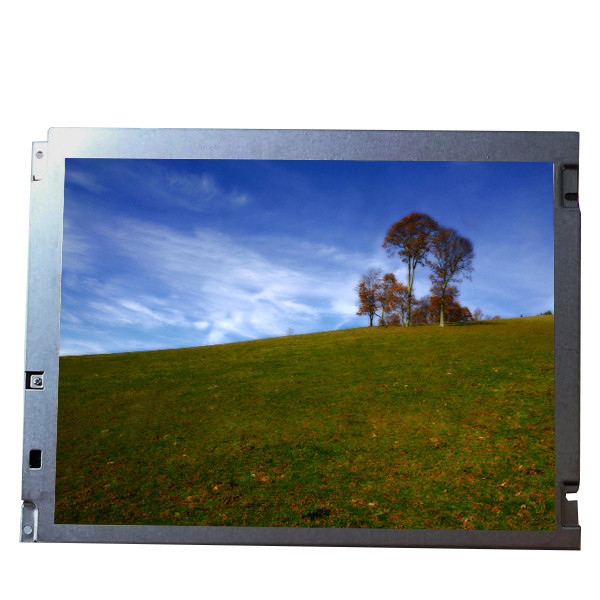

10.4 inch 640*480 a-si TFT lcd Screen panel NL6448BC33-64 for Industrial
NL6448BC33-64 Product details :
| NEC LCD Screen NL6448BC33-64 | |
|---|---|
| Manufacturer | NEC |
| Model Name | NL6448BC33-64 |
| Screen Size | 10.4 inches |
| Types of | a-Si TFT-LCD, LCD module |
| Resolution | 640(RGB)×480 VGA 76PPI |
| Pixel arrangement | RGB vertical bar |
| Display area | 211.2(H)×158.4(V) mm |
| physical dimension | 243(H)×185.1(V) ×11(T) mm |
| Open area | 215.4(H)×161.8(V) mm |
| Surface treatment | Clear, Hard coating (3H) |
| Display brightness | 450 cd/m² (Typ.) |
| Contrast | 600:1 (Typ.) (transmission) |
| Recommended perspective | 6 o'clock |
| Response time | 6/19 (Typ.)(Tr/Td) ms |
| Viewing angle | 80/80/80/60 (Typ.)(CR≥10) |
| Display mode | TN, normally white display, transmissive |
| Support color | 262K, 40% NTSC |
| type of light source | CCFL [2 pcs], 50K hours, no driver |
| weight | 475/500g (Typ./Max.) |
| Frame rate | 60Hz |
| Touch technology | No touch |

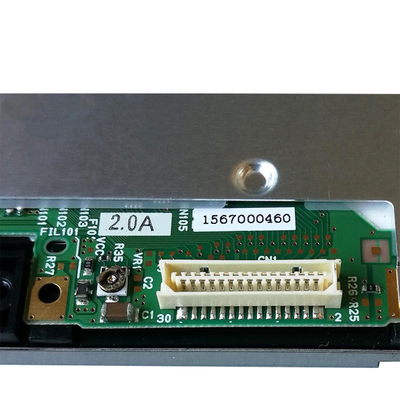

| Interface Type | 31 pins CMOS (1 ch, 6-bit), connector |
| Voltage supply | 3.3/5.0V (Typ.) |
| Application Environment | Working temperature: -20 ~ 70 °C; Storage temperature: -30 ~ 80 °C; Vibration resistance: 2.0G (19.6 m/s²) |
| 10.4 inch 640*480 a-si TFT lcd Screen panel NL6448BC33-64 for Industrial | |
